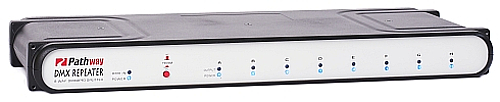

Pathway Connectivity P9015
8 Way DMX Repeater with Rear Terminal Strip

OUR PART #  P9015

Our Price: $916.84
List Price: $990.00
You save 7%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The Pathway Connectivity 9015 DMX Repeater is and eight Port repeater with rear terminal strip in a rugged cast aluminum housing that will withstand extreme abuse.

Opto splitter permits star wiring configurations while isolating and protecting connected equipment from harmful electrical faults.  The DMX Repeater is an essential part of any DMX distribution system.  Available in a wide variety of connector styles, so you’ll be sure to find one suitable for your application.

Pathway Connectivity 9015 Features:

  • Eight outputs
  • Ships with spare set of transceiver and opto-coupler chips for field repairs
  • No fuses, self resetting data links
  • Direct DMX thru
  • Termination switch
  • ETL Listed
  • 2500V Opto isolation between input and output signals
  • 250V fault protection on inputs and outputs
  • Wide range power supply (110-240VAC, 50/60Hz)
  • DMX present indicator
  • DMX512A compliant
  • Gold plated XLR contacts

Pathway Connectivity 9015 Specifications:

  • Power Supply: Universal input 100-240 VAC, 50/60 Hz
  • Isolation: 2500V opto-isolation between all ports and 250V fault protection
  • Size: 17" x 6" x 1.75" (432 x 152 x 44mm)

Pathway Connectivity P9015
8 Way DMX Repeater with Rear Terminal Strip

OUR PART #  P9015

Product Information:

The Pathway Connectivity 9015 DMX Repeater is and eight Port repeater with rear terminal strip in a rugged cast aluminum housing that will withstand extreme abuse.

Opto splitter permits star wiring configurations while isolating and protecting connected equipment from harmful electrical faults.  The DMX Repeater is an essential part of any DMX distribution system.  Available in a wide variety of connector styles, so you’ll be sure to find one suitable for your application.

Pathway Connectivity 9015 Features:

  • Eight outputs
  • Ships with spare set of transceiver and opto-coupler chips for field repairs
  • No fuses, self resetting data links
  • Direct DMX thru
  • Termination switch
  • ETL Listed
  • 2500V Opto isolation between input and output signals
  • 250V fault protection on inputs and outputs
  • Wide range power supply (110-240VAC, 50/60Hz)
  • DMX present indicator
  • DMX512A compliant
  • Gold plated XLR contacts

Pathway Connectivity 9015 Specifications:

  • Power Supply: Universal input 100-240 VAC, 50/60 Hz
  • Isolation: 2500V opto-isolation between all ports and 250V fault protection
  • Size: 17" x 6" x 1.75" (432 x 152 x 44mm)
