Juice Goose LA-100 Surge Protector for Two 70 Volt Outdoor Speakers

OUR PART #: LA-100 MFR #: LA-100

Copied to clipboard

The LA-100 from Juice Goose is a surge protector designed to protect two pairs of leads (four wires) for 70 Volt outdoor speakers. ...Read more

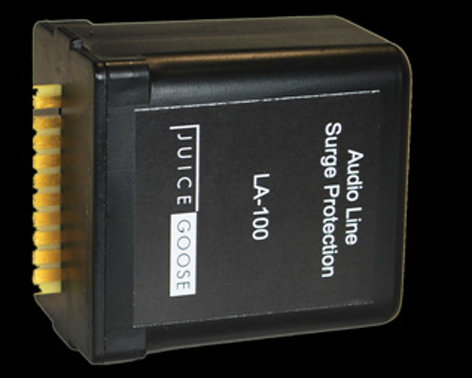

Juice Goose LA-100 Surge Protector For Two 70 Volt Outdoor Speakers Image 1
Juice Goose LA-100 Surge Protector For Two 70 Volt Outdoor Speakers
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The LA-100 from Juice Goose is a surge protector designed to protect two pairs of leads (four wires) for 70 Volt outdoor speakers. The unit is rated for operating currents up to five amps (350 watts at 70 volts) for each of two wire pairs. For higher current requirements, terminals may be bridged to protect a single pair of speaker leads with maximum current up to ten amps.

The LA-100 is designed with three stage component protection - varistors (MOV), wire wound inductors, and silicone avalanche diodes (SAD) - to provide sub nanosecond response to surges up to 5,000 amps. This design is tuned to have ultra low impedance of only 0.02 Ohms per wire pair.

The LA-100 also features a gold plated circuit card designed to mount into the gold plated female connector on the PCB-1B base (sold separately). The base assembly can be mounted to any stable, flat surface. Whenever the protection module needs replacement, simply unplug the module from the base and replace it with a new one.

Juice Goose LA-100 Surge Protector Specifications:

  • Peak Surge Current (10 times) 8x20us: 5 kA
  • Life Expectancy 8x20us (2 kA): 50 occurrences
  • Response Time: < 1 ns
  • Resistance: 0.02 Ohms
  • Series Inductance: 136 uh per pair
  • Terminal Wire Size: 26 tp 10 AWG
