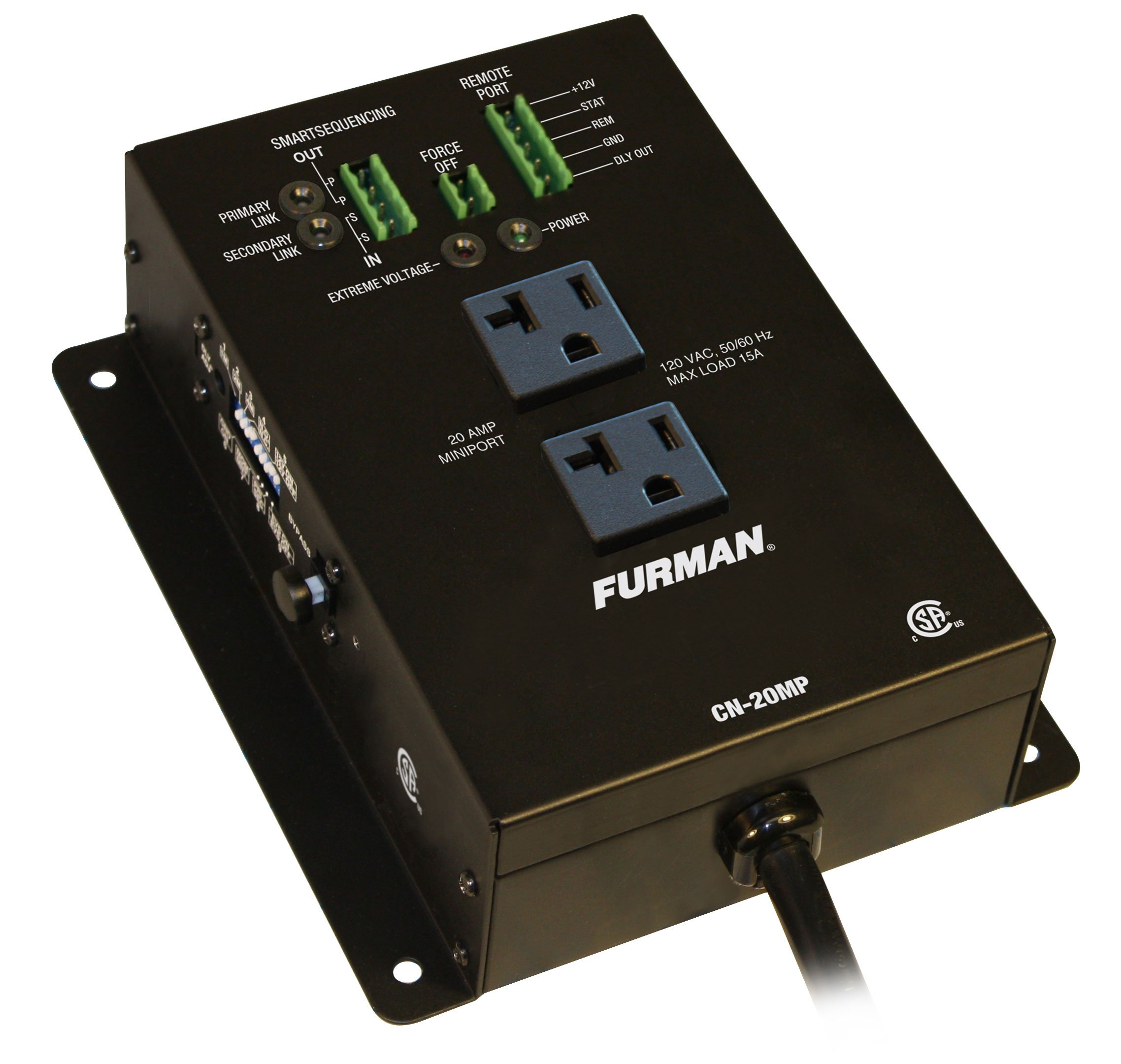

Furman CN-20MP
Contractor Series 20 Amp MiniPort

OUR PART #:  CN-20MP

Furman’s CN-20MP Contractor Series MiniPort extends the benefits of SmartSequencing™ to electronics outside of the equipment rack...
Learn More
Our Price: $249.00
List Price: $249.95
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Furman CN-20MP
Qty:
In Stock

Similar Products

Furman’s CN-20MP Contractor Series MiniPort extends the benefits of SmartSequencingâ„¢ to electronics outside of the equipment rack, providing tremendous flexibility to any installation scenario. The unit may be daisy-chained and fully controlled via a Furman SmartSequencerâ„¢, legacy Furman sequencer, third-party sequencers, via the Internet (with BB-RS232 adaptor (sold separately) and SmartSequencer), and/or control and automation systems.

The CN-20MP features DIP switches and a potentiometer, allowing customization of settings such as sequencing delays, 12V on/off, and more. Security covers are provided to prevent unauthorized personnel from tampering with the DIP switches, and the unit can shut itself off automatically when triggered by a fire alarm.

Furman CN-20MP Contractor Series 20 Amp MiniPort Features:

  • SmartSequencing: SmartSequencing allows bidirectional, safe sequenced power up/down operations via the push of abutton or turn of a key
  • Voltage Protection: Extreme Voltage Shutdown (EVS) safeguards from catastrophic under-voltage (under 80V sustained) or over-voltage (over 145Vsustained) conditions. The EVS feature can be selectively enabled or disabled according to the preference of the user
  • BlueBOLT Compatible®: IP Control (Telnet or cloud-based BlueBOLT) via SmartSequencing (when connected to Furman's CN-1800S/CN-2400S (sold separately) with BB-RS232 Adaptor)
  • Diagnostic Lights: Diagnostic lights provide valuable system information including power quality
  • 20 Amp Output Current: 20 amp maximum current capacity
  • DIP Switch Customization: DIP switches and potentiometer allows customization of settings such as sequencing delays, 12V on/off, and more. Security covers are provided to prevent unauthorized personnel from tampering with DIP switches

Furman CN-20MP Contractor Series 20 Amp MiniPort Specifications:

  • AC Voltage Input Range: 90-139 VAC, 50/60 Hz
  • Maximum AC Current Rating: 20 Amps (No Breaker)
  • AC Cord: 3/12 AWG, 10 feet, black, fixed, NEMA 5-20P plug
  • AC Receptacles: 2 NEMA 5-20R's (1 duplex)
  • Surge/Under-Overvoltage Protection:
    • AC Undervoltage Protection: EVS, 77VAC+/-3VAC
    • AC Overvoltage Protection: EVS, 140VAC+/-5VAC
    • AC Overvoltage Reset Modes: Enabled and disabled (configurable via DIP Switch #9)
  • Operating Temperature Range: 5ºC (40ºF) to 40ºC (105ºF)
  • Humidity Range: <90% rH (Relative Humidity)
  • User Interface:
    • Circuit Breaker: No Breaker
    • Front panel diagnostic indicators (LED): Power, Extreme Voltage, Primary Link, Secondary Link
    • Side Panel DIP Switch Features (with security cover): 1 Minute Delay, 2 Minute Delay, 4 Minute Delay, Force Off NO/NC, 12V Mode On/Off GND Mode On,Momentary/Maintained, Primary/Secondary, EVS Reset Auto/Manual
    • Side Panel Potentiometer allows fine tune delay adjustments
  • Control/Status/Triggering (Rear Panel):
    • Remote Terminal: +5-30VDC In, 12VDC (12mA) Out
    • SmartSequencing: Phoenix-type 4-Pin Connector, Screw Terminals, Primary & Secondary Links (Current Loop - 1000 ft nominal
    • Remote Terminal: Phoenix-type 5-Pin Connector With Screw Terminals; +12V, STAT, REM, GND, DLY_OUT (Class 1 Wiring
    • Force Off: Phoenix-type 2-Pin Connector With Screw Terminals, FORCE OFF (Class 1 Wiring)
    • RS-232 Compatible: Yes, indirectly, when connected via SmartSequencing to a Furman Smart Sequencer with an RS-232 port
    • IP Accessibility: Optional IP control via Telnet, HTTP, or BlueBOLT® when used in conjunction with SmartSequencing
    • Voltmeter: Available with SmartSequencing Ethernet option, ± 2VAC accuracy
    • Ammeter: Available with SmartSequencing Ethernet option, ±1A accuracy
  • Power Consumption (No Load): 10 Watts
  • Safety Agency: CSA, RoHS Compliant
