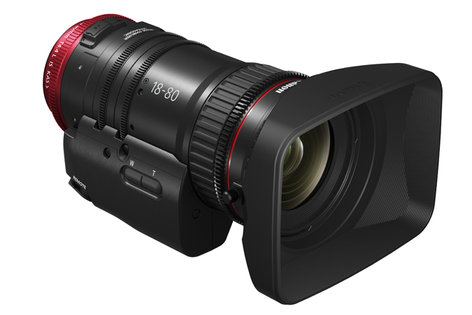

Canon COMPACT-SERVO
18-80mm T4.4 EF Mount Lens for Cinema EOS Digital Cameras

OUR PART #:  1714C002

Canon's COMPACT-SERVO 18-80mm T4.4 EF-mount lens is both compact and only 2.7 lbs in weight allowing outstanding mobility.
Learn More
Our Price: $5,225.00
List Price: $5,500.00
You save 5%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Canon COMPACT-SERVO
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Canon's COMPACT-SERVO 18-80mm T4.4 EF-mount lens is both compact and only 2.7 lbs in weight allowing outstanding mobility. The COMPACT-SERVO has a zoom lens with full external servo control for drama, documentary and other video productions. The video features and functionality of the COMPACT-SERVO 18-80mm T4.4 EF-mount lens make it an ideal choice for a wide range of professional video shooting environments.

Designed to shoot video, this lens can be ideal for the cinematographer moving up from Canon's EF lenses, combining the functionality of Canon's EF lenses with the 4K optical performance, usability and video shooting features of Canon's Cinema lenses. Acknowledging the need to control zoom, focus and iris/aperture, Canon has developed this zoom lens with full external servo control, and an optional ZSG-C10 grip designed exclusively for this lens makes it easier to operate the lens, helping to support a wider range of shooting styles such as shoulder mount ENG style.

Canon COMPACT-SERVO 18-80mm T4.4 EF Lens Features:

  • Broad Focal Length Coverage:
    • Covering the commonly used focal length, 18mm to 80mm
    • Maintains focus throughout the zoom range
    • Performance that is stable across the entire zoom range
    • Brightness across the entire zoom range constant at T4.4 (equal to F4.0)
  • High Level 4K Optical Performance:
    • Optical performance that is commensurate with 4K cameras with S35 format sensors
    • Same Color Characteristics as the existing Cinema Lens lines
  • Iris Mechanism for Motion Picture:
    • Seamless Control Capability with iris ring
    • 9-Blade Iris
    • Iris Closing
    • Auto Iris available
  • Minimized Focus Breathing
  • Newly Developed Servo Drive Unit:
    • Servo Control Capability for all zoom, focus and iris
    • Power provided via camera mount
    • Compatible with broadcast style servo lens controllers
    • Optional ZSG-C10 Grip for shoulder mount applications
  • Compact (182.3mm in Length) and Lightweight (2.65lbs.) for Increased Mobility and Versatility
  • Supports a Wide Range of Optional Accessories
  • Auto Focus Function:
    • Continuous AF
    • One-Shot AF
    • Focus Guide
  • Image Stabilization
  • Other EF Functions
    • Remote Control of Zoom, Focus and Iris via Camera
    • REC Start/Stop from ZSG-C10 Grip Unit
    • Peripheral Illumination Correction
    • Chromatic Aberration Correction
    • Lens Meta Data Record
    • T Number/F Number Display Select

Canon COMPACT-SERVO 18-80mm T4.4 EF Lens Specifications:

  • Model Name: CN-E18-80mm T4.4 L IS KAS S
  • Model SKU: 1714C002
  • Mount: EF
  • Image Coverage: Super 35
  • Image Circle: 31.4mm
  • Focal Length: 18 - 80mm
  • Zoom Ratio: 4.4x
  • Maximum Relative Aperture: T4.4 (F4) at 18 - 80mm
  • Angular Field of View:
    • 1.78 : 1 (24.6 x 13.8mm):
      • 68.7°× 41.9°
      • 17.5°× 9.9°
    • 1.9 : 1 (26.2 x 13.8mm):
      • 72.1°× 41.9°
      • 18.6°× 9.9°
  • Minimum Object Distance from Image Sensor: 0.5m (1.7")
  • Object Dimensions at M.O.D.:
    • 1.78 : 1 (24.6×13.8mm):
      • 43.4 × 24.3cm at 18mm
      • 9.5 × 5.3cm at 80mm
    • 1.9 : 1 (26.2×13.8mm):
      • 46.2 × 24.3cm at 18mm
      • 10.1 × 5.3cm at 80mm
  • Front Diameter: F84mm
  • Approx. Length: 182.3mm
  • Filter Size: F77mm
  • Approx. Mass with ZSG-C10: 1.2kg (2.65 lbs.)
  • Pitch of Follow Focus Gear: 0.8
