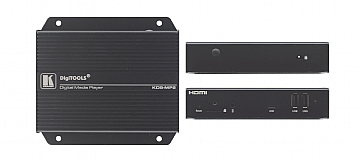

Kramer KDS-MP2
Digital Signage Media Player

OUR PART #:  KDS-MP2

The KDS-MP2 from Kramer is a high-quality LAN-based digital signage media player.
Learn More
Our Price: $716.00
List Price: $895.00
You save 20%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Kramer KDS-MP2
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The KDS-MP2 from Kramer is a high-quality LAN-based digital signage media player. The unit receives content streamed from the LAN, saved in its internal memory or from an external USB memory stick and displays it with image quality of up to 1080p HD via HDMI output.

Kramer KDS-MP2 Media Player Includes:

  • AC adapter
  • HDMI cable
  • 4 Velcro (2 sets)

Kramer KDS-MP2 Media Player Features:

  • 1080p Full HD Support - Resolutions up to WUXGA and 1080p
  • High Quality HDMI Video & Audio
  • Codec Format Support - MPEG-1, MPEG-2, MPEG L2, MP3, H.264/MPEG-4, and VC-1
  • Memory Options - 8GB internal
  • NTP Client - For time synchronization
  • Integrated SMIL Control - CMS device management in LAN environments
  • SMIL 3.0 Instruction (Sub-Set) Support
  • CMS Device Management - In LAN environments using the integrated SMIL control
  • Perforated Side Panel - For efficient heat dissipation
  • VESA Standard Mounting Bracket - For mounting on-wall, inside a cabinet or to the VESA standard screw holes on the rear panel of a display
  • Media Manager Software - For easy, powerful and versatile management of digital signage content via a PC
  • Media-Manager Multi-language Support - Ready-made templates for screen layouts, logos, tickers and widgets
  • Compact DigiTOOLS® - Built-in mounting bracket

Kramer KDS-MP2 Media Player Specifications:

  • I/O Connectors: 1 HDMI, 2 USB 2.0, 1 Ethernet on a RJ-45 connector, 1 unbalanced stereo audio on a 3.5mm
    mini jack, micro SD card slot
  • Video Format: POPAI Screen Media Standard
  • Support:
    • S6 (MPEG-1 SIF, 3Mbps CBR)
    • S7 (MPEG-1 480p, 10Mbps CBR)
    • S8 (MPEG-1 720p, 15Mbps CBR)
    • S9 (MPEG-2 480p, 6Mbps CBR)
    • S10 (MPEG-2 720p, 12Mbps CBR)
    • S11 (MPEG-4 AVC, 480p, 6Mbps CBR)
    • S12 (MPEG-4 AVC, 720p, 10Mbps CBR)
    • E4 (VC-1/WMV9, MP@ML, 720p)
    • E7 (MPEG-4 ASP, 480p, 10Mbps CBR)
    • E8 (MPEG-4 AVC, 1080p, 10Mbps CBR)
  • Image Format: POPAI Screen Media Standards
  • Support:
    • S1 (JPEG 480p baseline)
    • S2 (JPEG 720p baseline)
    • S3 (JPEG 1080p baseline)
    • E1 (PNG 24bpp+alpha, 480p)
    • E2 (PNG 24bpp+alpha, 720p)
    • E3 (PNG 24bpp+alpha, 1080p)
  • Audio Codec: POPAI Screen Media Standards
  • Support:
    • S4 (MPEG L2 audio)
    • S5 (MP3 audio, 320Kbps)
  • Dynamic Content:
    • W3C HTML5 (HTML, CSS, JavaScript)
    • W3C SMIL 3.0 instructions (sub-set)
  • Indicators: Power(green), Status(orange)
  • Local Storage:
    • 8 GB on-board flash memory (up to 6hrs of typical 720p video @3Mbps)
    • Micro SD card expansion slot
  • Power Requirement: 12V 1.5A DC
  • Power Consumption: 6W
  • Operating Temperature: 0° to 45°C (32° to 113°F)
  • Storage Temperature: -40° to +70°C (-40° to 158°F)
  • Humidity: 10 – 85% @40°C, 32° to 104°F non-condensing
  • Dimensions: 167mm x 118.8mm x 24.5mm (6.57" x 4.67" x 0.96")
  • Weight: 0.275kg (0.61lbs)
  • Safety: UL/FCC/CE/CCC/C-Tick/VCCI certified power supplies
  • Certifications: CE/FCC/VCCI/TELEC/CCC/IC
  • Warranty: One-year limited parts and labor
