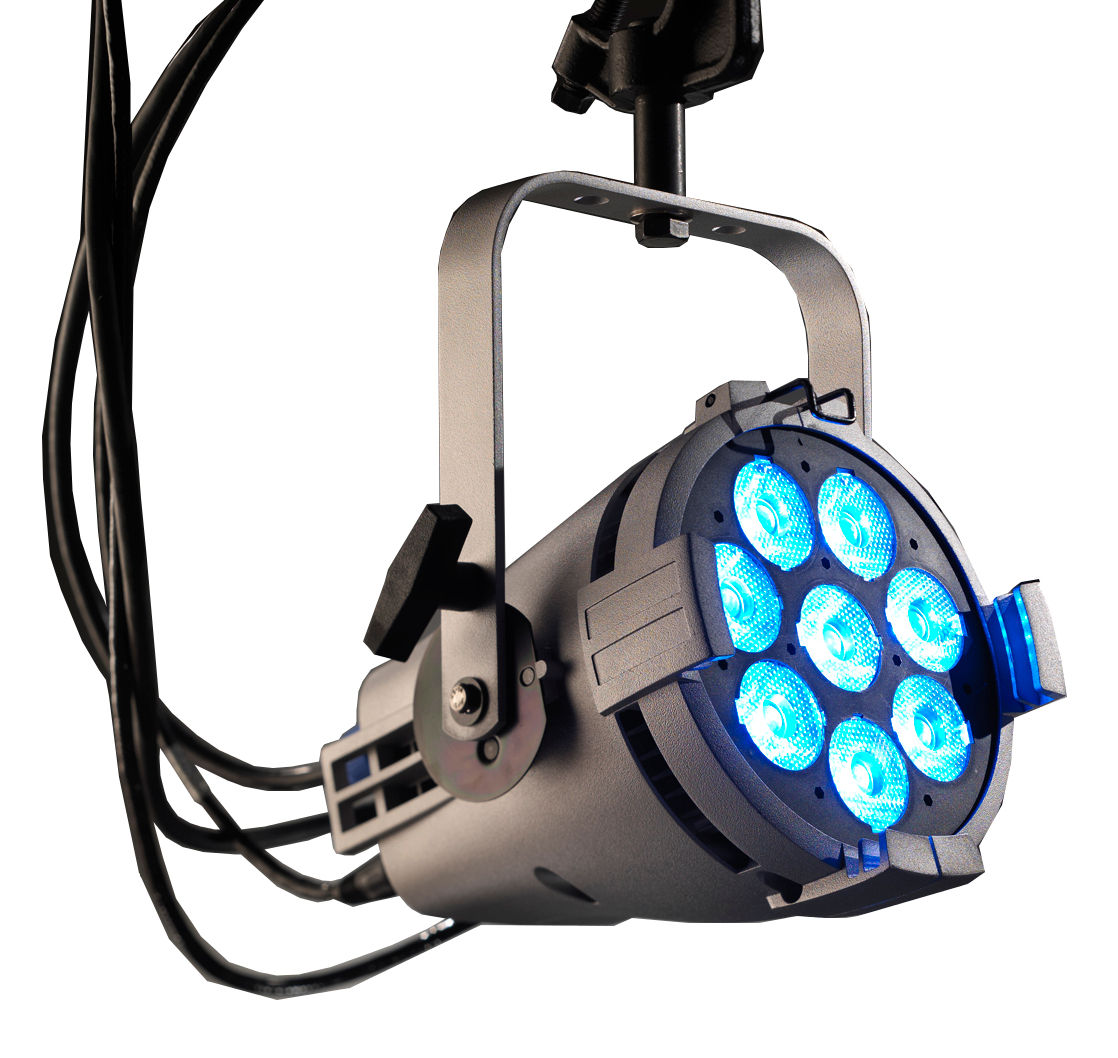

ETC/Elec Theatre Controls CSPARDB-1-A ColorSource PAR
with Dark Blue LEDs, White Case and Edison Connector

OUR PART #:  CSPARDB-1-A

The ColorSource CSPARDB-1-A Deep Blue LED luminaire was crafted by lighting experts.
Learn More
Our Price: $905.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

ETC/Elec Theatre Controls CSPARDB-1-A ColorSource PAR
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The ColorSource CSPARDB-1-A Deep Blue LED luminaire was crafted by lighting experts.  It is easy to use - with or without a lighting desk - and lives up to ETC's high standards for quality.  ETC's ColorSource Deep Blue replaces those blue LEDs with a deeper 'Royal Blue' (indigo) LED.

NOTE: Actual Product is in WHITE Casing

Applications:

  • Houses of worship
  • Universities and schools
  • Hospitality
  • Retail
  • Exhibition centers
  • Meeting rooms
  • Clubs
  • Cafetoriums

ETC CSPARDB-1-A ColorSource Par Features:

  • ETC’s new RGB-L chipset (Red, Green, Blue and Lime)
  • Homogenized optics
  • Simple user interface with 7-segment display
  • PowerCon in and thru
  • DMX/RDM in and thru (5-pin)
  • LED droop compensation
  • Optically calibrated
  • Tour-ready, aluminum housing

ETC CSPARDB-1-A ColorSource Par Specifications:

  • General:
    • Eight RGB-L chipset color-mixing wash luminaire
    • ETL Listed to UL1573, the standard for stage and studio lighting units
    • IP20-rated for indoor use
    • Power- and DMX-in/thru connections for easy setup
    • Simple 7-segment, three-button interface with easy access to 12 customizable presets and five sequences
  • Physical:
    • Rugged, die-cast, all-metal housing
    • Easy-access slots for secondary lenses and standard 7.5” PAR accessories
    • Available in black (standard), white or silver (optional) or custom colors (contact factory)
    • Hanging yoke included
  • Electrical:
    • 100VAC to 240VAC 50/60Hz universal power input
    • PowerCon in and thru connections
    • Up to nine luminaires (15A max) may be linked via power thru connector (10 luminaires total per circuit) when used with R20 relay module or Unison® Echo Relay Panel. Consult breaker trip curves when used with other equipment. Requires power from a non-dimmable source
    • Inrush
      • 120V: 35A (First half-cycle)
      • 240V: 49A (First half-cycle)
  • LED:
    • 20,000-hour LED life (20,000 hours at 70% intensity)
    • 40 Luxeon® Z LED emitters (five per optic)
  • Color:
    • Exclusive RGB-L Color array
    • Brightness and color range unlike any other 4-color system
    • Droop compensation maintains color accuracy during use
    • Optically calibrated to ensure consistency across fixture
  • Optical:
    • Primary field angle of 24.9° and beam angle of 14.5°
    • Secondary lenses available for multiple beam-spread options
    • Homoginized optics for a consistent, smooth beam
    • Refer to accessories charts for lenses available
  • Control:
    • DMX512 in and thru via five-pin XLR (termination required)
    • RGB control (See DMX control table for additional information)
    • 15-bit virtual dimming engine provides smooth, high-quality theatrical fades
    • RDM functionality for address and setting changes
    • Local control of presets (12) and sequences (5)
  • Thermal:
    • Ambient operating temperature of 32° to 104°F (0° to 40°C)
    • Active electronic thermal management for thermal droop-free operation
    • Variable-speed fan
    • Fixture is designed for continuous operation up to 104°F (40°C) ambient temperature and requires free flow of air around fixture housing
  • All-metal die-cast housing
  • White coating
  • Power supply, cooling and electronics are integral to each unit
  • Utilizes thermal mangement systems to maintain LED life to an average of 70% after 20,000 hours
  • Equipped with 100V to 240V 50/60 Hz internal power supply
  • Uses minumum of 40 LED emitters
  • Has Edison connector

NOTE: See Attached for Product Features and Specifications
