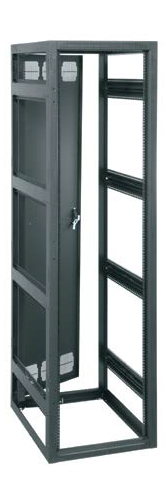

Middle Atlantic Products BGR-45SA-27
27" Deep, 45 RU BGR-SA Series Rack Enclosure in Black

OUR PART #:  BGR-45SA-27

The "Next Generation" Rack you've been looking for.
Learn More
Our Price: $1,266.00
List Price: $1,688.00
You save 25%!
Write the first review.
Middle Atlantic Products BGR-45SA-27
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The "Next Generation" Rack you've been looking for. Middle Atlantic Products' BGR-45SA-27 enclosure, part of their BGR-SA series of rack enclosures, provides the most space efficiency and strength available, plus the very latest options offering installation flexibility. This stand-alone version comes with fixed vented side panels.

BGR series rack enclosures provide more usable rackspace, have higher weight capacities, and incorporate more functionality than any other rack system on the market. Middle Atlantic Products' revolutionary patent-pending Lever Lock™ system provides you tool-free installation of cable management accessories. Other options include problem-solving extender bays and brush grommet rear doors (sold separately).

Middle Atlantic Products' BGR-45SA-27 Features:

  • Breakthrough design provides high strength without extra weight
  • Fixed solid sides for security and to control airflow
  • Accepts Lever Lock™ system tool free cable management accessories
  • Accepts extender bay to add 3” of useable depth to the front or rear at any time
  • Accepts brush grommet rear door kit for a large cable passage without fishing
  • Wide open top and bottom offer many cabling and cooling options
  • Standard front and rear adjustable 10-32 threaded rackrail with numbered spaces
  • Includes standard vented rear door that accepts optional fans

Middle Atlantic Products' BGR-45SA-27 Key Specifications:

  • General:
    • Finish Type: Black Powder Coat
    • UL Standards Tested: UL1678
    • Listing Agencies/Third Party Information
    • ASCE: 7-10
    • RoHS: Yes
    • Greenguard: Yes
    • UL Listing No: E173107
  • Physical:
    • Dimensions:
      • Overall: 82-7/8" H x 23" W x 27" D
      • Usable Depth: 24.4"
      • Usable Height: 78.875"
    • Capacity Weight (US): 12,000 lbs
    • Primary Package Weight (US): 194 lbs
    • Rack Units: 45
  • Technical:
    • Rackrail Type: 10-32
    • Seismic Load Capacity: 1,175 lbs
    • UL Load Capacity: 3,000 lbs
    • Material: Steel
    • Mounting: Horizontal
    • Seismic Certified: Yes
