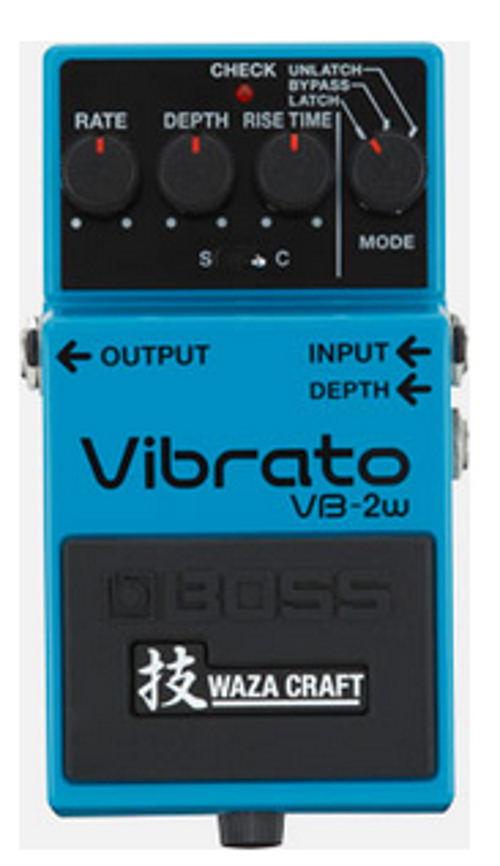

Boss VB-2W Waza Craft Vibrato Guitar Pedal

Ahead of its time when it debuted in 1982, the BOSS VB-2 Vibrato has been rediscovered by modern players looking to create unique guitar textures with stompbox effects. Thanks to its expressive, one-of-a-kind sound, this rare pedal has gone on to become one of the most valuable BOSS effects in the vintage market. Now, the progressive spirit of the VB-2 has been reborn as the Waza Craft VB-2W. Using all-analog circuitry, the VB-2W authentically reproduces the true pitch-shifted vibrato of the original pedal, and also adds an innovative new vibrato mode and real-time control function for enhanced expression.

BOSS VB-2W Includes:

• Owner's Manual
• Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTE," and "Information")
• Alkaline battery (9V, 6LR61)

BOSS VB-2W Features:

• Premium edition Waza Craft pedal delivers the ultimate BOSS tone experience
• Custom mode features a totally new vibrato sound with unique filter wave
• Standard mode provides a true reproduction of the vintage VB-2 Vibrato sound
• All-analog circuit with BBD (bucket brigade) vibrato line
• Control the effect depth in real time with an optional expression pedal
• Rise Time knob to control the initial onset of the vibrato effect
• Unlatch mode activates the effect only while pressing the pedal, ideal for adding vibrato to specific notes and chords
• Bypass mode takes the BBD out of the signal path to eliminate latency when the effect is off
• BOSS five-year warranty

BOSS VB-2W Specifications:

• Three modes:
  • Latch
  • Unlatch
  • Bypass
• Nominal Input Level: -20 dBu
• Input Impedance: 1 M ohm
• Nominal Output Level: -20 dBu
• Output Impedance: 1 k ohm
• Recommended Load Impedance: 10 k ohms or greater
• Bypass: Buffered bypass
• Controls:
  • Pedal switch
  • Standard/Custom switch
  • Rate knob
  • Depth knob
  • Rise Time knob
  • Mode knob
• Indicator: CHECK indicator (Serves also as battery check indicator)
• Connectors:
  • Input jack
  • Output jack
  • Depth jack
  • DC In jack
• Power Supply:
  • Alkaline battery (9V, 6LR61) or Carbon-zinc battery (9V, 6F22)
  • AC adaptor (sold separately)
• Current Draw: 35 mA
• Expected battery life under continuous use (These figures will vary depending on the actual conditions of use.):
  • Alkaline: Approx. 22 hours
  • Carbon: Approx. 4 hours
• Options (sold separately):
  • AC adaptor: PSA series
  • Expression Pedal: FV-500H, FV-500L, Roland EV-5
• Dimensions (WxDxH): 2 7/8" x 5 1/8" x 23/8" (73 x 129 x 59mm)
• Weight (including battery): 1 lb (450g)
