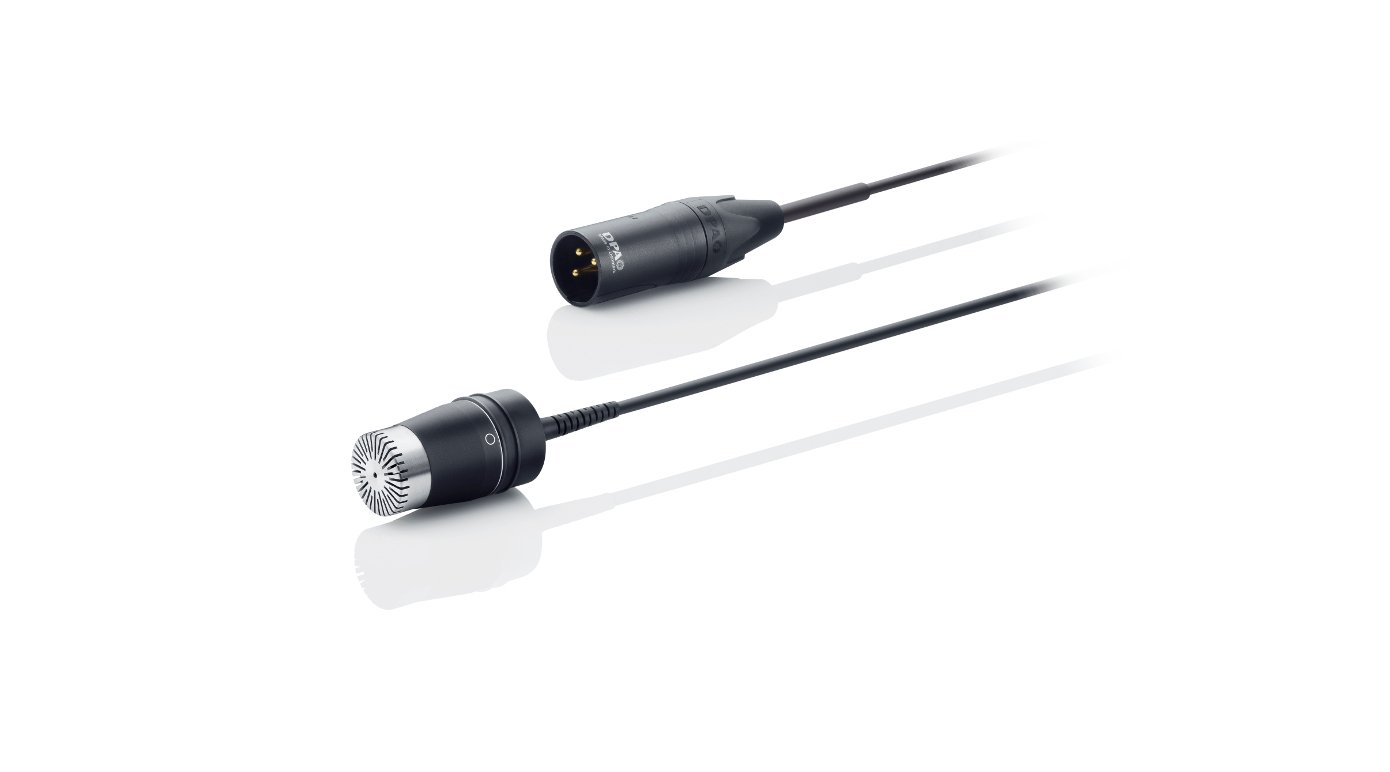

DPA Microphones 4006-ER
Onmidirectional Microphone With Rear Cable

OUR PART #:  4006-ER

The DPA Microphones 4006-ER features an integrated cable solution with rear cable entry. These microphones are particularly popular in concert halls.
Learn More
Our Price: $1,959.95

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

DPA Microphones 4006-ER
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The DPA Microphones 4006-ER features an integrated cable solution with rear cable entry. These microphones are particularly popular in concert halls. The microphone can be mounted, hung or concealed to create clean, transparent recordings. The SM4000 Suspension Mount is included in the package. This allows the microphone to be hung from the ceiling to create precision spot-miking of orchestra sections or ambience atmosphere.

The MMC4006 Omnidirectional Microphone Capsule offers total transparency in any recording situation. It picks up incredible detail and depth of sound. The definition of its high-frequency characteristics across a wide range of instruments is impressive. It offers natural sound, high sensitivity, low noise-floor and extremely linear frequency response from 10 to 20 kHz (+/- 2 dB).

DPA Microphones 4006-ER Features:

  • Ultra-compact recording mic for hanging applications
  • Full-bodied sound with minimal visual impact
  • Legendary recording reference capsule
  • Modular flexibility

DPA Microphones 4006-ER Specifications:

  • Directional pattern: Omnidirectional
  • Principle of operation: Pressure
  • Cartridge type: Pre-polarized condenser
  • Frequency range: 10 Hz - 20 kHz
  • Frequency range, +/- 2 dB: 20 Hz - 20 kHz
  • Sensitivity, nominal, +/- 2 dB at 250 Hz: 40 mV/Pa; -28 dB re. 1 V/Pa
  • Equivalent noise level, A-weighted: Typ. 15 dB(A) re. 20 µPa (max. 17 dB(A))
  • S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 79 dB(A)
  • Total Harmonic Distortion (THD): < 1 % up to 132 dB SPL peak
  • Dynamic range: Typ. 117 dB
  • Max. SPL, peak before clipping: 132 dB
  • Output impedance: 100 Ohms
  • Minimum load impedance: 2 kOhms
  • Cable drive capability: 100 m (328 ft)
  • Output balance principle: Impedance balancing
  • Common Mode Rejection Ratio (CMRR): > 40 dB
  • Power supply (for full specifications): 48 V Phantom power (+/- 4 V)
  • Current consumption: 3.5 mA
  • Connector: XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
  • Color: Matte black
  • Weight: 114g (4 oz)
  • Microphone diameter: 16-19 mm (0.6 - 0.75 in)
  • Capsule diameter: 16 mm (0.6 in)
  • Microphone length: 35 mm (1.38 in)
  • Output voltage, RMS: 2.2 V
  • Polarity: +V at Pin 2 for positive sound pressure
  • Temperature range: -40 to 45 °C (-40 to 113 °F)
  • Relative Humidity (RH):  Up to 90%
