Product Overview

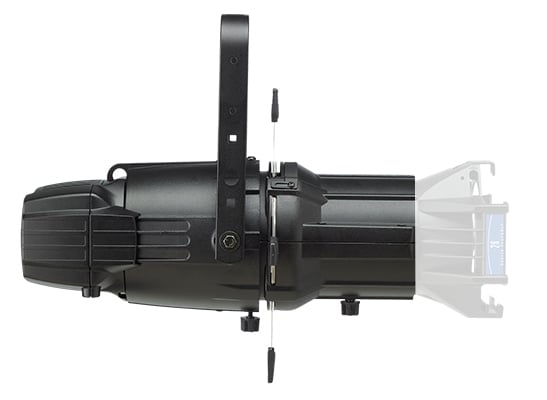

The ETC S4WRDFB is a combination of ETC's full-size, tungsten Source Four light fixture with the Source 4WRD Watt Reduction Device kit. The Source 4WRD replaces the standard Source Four burner assembly to convert the HPL source to a white-light LED, which provides a significant reduction in power consumption.
With the Source 4WRD installed, this light is theatrically dimmable via DMX or line dimmable – with a traditional LED curve – to allow flexibility for your installation. Plus, since this light is an LED source, it will run cool and efficiently without the need for regular lamp replacements. This model comes terminated with a grounded 20A twistlock connector.
ETC S4WRDFB Includes:
- Source Four fixture body
- Source 4WRD retrofit kit
- Barrel
- C-Clamp
ETC S4WRDFB Features:
- Same optics, same accessories, same flexibility as Source Four fixture
- As bright as a 575-watt, extended life HPL lamp
- 70% less power, no re-lamping, no-hassle swap out
ETC S4WRDFB Specifications:
- Physical:
- Rugged, die cast aluminum construction
- Seven segment display for simple DMX setup
- Two button user interface
- Easy mounting with single screw attachment
- Replaces Source Four burner assembly
- UL and cUL Listed
- IP20 rating for indoor use only
- Electrical:
- 114-125V, 60 Hz
- 155 Watt draw at full (182 Watt theoretical max draw)
- 30,000 hour L70 rating (ETC estimate)
- DMX in and thru via RJ45 connector (DMX is not self-terminating)
- AC and DMX dimmable
- Two fixtures per circuit (D20 module) when using AC dimming
- 14 fixtures per non-dim circuit (R20 module) when using DMX dimming
- Typical Power Consumption at 120V:
- Idle Power / Current:
- DMX Mode: 1.2W/0.046A
- AC Mode: 0W
- Full Intensity Power / Current: 155.7W/1.35A
- Inrush: 30A (first half-cycle) at 120V
- Optical:
- Tool free field adjustment
- LED lamp consisting of four CREE LED modules
- LED lamp is fragile and should not be touched
- 3000K, 80CRI output
- Uses the Source Four ellipsoidal's existing reflector and optical system
- Thermal:
- 41° F to 104° F operating range (5° to 40° C)
- Fixture must be above freezing temperatures for one hour before being energized
- Quiet fan cooling
- Fixture is designed for continuous operation up to 104° F (40° C) ambient temperature and requires free flow of air around fixture housing
