DPA Microphones 3511ES
Mic, Stereo Kit with 4011A Cardioid Microphones, Active Side

OUR PART #:  3511ES

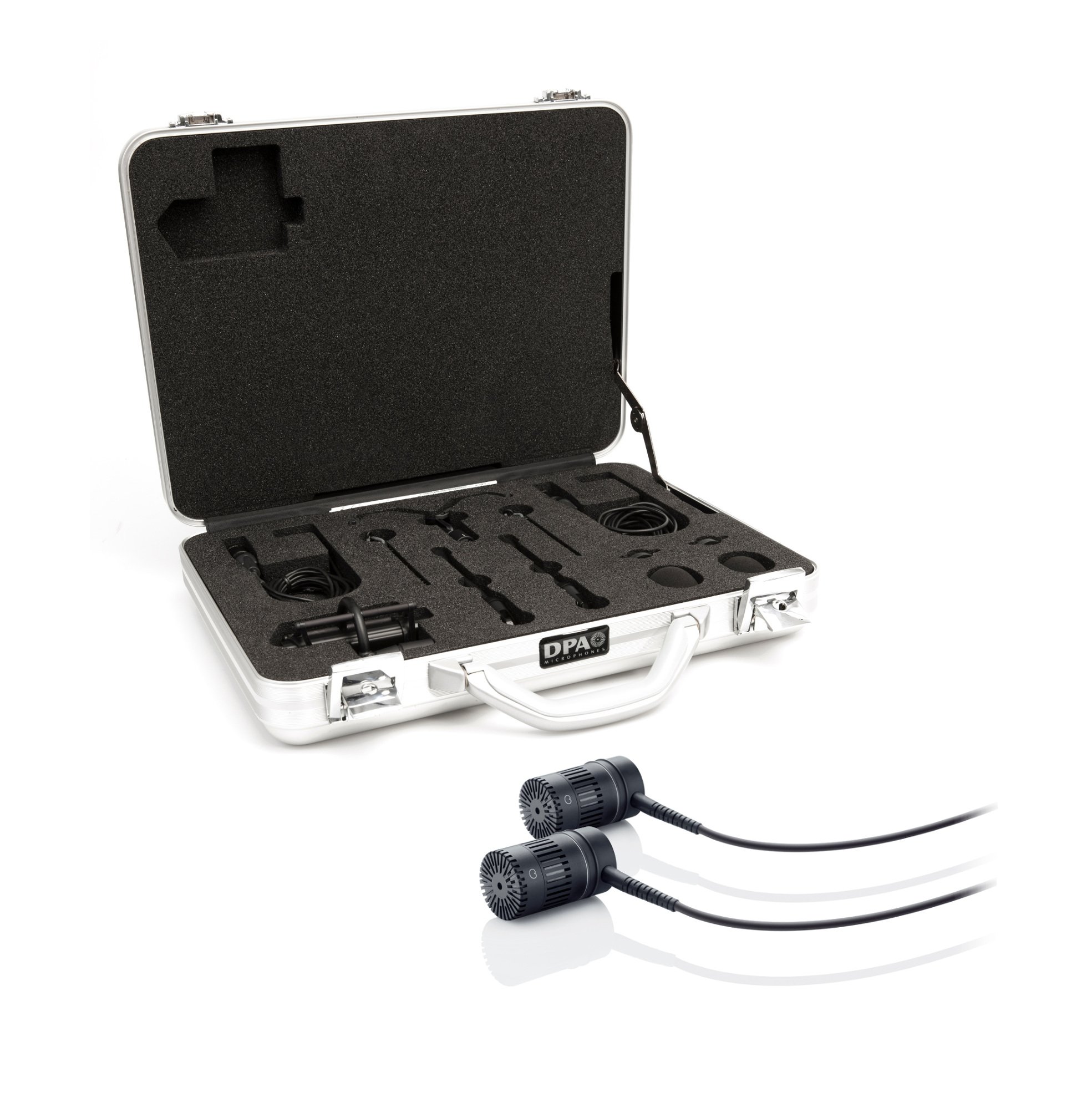

The DPA Microphones 3511ES is a complete stereo kit with two compact d:dicateā„¢ 4011ES Cardioid Microphones, with active side cables.
Learn More

Call for price! Not available online.
List Price: $6,289.95

Similar Products

The DPA Microphones 3511ES is a complete stereo kit with two compact d:dicateā„¢ 4011ES Cardioid Microphones, with active side cables. The mics are carefully factory-matched within +/- 1 dB on frequency response and sensitivity in the microphoneā€™s entire frequency bandwidth.

Ideal for unobtrusive spot miking, such as hanging or table use, the d:dicateā„¢ 4011ES Cardioid Microphone, Active Cable is an ultra-compact cardioid microphone from the modular d:dicateā„¢ Microphones Series. The mic has a length of only 3.5 cm (1.4 in) and a low-key appearance.

The mic features an integrated cable solution. This allows it to be hung from the ceiling and create precise and repeatable positions and angles when spot miking orchestra sections or ambience atmospheres.

DPA Microphones 3511ES Features:

  • Close-miking
  • Great for high sound levels
  • Factory-matched pair within +/- 1 dB
  • Accurate sound
  • Colorless sound
  • Modular flexibility

DPA Microphones 3511ES Specifications:
d:dicateā„¢ 3511ES STEREO KIT W. 4011ES CARDIOIDS, ACTIVE SIDE CABLE

  • Directional Pattern: Cardioid
  • Principle of operation: Pressure gradient
  • Cartridge type: Pre-polarized condenser
  • Frequency range: 20 Hz - 20 kHz
  • Frequency range, +/- 2 dB, at 30 cm (11.8 in): 40 Hz -20 kHz
  • Sensitivity, nominal, +/- 2 dB at 1 kHz: 10 mV/Pa; -40dB re. 1 V/Pa
  • Equivalent noise level, A-weighted: Typ. 18 dB(A) re.20 ĀµPa (max. 20 dB(A))
  • Equivalent noise level, ITU-R BS.468-4: Typ. 25 dB
  • S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL):Typ. 76 dB(A)
  • Total harmonic distortion (THD): < 1% up to 139 dBSPL peak
  • Dynamic range: Typ. 121 dB
  • Max. SPL, peak before clipping: 144 dB
  • Output impedance: 100 Ohms
  • Minimum load impedance: 2 kOhms
  • Cable drive capability: 100 m (328 ft)
  • Output balance principle: Impedance balancing
  • Common mode rejection ratio (CMRR): > 40 dB
  • Power supply (for full performance): 48 V Phantompower (+/- 4 V)
  • Current consumption: 3.5 mA
  • Connector: XLR-3M. Pin 1: shield, Pin 2: signal +phase, Pin 3: - phase
  • Color: Matte black
  • Weight: 109 g (3.8 oz)
  • Microphone diameter: 19 mm (0.75 in)
  • Capsule diameter: 19 mm (0.75 in)
  • Microphone length: 35 mm (1.38 in)
  • Maximum output voltage, RMS: 2.2 V
  • Polarity: +V at pin 2 for positive sound pressure
  • Temperature range: -40Ā°C to 45Ā°C (-40Ā°F to 113Ā°F)
  • Relative humidity (RH): Up to 90%
  • Matching tolerance (frequency response andsensitivity): +/- 1 dB
  • Phase deviation for kit: < 10Ā°
