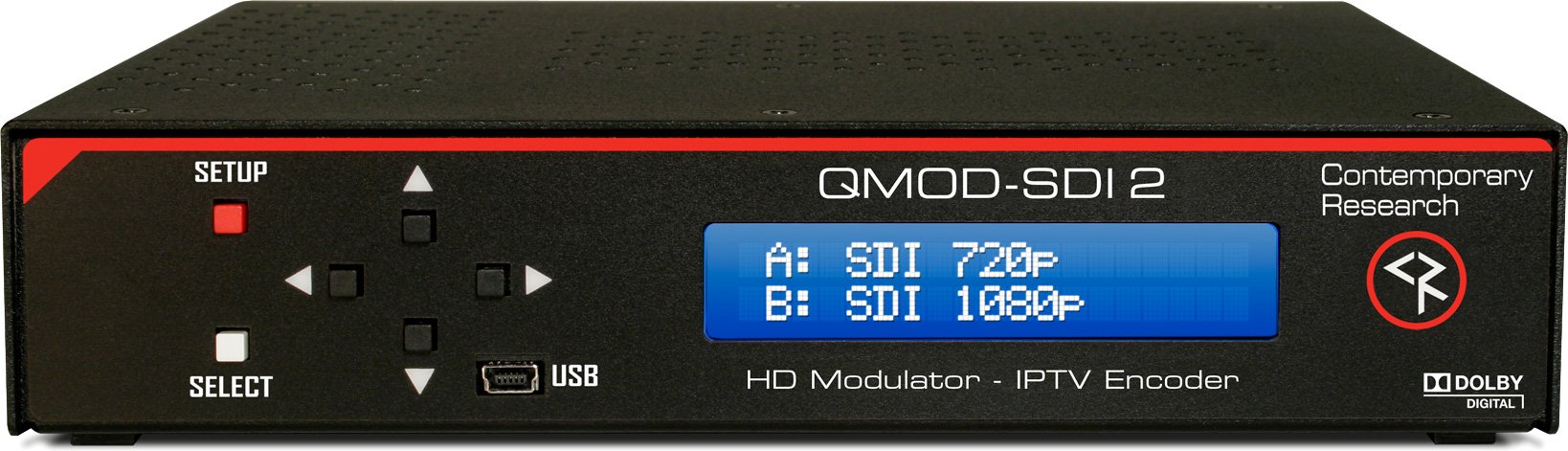

TecNec QMOD-SDI 2 Encoder
SDI Dual channel Modulator and Composite In and Agile QAM Output


Our Price: $2,750.00
List Price: $3,160.00
You save 13%!
Usually ships in 7-14 business days.
Need it sooner? Call us!

The dual-channel QMOD-SDI2, with two SDI inputs, sets a new standard for sports, motion and digital signage encoding. Dual hardware scalers accept content up to 3G 1080p, shapes digital signage for edge-to-edge presentation, and compensates for non-broadcast and PAL refresh rates. Able to deliver two HD programs in one channel, the QMOD-SDI 2 can also output the content as a Multicast or Unicast IPTV stream. Options include dual-language SAP audio, easy front-panel setup and alternate audio and NTSC video inputs. Web setup, monitoring, and firmware updates are available via USB and Ethernet ports. Two-across mounting offers up to four programs per rack space, with the ability to mix models to handle HDMI, SDI, Component, RGBHV and NTSC video sources.

TecNec SDI Dual Channel Modulaor Includes:

  • Compact PS12-1.5 switching power supply, 1.5A 12 VDC, fits power strip
  • Free option to include PS12-6Y power supply with every 2-3 modulators whenordered

TecNec SDI Dual Channel Modulator Features:

  • Sources:
    • Two HD-SDI inputs, 3G 1080p and 1080i/720p 59.94/60 Hz HD-SDI, and SD-SDI 480i widescreen/4:3 video; also accepts embedded 608/708 captioning and AES audio
    • Two Composite/CC video inputs for encoding, captioning, or EAS use
    • Two analog Stereo and two SPDIF coax audio inputs
  • Encoding:
    • Creates a high-definition dual-program 720p/1080i MPEG-2 stream for broadcast over RF or IPTV
    • Converts stereo and PCM to stereo AC-3, can create SAP dual-language audio for each program
    • Decodes Line 21 captioning from composite video inputs
    • Dual hardware scalers accept up to1080p 3G video, including 60/30 Hz, and PAL formats, and can deliver programs at a set resolution
    • Dual-channel operation is standard, creates one physical channel with two HD programs
  • Output:
    • Delivers a fully agile QAM 64/256 dual program digital cable channel 2-135
    • Up to 270 HD Programs/Channels per system
    • Streams Unicast/Multicast IPTV from GigE Ethernet port
    • Distributes channel over an on-site broadband cable system with adjustable output level to 29 dBmV, compatible with all cable format broadband systems
  • Operation:
    • Sets up with front-panel buttons and easy to use menus, including inputs, encoding, channel, and RF options.
    • Onboard Web page for setup and monitoring, also accessible from front-panel USB port - an Ethernet connection is not required
    • Updates firmware via USB and Ethernet
    • Fan cooled, with adjustable speed
    • Saves power and rack space using efficient design
    • Includes compact switching power supply
    • Mounts in optional 1RU single (RK1) or dual (RK2EZ) 19" rack kits
    • Meets RoHS safety and California energy standards
