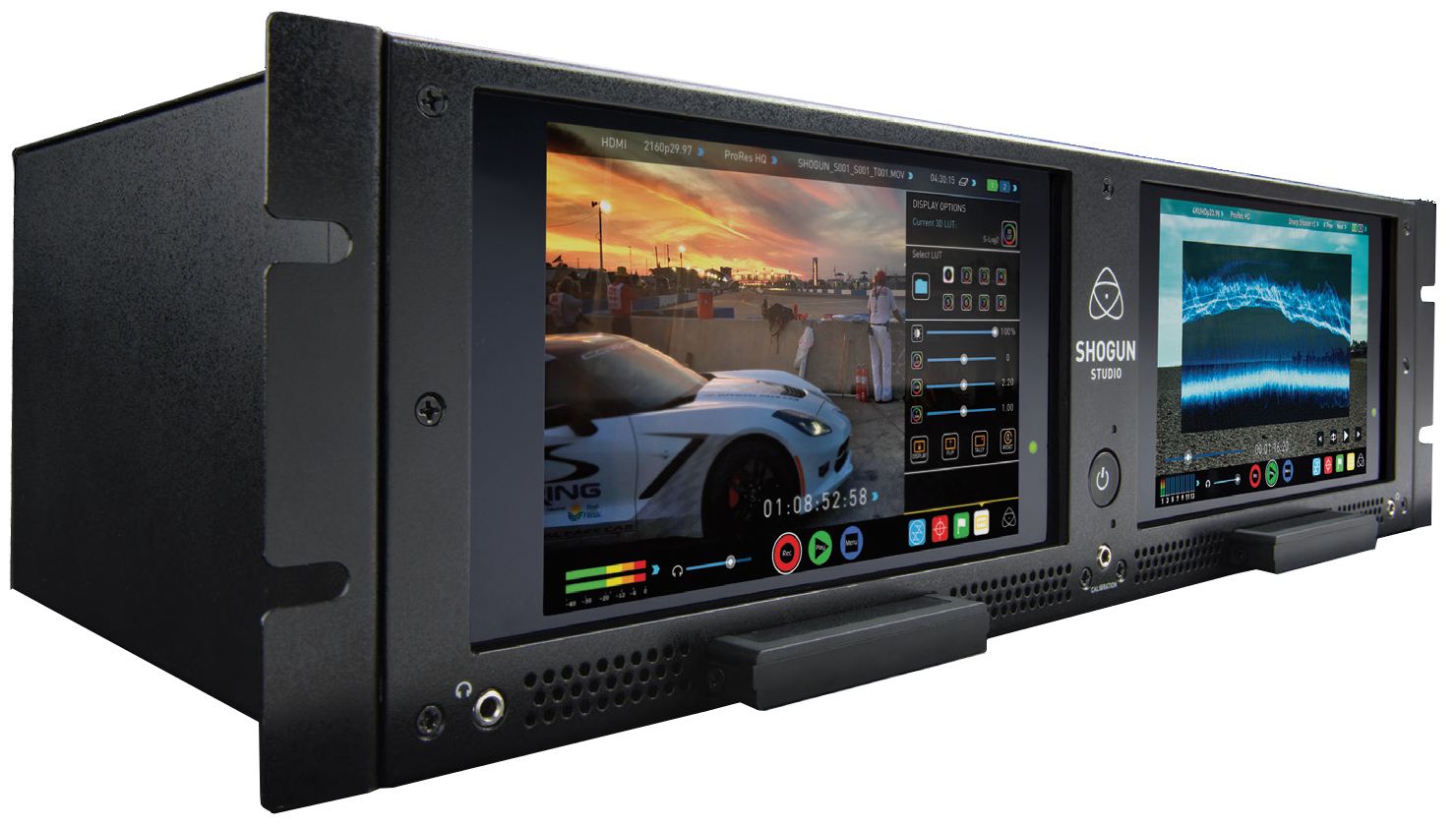

Atomos Shogun Studio
All-In-One 4K Apple ProRes/RAW Monitor

OUR PART #:  ATO-SHOGUN-STUDIO

The Atomos Shogun Studio harnesses the latest technology, along with class-leading Atomos usability and affordability...
Learn More
Our Price: $2,495.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Atomos Shogun Studio
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Atomos Shogun Studio harnesses the latest technology, along with class-leading Atomos usability and affordability, to offer you an all-in-one rack-mounted solution for Professional 4K/HD video recording, monitoring, and playback.

Applications:

Pro AV - Play list functionality & control via RS422, Ethernet or on screen, makes the Shogun Studio an affordable 4K & HD play out engine for signage, video walls, and projection. Additionally, its dual channel play out capability over HDMI or 1.5/3/6/12G SDI, Genlock and 4K to HD down scaling allows the Shogun Studio to be used to provide scheduled, synchronized 4K, 2K, and HD simultaneous play out to high resolution projecter, jumbotron, or signage systems.

Mobile Production - With rack space at a premium and resolution on the rise, Mobile Production professionals will welcome the ability to record, monitor, test, measure, convert and play out from a single 3RU device. Dual resolution, dual codec recording maximizes its flexibility in mobile situations. Combine the ability to record 4K resolution ISO feeds with a hardware down converted HD proxy version, record ProRes on one channel and DNxHR on the other, or even playback and convert from one codec/resolution combination to another. Infrastructure connection is simple as well, with built-in bi-directional HDMI and SDI conversion. Shogun Studio is ready for the 4K future, but 4K acquisition doesn’t have to mean 4K delivery – when 4K can be achieved on a HD budget and you have the capability to downscale or record codec to suit, you have the ideal product now and for the future in the tight space of Mobile production.

Event - Shogun Studio is the solution to many of the problems faced by multi camera events with long run times. Atomos' Master Caddy provides affordable & reliable media while features like time lapse, pre-roll cache, & 4K/HD simultaneous recording
make this an excellent choice for Event professionals. Atomos' open approach with media means you record up to 2.5 hours of 4K 30p or 5 hours of 1080p60 onto a single 1TB SSD, keeping media costs less than $150 per hour; you can also link the 2 channels to utilize continuous recording. The Shogun Studio can then monitor the input, view waveforms/scopes, setup complex time lapses and simultaneously record a proxy - under pinned with the safeguard of pre-roll cache recording (8 sec for HD / 2 sec for 4K) to ensure you never miss the action. You can even record presentations from PC, MAC, and Mobile devices.

Security - In security applications a wide angle lens on a 4K camera can mean a single camera replaces the equivalent of 4 x HD cameras. The Studio Shogun, with its long record time, time lapse, record scheduling and monitor zoom capability makes it a great weapon for 4K security applications. In ProRes LT at 25 FPS the Shogun Studio can record 6 hours of UHD 4K per channel, not only providing superior resolution, but also increasing the number of frames captured per second-providing a more finite approach to high resolution security recording. In applications where the additional frames aren’t important, you can set up the timelapse functionality to record specific frames at specific points over a specified duration. This can all be reviewed on the dual 7.1” Full HD monitors and easily zoomed in for closer inspection of areas of interest.

On Set/DIT - Shogun Studio in the rack of a DIT cart arms the set with the fastest path from acquisition to editing by recording direct to 10-bit 422 ProRes or DNxHR. The 3RU chassis offers dual record channels and class-leading monitoring with test measurement for the highest quality 4K/2K/HD viewing and setup. For color analysis, the RGB and Vector scopes provide real time feedback and can be overlaid in several positions on the color accurate 7.1” 323ppi Full HD monitor. You can double-check focus pulls with 2:1 zoom, focus peaking with edges only view and 8 LUT slots on board, plus an infinite number on disk. These decisions can be made with the confidence that you're using a 100% sRGB factory-calibrated monitor that can also be calibrated in the rack using the optional Spyder unit (sold separately). Outside of monitoring, DIT’s can start the editing process on set with favorite- and reject-tagging to start the formation of a play lists and EDLs for XML export.

Atomos Shogun Studio Includes:

  • Shogun Studio
  • Removeable Rack ears
  • 6G SDI loop cable
  • HDMI full to full Loop cable
  • 2 x IEC C
  • 2 x Master Caddy II
  • Docking station & leads

Atomos Shogun Studio Feature Highlights:

  • 4K, 1080p60 recording to popular professional codecs.
  • Utilize the 2 channels for dual codec, dual resolution recording
  • Scheduled playback and record via Ethernet, Serial & on-screen.
  • Class leading monitors & test measurement for perfect 4K viewing &set up on built-in HD monitors.
  • Powerful & intuitive AtomOS offers one-touch simplicity for anyoperator
  • Utilize the Atomos Master Caddy for reliable, affordable open standardmedia
  • Continuous built-in HDMI and SDI converter with down scaling for 4K to2K/HD to match your infrastructure.
  • Dual IEC c14 PSUs to integrate with your rack power distributionsystem

Atomos Shogun Studio Specifications:

Touchscreen

  • Size: 7.1”
  • Resolution: 1920 x 1200
  • PPI: 320
  • Aspect ratio: 16:9 native
  • Color standard: Rec.709 HDTV
  • Look up table (LUT) support: 3D LUT (.cube file format)
  • Technology: SuperAtom IPS panel (capacitive touch), calibration to Rec.709 with optional Atomos Spyder (sold separately)
  • Video analysis tools Luma waveform, RGB parade, Vectorscope, Vectorscope zoom
  • Calibration:
    • Calibration inf factory to Rec. 709, in field calibration with optional Spyder (sold separately)

Video Input/Loop Out

  • HDMI: 1 x HDMI (1.4b) per channel
  • SDI: 1 x 4K-SDI 12G/6G or HD-SDI 3G/1.5G (SMPTE) per channel
  • Signal: Uncompressed true 10-bit or 8-bit 422 (camera dependent)

Video Output (Play Out)

  • HDMI: 1 x HDMI (1.4b) per channel
  • SDI: 1x 4K-SDI 12G/6G or HD-SDI 3G/1.5G (SMPTE) per channel
  • Signal: Uncompressed true 10-bit or 8-bit 422 (playback file dependent)

Supported Formats (Record & Playback)

  • 4K - DCI RAW 4096x2160 to Supported cameras; Sony FS700, FS7, Canon C300MKII, C500
    • Apple ProRes HQ, 422, LT
    • DNxHR HQX, HQ, SQ, LB
  • 4K-UHD 3840x2160 8/10-bit 4:2:2 to:
    • Apple ProRes HQ, 422, LT
    • DNxHR HQX, HQ, SQ, LB
  • 1920x1080 8/10-bit 4:2:2 to:
    • Apple ProRes HQ, 422, LT
    • DNxHD 220x, 220, 145, 36
  • 1280x720 8/10-bit 4:2:2 to:
    • Apple ProRes HQ, 422, LT
    • DNxHD 220x, 220, 145, 36

Onboard Processing

  • Pulldown removal:
    • 24/25/30pSF > 24/25/30p (2:2 pulldown)
    • 60i > 24p (3:2 pulldown)
  • HDMI < > SDI conversion: Yes - Always on
  • 4K - UHD to HD downscale: On HDMI/SDI loop out (Rec &Playout)

Audio In/Out (48kHz PCM Audio)

  • HDMI: 2 or 8ch 24-bit, camera dependent
  • SDI: 12ch 48kHz 24-bit
  • Analogue audio:
    • 2 x XLR in & 2 x XLR out on rear per record channel.
    • Mic or line level with phantom 48V
  • Processing: Gain control on line in & headphone output
  • Maximum audio quality: 24-bit, 48kHz
  • Audio delay: Delay setting +1 to 99 frames

Remote Control

  • HDMI:
    • Auto HDMI Trigger
    • Supported Protocols - Canon, Sony, Atomos Open Standard
  • SDI: SDI trigger camera selectable
  • RS422: Sony RS422 machine control
  • AMP: via Ethernet RJ45 10/100
  • Serial: Calibration (front)

Timecode

  • HDMI: Embedded timecode from camera or video device
  • SDI: Embedded timecode from camera or video device
  • LTC: In Yes (LTC loop back)
  • GenLock In: Yes (GenLock loop back)

Playback

  • Playlist: Yes (run down or reverse order) for selected, favorite or all clips
  • Playback options: Loop in & out markets

Recording

  • Dual channel: Record 4K master with HD proxies. Record both ProRes & DNxHR versions, independent dual channel record.
  • Continuous record: Single channel 4K / HD recording automatically switches between drive when at capacity
  • Pre-roll record: Yes (HD 8s, 4K 2s)
  • Custom timelapse: Yes (Key frameable up to 10 video and single frame Intervals, can be triggered from internal clock).
  • Meta data tagging: Yes (10 tags available)

Recording Media

  • Drive slots: 2 (1 per record channel)
  • Drive connection types: SATA
  • Supported media (Approved List Only):
    • 4K / HD (50/60/120p*)
      CFast 2.0, SSD 2.5”, HDD (HD 50/60 only - 7,200 up to 1080p60)
    • HD
      CFast 1.0, SSD 2.5”, HDD (5,400 up to 1080p30)
  • Master caddy case: Master Caddy II (included), 75mm x 105mm x 12mm
  • Master caddy dock: 2.5” SATA to USB 2.0/3.0
  • Supported Applications: FCPX/FCP7+ / Media Composer 5.0+ / Premiere 5.5+ / EDIUS 6.0+ / Vegas Pro 10+ / Lightworks / Autodesk Smoke 2015
  • XML support FCPX XML native, FCP7 supported with conversion (Adobe compatible)

Power

  • Operating power: 20 - 60W
  • Redundant PSU: Yes
  • Compatible batteries: No
  • Input voltage (battery): -
  • DC Out: No
  • Continuous power*: -
    * Patent pending

Physical

  • Weight: 11lbs (5.0kg)
  • Rack height: 3Ru
  • Rack mounting: Removable rack ears
  • Dimensions (WxHxD):
    • Without rack ears: 17.6" x 6.0" x 9.9" (447 x 152 x 251mm)
    • With rack ears: 19.3" x 6.0" x 9.9" (490 x 152 x 251mm)
  • Construction: Steel construction for durablility
  • Cooling: Actively controlled fan with heat sinks

Protection

  • Warranty 1 year. Extended to 3 years on product registration
