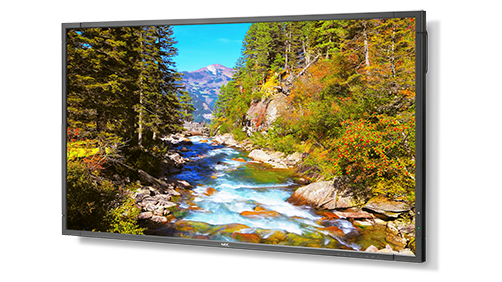

NEC Visual Systems E705
70" LED Backlit Commercial-Grade Display

OUR PART #:  E705

NEC's 70" Large Screen E705 delivers an extensive feature set and high visual quality that's expected with a commercial grade display, yet remains a cost-effective solution.
Learn More
Our Price: $3,049.00
List Price: $3,354.00
You save 9%!
Write the first review.
NEC Visual Systems E705
Qty:
In Stock
Similar Products

NEC's 70" Large Screen E705 delivers an extensive feature set and high visual quality that's expected with a commercial grade display, yet remains a cost-effective solution. The extremely large size, expanded connectivity, and full external control make this display ideal for meeting room, boardroom, and conference room type of applications.

NEC E705 Includes:

  • NEC E705 Unit
  • Power cord
  • 1.8m DVI-D cable
  • Wireless remote control
  • Batteries
  • CD-ROM (user manual)
  • Option board slot cover
  • Screws
  • Thumbscrews

NEC E705 Features:

  • 1080p Native Resolution (1920x1080) - High resolution provides detailed display of text, graphics and images. HD video is displayed in 16:9 wide aspect ratio.
  • LED Edge-lit Display - Reduces overall depth while also lowering overall power consumption of the product
  • Onboard Expansion Slot - Allows for seamless integration of current and future NEC accessories and third-party components.
  • Built-In Speakers - Enhance the visual experience with superior sound
  • Carbon Footprint Meter - Informs and motivates responsible use of the display by calculating and tracking the conservation of green gas emissions in real time.
  • Open Pluggable Specification (OPS) - The first industry-wide standardization in option slots that allows for easier installation, use and maintenance of digital signage through simple integration of multiple accessories such as a digital tuner, HDBaseT, or OPS-DRD media player.
  • Input Switching Speed - Multiple settings for input switching speed. Select among “normal, quick or super” settings. If multiple sources are used and visible waiting times with black screens would impact viewing, the fast input switching can be convenient and avoid distraction
  • Other Features:
    • Full bi-directional external control via both RS232 and LAN
    • Expanded terminal interface including 2 HDMI, DisplayPort, DVI and VGA connections
    • Integrated Temperature Sensors
    • Thermodynamic Cooling Fans
    • Ethernet control and communication
    • RS-232Control and communication
    • AMX Beacon Compatible, Crestron Connected Compatible
    • Full 24/7 Scheduler
    • Custom Input Detect Options
    • Full 3 year commercial grade warranty

Auto Power On Integrated 10W Speakers Full Steel Chassis Plug and Play DDC2B Full Scheduler Function

NEC E705 Specifications:

 Display

  • Panel Technology: UV²A
  • Viewable Image Size: 70"
  • Native Resolution: 1920 x 1080
  • Pixel Pitch: 0.8mm
  • Backlight Type: LED Edge-lit
  • Brightness (typical): 360cd/m2
  • Brightness (maximum): 450cd/m2
  • Contrast Ratio (typical): 4000:1
  • Viewing Angle: 176° Vert., 176° Hor. (88U/88D/88L/88R) @ CR>10
  • Response Time (Gray to Gray): 8ms
  • Refresh Rate: 60Hz
  • Aspect Ratio: 16:9
  • Active Screen Area: 60.6" x 34.1" (1538.9 x 865.6mm)
  • Orientation: Landscape
  • Displayable Colors: More than 16.7 million

Synchronization Range

  • Horizontal (Analog/Digital): 15.625 / 15.734 / 31.5-91.1 kHz
  • Vertical: 50-85 Hz

Input Signal

  • Video: Analog RGB 0.7 Vp-p/75 Ohms Digital TMDS / DisplayPort
  • Sync: Separate sync: TTL Level (Positive/Negative)
  • Composite sync: TTL Level (Positive/Negative)
  • Composite sync on green: (0.3Vp-p negative 0.7Vp-p positive)

Connectivity

  • PC Signal Compatibility: Yes
  • Macintosh Compatibility: Yes
  • Input Terminals:
    • Digital: DisplayPort, HDMI (2), DVI
    • Analog: VGA 15-pin D-sub
    • Audio: Audio Mini-Jack x 2
    • External Control: Ethernet (RJ45), RS-232C
  • Output Terminals:
    • Audio: Audio Mini-Jack, External Speaker Jack (2)

Power Consumption (Typical)

  • On: 150W
  • ECO Mode Standby: <2.5W

Physical Specifications

  • Bezel Width (Left/Right, Top/Bottom):  0.9/0.9", 0.9/0.9" (23.0/23.0mm, 23.0/23.0mm)
  • Dimensions (WxHxD):
    • Net (with stand): 62.5" x 37.7" x 23.9" (1587.0 x 956.8 x 606mm)
    • Net (without stand): 62.5" x 36.2" x 3.4" (1587.0 x 919.6 x 86.9mm)
    • Shipping:  68.4" x 45.4" x 12.5" (1738 x 1153 x 318mm)
  • Weight:
    • Net (with stand): 113.5lbs (51.6 kg)
    • Net (without stand): 103.4lbs (47.0 kg)
    • Shipping: 134.2lbs (61 kg)

VESA Hole Configuration Specifications

  • 400 x 400mm

Environmental Conditions

  • Operating Temperature: 41°-104°F (5°-40°C)
  • Operating Humidity: 20-80%
  • Operating Altitude: 9843 ft. (3000 m)
  • Storage Temperature: 32°-104°F (0°-40°C)
  • Storage Humidity: 10-90%
  • Storage Altitude: 40,000 ft. (12,192 m)

Limited Warranty (Parts & Labor, Including Backlight)

  • 3 Year Warranty
