Atlas Sound AH94-12T-BSG
12" Two-Way Stadium Horn System 90° x 40°

OUR PART #:  AH94-12T-BSG

AtlasIED model AH94-12ST-BSG "stadium horn" is ideal for directional sound distribution where full range reproduction...
Learn More
Our Price: $1,146.99
List Price: $1,433.99
You save 20%!
Be the first to review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Atlas Sound AH94-12T-BSG
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

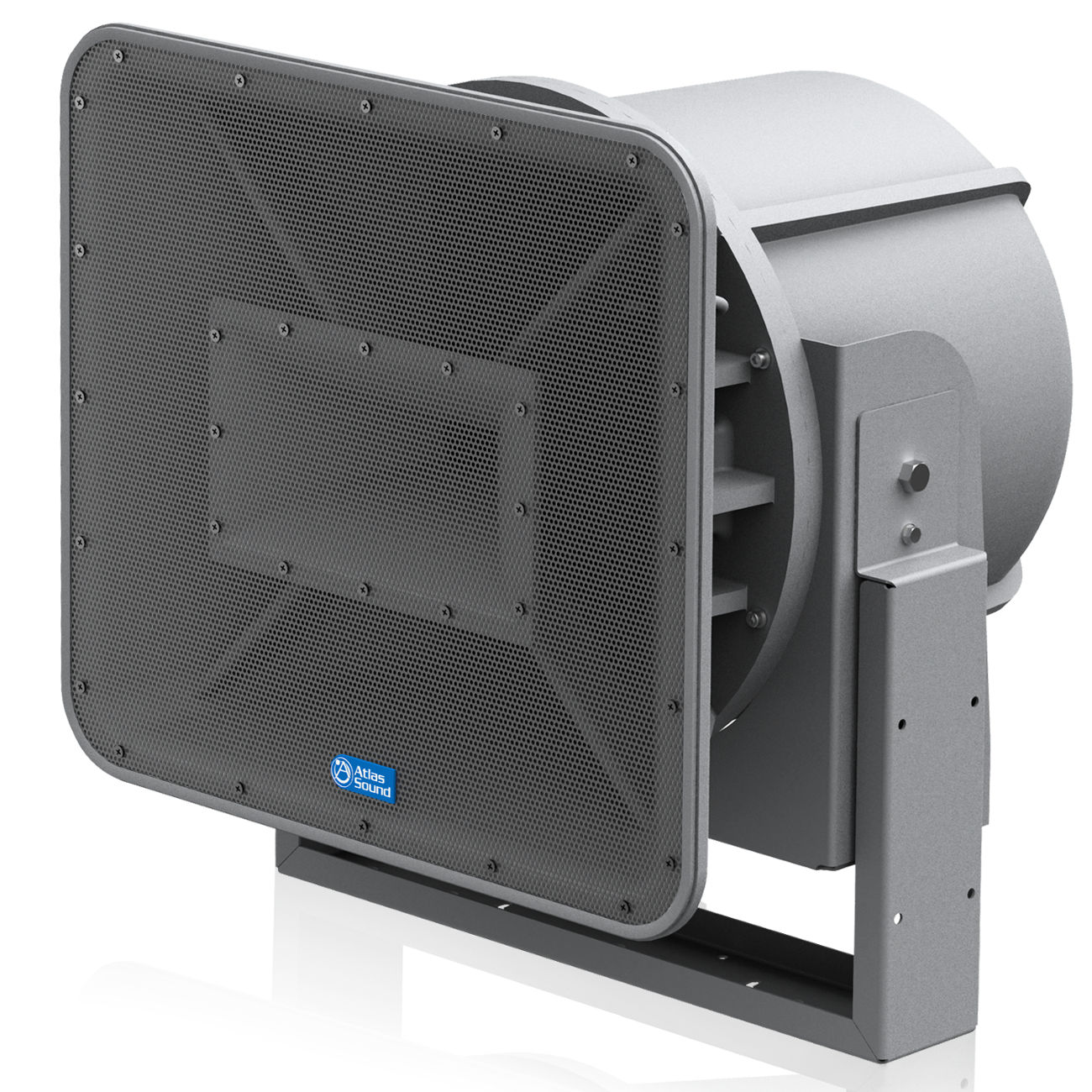

AtlasIED model AH94-12ST-BSG "stadium horn" is ideal for directional sound distribution where full range reproduction, maximum intelligibility and high sound pressure levels are required.

Applications include football stadiums, sports arenas, baseball fields, convention centers and auditoriums.

Weather resistant construction features of the AH94-12ST-BSG include a multiple screen configuration to prevent moisture from damaging internal components, a perforated aluminum screen covers the large horn mouth, a secondary screen is in place forward of the high frequency driver and a third tightly perforated screen protects the 12" cast frame woofer. A "weep" hole is also included on the back of the large horn "bell" to allow evaporation of any condensation that might build up internally.

AtlasIED AH94-12ST-BSG Features:

  • (3) Forged Eyebolts Also Included for Suspended Installation
  • 200 Watts Power Handling
  • Constant Directivity Design Offers Controlled Coverage of 90° Horizontal by 40° Vertical (2kHz Octave Band)
  • Driver Compliment Includes 12" Cast Frame Woofer with a Concentrically Mounted 1" Exit Compression Driver Coupled to a 90°x 40°V HF Horn
  • Easy, Weather Resistant Connection via a Convenient Recessed Terminal Block Located on the Bottom of the Loudspeaker
  • Efficiency Rating of 103 dB (1W/1m)
  • Heavy Duty Mounting Bracket (Included) Allows for Easy Installation to Most Any Flat Surface
  • Includes a Built-In, High Efficiency 60 Watt 70.7V Transformer
  • Maximum Output of 126 dB (Rated Power @ 1M)

AtlasIED AH94-12ST-BSG Specifications:

  • Power Taps: 7.5, 15, 30, and 60 Watts and 8 Ohms
  • Sensitivity: 103 dB SPL (70 Hz to 17 kHz 1/3 octavebands)
  • Driver Type: 1" HF and 12" LF
  • Dispersion: 90° x 40°
  • Power Rating: 200 Watts
  • Frequency Response: 80 Hz - 15 kHz (+/- 5 dB)
