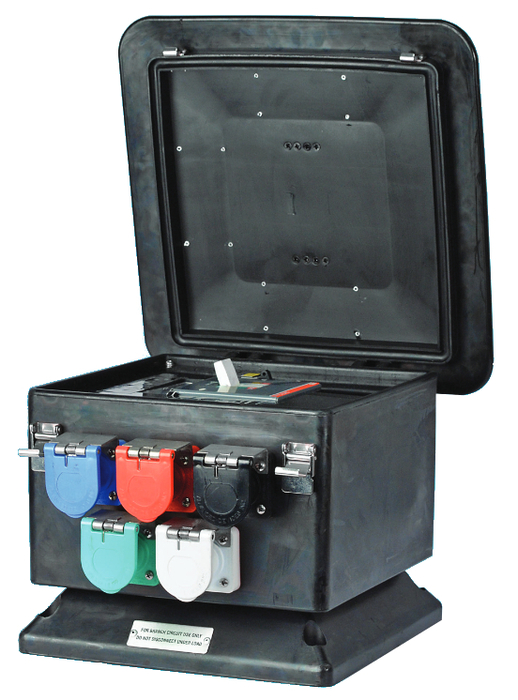

Lex Products Corp DB250LP-AW-S3
100-250 Amp Load Master without Duplex Receptacle

OUR PART #:  DB250LP-AW-S3

The DB250LP-AW-S3 from LEX Products is a 100-250 Amp Load Master which allows you to provide a main disconnect and overcurrent protection for portable power distribution systems.
Learn More
Sale Price: $2,599.99
List Price: $3,571.55
You save 27%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Lex Products Corp DB250LP-AW-S3
Qty:
In Stock

Similar Products

The DB250LP-AW-S3 from LEX Products is a 100-250 Amp Load Master which allows you to provide a main disconnect and overcurrent protection for portable power distribution systems. The current trip setting is adjustable, allowing it to protect a variety of systems with different cable sizes. This makes it ideal for use in shipyards, emergency/disaster relief, construction, outdoor events, concert touring and entertainment markets. This model comes without duplex receptacle.

Actual product may vary in appearance and specification. For more information on this and other products, please contact your Sales Pro.

LEX DB250LP-AW-S3 Features:

  • Adjustable trip setting allows the box to protect a variety of systems with different cable sizes
  • Adjustable electronic circuit breaker will not nuisance trip due to high ambient temperatures
  • Heavy-duty molded rubber enclosure is fully insulated and resistant to shock, impact and corrosion
  • Circuit breakers are mounted under hinged lid for enhanced protection
  • Stackable and compact for easy storage and convenient portability
  • Elevated base keeps receptacles above ground level

LEX DB250LP-AW-S3 Specifications:

  • Rating: 100-250 Amp, 3 Phase (H,H,H,N,G), 4 Pole, 5 Wire, 120/208Y VAC
  • Environmental Rating: TYPE 3R Rainproof
  • Input: (1) set of (5) 16 Series Cam-type panel mount inlets
  • Output: (1) set of (5) 16 Series Cam-type panel mount outlets, protected by an adjustable circuit breaker
  • (1) NEMA 5-20, 20 Amp, 2 Pole, 3 Wire,120/208Y VAC duplex receptacle
  • Overcurrent Protection: (1) 100-250 Amp adjustable electronic circuit breaker
  • Feed Thru: None
  • (1) 20 Amp, Single Pole circuit breaker
  • Overall Dimensions: 14.25" L x 14.25" W x 14.15" H
  • Weight: 38lbs
