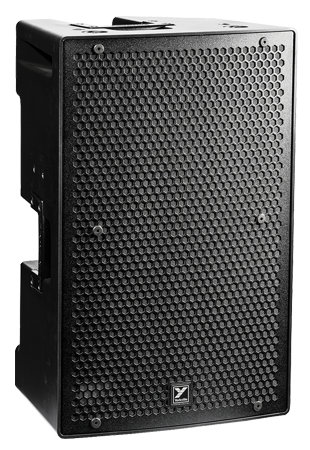

Yorkville PS12P
Parasource Active 12-Inch Loudspeaker

OUR PART #  PS12P

Our Price: $1,099.00
List Price: $1,549.00
You save 29%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The Yorkville PS12P is an active 12-inch loudspeaker from the Parasource Series. The PS12P uses a high power 12-inch woofer (with 3-inch voicecoil) to deliver maximum tone and low frequency response. The focused 85° x 50° (H x V) conical horn delivers improved constant directivity and better midrange response than competitive cabinets in this class.

Integrated DSP ensures the PS12P can operate in any application without complex external processing. A simple one-button high pass filter switch rolls off low frequency material when PS12P is used with any Paraline Series or powered élite System subwoofer. Bass boost delivers remarkably improved bottom end response from the PS12P without cluttering midrange program or affecting the cabinet's overall intelligibility - making it the ideal small speaker solution for larger events where additional subwoofer support is not available.

Innovative multi-band limiting allows the cabinet to deliver maximum output and remarkably event frequency response while protecting the PS12P's speaker components. The Parasource Series multi-band limiting scheme ensures essential elements like vocals and solo instruments in the essential midrange band aren't being modulated by transient attacks of low frequency material like kick drums and bass tracks. This delivers a smooth and precise mix even at the highest output levels the cabinet can produce.

Designed for maximum versatility, the PS12P works equally well as a Front-of House cabinet, side fill cabinet or floor monitor. Innovative and highly efficient passive cooling scheme ensures the PS12P will operate in any environment without need of noisy internal dust collecting fans. Integrated reinforced flypoints ensure the PS12P can be flown quickly and easily in any fixed installation.

Yorkville PS12P Features:

  • Integrated 4400 Watt Amplifier (Peak Power - 1400Watts Program)
  • 12-inch Woofer with 3-inch Voicecoil
  • 85° x 50° Horn with Thermal and Peak Protection
  • 38 mm Compression Driver with 1-inch Exit
  • Max SPL 133dB Peak (128dB Continuous)
  • High Efficiency Bi-Amplified Class-D Power Module
  • Passive Cooling Scheme (No Loud Fans Required)
  • Designed for Front-of-House or Monitor Applications
  • Integrated Two Channel Mini Mixer with XLRMicrophone, 1/4-inch and RCA Line Inputs
  • Multiband Limiting Delivers Extremely TransparentListening Experience (Vocals Are Not Modulated By Bass)
  • Ergonomic All Metal Handles
  • Integrated All Metal Speaker Standmount Adaptor
  • Reinforced Fly points
  • Lightweight ABS Cabinet Construction
  • Optional PS12PCOVER available
  • Made in Canada

Yorkville PS12P Specifications:

  • System Type: Active Loudspeaker
  • Active or Passive: Active
  • Program Power (Watts): 1400 watts (4400 watts peak)
  • Max SPL (dB): 133 dB Peak (128dB Continuous)
  • Frequency Response (Hz +/- 3dB): 45 Hz to 26kHz
  • Crossover Frequency (Hz): 1.25 kHz
  • Driver Configuration: 12-inch /1-inch
  • HF Driver(s): 38 mm Voicecoil with 1-inch Exit
  • HF Dispersion (°H x°V): 85 x 50
  • HF Protection: Thermal/Peak Limiter
  • LF Driver(s): 12-inch (3 inch voice coil)
  • LF Protection: Thermal/Multiband Peak Limiter
  • LFProcessing: Dynamic Bass Extension
  • Cooling Scheme: Passive
  • Power Cable: Detachable IEC
  • Power Consumption (typ/max):
    • 2.4A/3.0A @ 120Vac
    • 1.2/2.5 A @ 230Vac
  • Inputs: 1/4-inch, XLR, RCA
  • Inputs - 1/4" Jacks:Yes (x2)
  • Inputs - XLR: Yes (x2)
  • Input Sensitivity (Vrms Sine): 1.23 Vrms + 4 dBu
  • Mixer Controls: Sub Mode HPF, Bass Boost, Mixer Enable
  • LevelControls: Master Level, Mic Level, Line Level
  • LED Indicators: Power, Limit,Clip
  • Bar Handles: Yes
  • Flying Hardware: EYEBOLT1/4A
  • Pole Mount Adapter (1 3/8"-3.5 cm): Yes
  • Enclosure Materials: ABS
  • Baffle Material: ABS
  • Grille: Perforated Metal
  • Dimensions (DWH xbackW, inches): 13.5 x16.7 x 26.5
  • Dimensions (DWH xbackW, cm): 34.3 x 42.5 x 66.7
  • Weight: 60lbs (26.3 kg)
