ETC/Elec Theatre Controls EPS10
Wall Flush Mount 10-button Echo Preset Station

OUR PART #:  EPS10

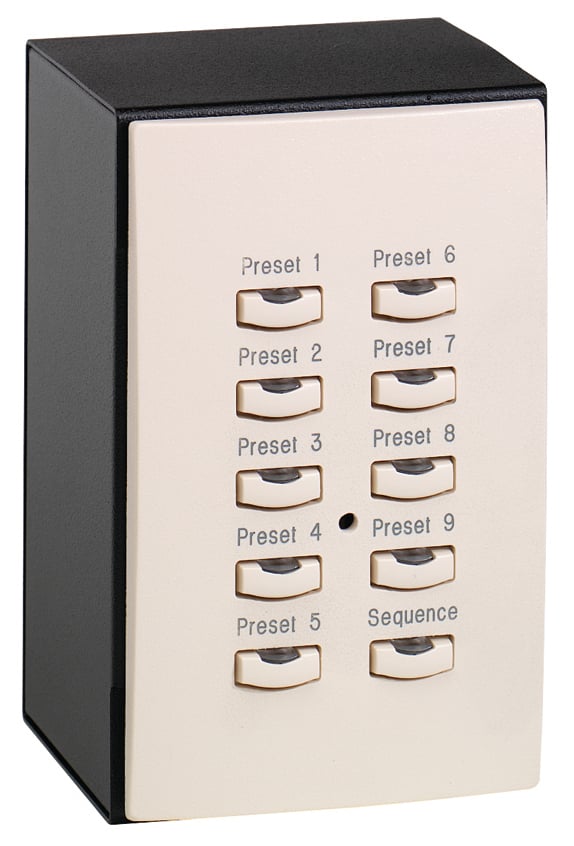

ETC's 10-button Unison Echo Preset Station is a wall flush mounted controller designed to offer easy access to lighting scenes with just the simple touch of a button.
Learn More
Selected Model Price: $215.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

ETC/Elec Theatre Controls EPS10
Select a Model: (shipping times are approximate)
Qty:

Similar Products

ETC's 10-button Unison Echo Preset Station is a wall flush mounted controller designed to offer easy access to lighting scenes with just the simple touch of a button. You choose what fits your location's aesthetics and needs.

Unison Echo Preset Stations allow recall of presets in ETC power control products that support EchoConnect. This station provides 10 buttons and is designed to complement – not compete with – the aesthetics of any interior environment. Preset stations are simple to install using EchoConnect, and require no software for configuration. Echo Preset Stations are available in standard colors, or may be customized to match any space (please specify color when ordering).

Applications:

  • Houses of worship
  • Hotels
  • Convention centers
  • Meeting rooms
  • Schools
  • Restaurants

ETC EPS10 Echo Preset Station Features:

  • Activation of any preset in a Unison Echo control system
  • Support for up to 6 stations and 6 power panels in a singlesystem
  • EchoConnect: Two-wire topology-free system gives you the freedom to putstations where you need them
  • Fastener-Free Faceplate System: no visible means of attachment
  • ColorCondition: RGB LEDs allow for customized control indication perstation
  • Forever Legend System: complementary-colored standard or custom legendoptions using an indelible, laser-marking method
  • RemoteDirect: a built-in Infrared (IR) receiver on every station allows for optional IR remote control at every station
  • UL and cUL Listed
  • CE Marked

ETC EPS10 Echo Preset Station Specifications:

  • Functional:
    • Station recalls 10 presets in connected power controllers
    • Buttons on each station can be assigned to any preset; consecutive buttons recall consecutive presets
    • The last button on each station may be assigned to a preset, or function as a global-off operation
    • Preset range is limited to the presets available in the Echo-compatible power controller
    • Each station supports a Unison Heritage IR remote. IR remote buttons mimic the station buttons
  • Mechanical:
    • 10 push buttons
    • Gangable for custom applications
    • Enclosed electronics assembly and faceplate included
    • Cantilevered switch arrays with removable caps
    • No visible means of attachment
    • Flush-mount in industry-standard backbox, RACO 690 or equivalent
    • Surface-mount backboxes available from manufacturer
    • Constructed of injection-molded ABS plastic in 5 standard colors, matched to RAL standard colors (please specify color when ordering)
    • Custom colors available with sample
    • Indelibly marked legends in a contrasting color
    • Integral LED response-indicator for each button configurable per station in 16 standard colors
    • Integrated IR receiver
    • Two-selector dial for configuration of station group and address
    • DIP switches for advanced station configuration
  • Electrical:
    • Connect via EchoConnect topology-free wiring over Belden 8471 or equivalent and one #14 ESD drain wire
    • Wiring may be bus, loop, home run or any combination of these
    • Up to 500 meters (1640 ft) of control wiring per system
      • -- Up to 1000 ft using CAT5
    • All station terminations use pluggable connectors
    • UL and cUL Listed, CE Marked
  • Environmental:
    • Ambient room temperature: 32-104°F (0-40°C)
    • Ambient humidity: 30-95% non-condensing
