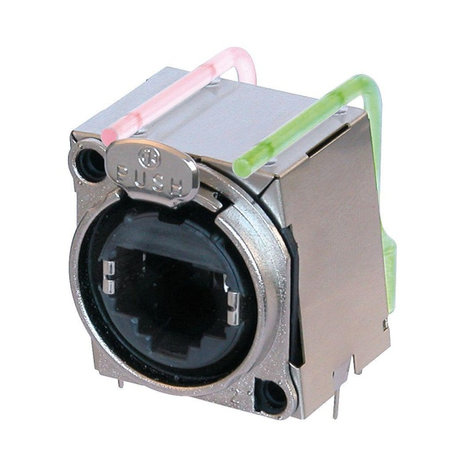

Neutrik NE8FBH-LED
Shielded Ethercon Connector


Neutrik's NE8FBH-LED is a fully shielded, horizontal PCB mount RJ45 receptacle with B-Series cutout and latch lock, max. panel thickness 3 mm.
Learn More
Our Price: $7.03
List Price: $10.06
Save up to 41% when you order by quantity!
  • Buy 25: $6.35 each.
  • Buy 50: $6.13 each.
  • Buy 100: $5.90 each.
Write the first review.
Neutrik NE8FBH-LED
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

Neutrik's NE8FBH-LED is a fully shielded, horizontal PCB mount RJ45 receptacle with B-Series cutout and latch lock, max. panel thickness 3 mm. The "Lighted etherCON" offers a closed metal housing to avoid EMI or cross talking and two light pipes for standard 3 mm LED to indicate data transmission, status, etc.

The etherCON Series is a ruggedized and lockable RJ45 connector system, optimized for pro audio, video and lightning network applications. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry.

The B-Series offers a space saving design and a rugged metal front plate. Does not intermate with CAT6 cable connectors.

Neutrik NE8FBH-LED Features:

  • Accommodates rugged etherCON NE8MC* or any standard RJ45 plug
  • Approved latch lock system
  • Offers various illuminating indication possibilities by means of two separate light pipes
  • Light pipes illuminated by standard 3 mm LEDs to be mounted on PCB by customer
  • Comprehensive shielding granted by completely closed metal housing
  • Complies with Class D according to TIA / EIA 568B and ISO / IEC 11801 standard
  • Ground panel connection

Neutrik NE8FBH-LED Specifications:

  • Product:
    • Title: NE8FBH-LED
    • Gender: Female
  • Electrical:
    • Contact resistance: < 10 m-Ohms
    • Dielectric strength: 1 kVdc
    • Frequencyrange: 1 - 100 MHz
    • Insulation resistance: > 0.5 GOhms
    • Rated current per contact: 1,5 A
    • Rated voltage: < 50 V
    • Transmission performance: Class D
    • Standard compliance: TIA/EIA 586B, IEC11801
  • Mechanical:
    • Insertion force: = 20 N
    • Withdrawal force: = 20 N
    • Lifetime: > 1,000 mating cycles
    • Panel thickness: max. 3 mm 0.12'
    • Wiring: Horizontal PCB mount
    • Locking device: Latch lock
    • Mounting direction: Rear
    • Chassis shape: B
    • Recommended LED-height: 5.6 mm (2.2“)
    • The final LED brightness depends on the actual LED height and the angel of radiation. Subject to be tested.
  • Material:
    • Contact plating: 0.2 µm Au over Ni plating
    • Contacts: Bronze (CuSn8)
    • Insert: PBTP 15 % GR
    • Shell: Zinc diecast (ZnAl4Cu1)
    • Shell plating: Nickel
  • Environmental:
    • Flammability: UL 94 V-0
    • Solderability: Complies with IEC 68-2-20
    • Temperature range: -30 °C to +80 °C
