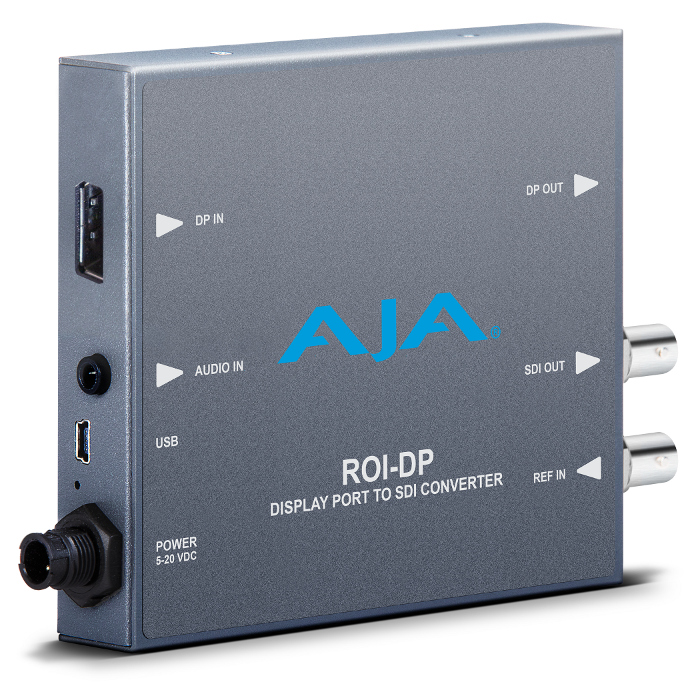

AJA Video Systems Inc ROI-DP
DisplayPort to SDI Mini Converter with ROI Scaling

OUR PART #:  ROI-DP

The ROI-DP Mini-Converter from AJA allows high quality conversion of computer DisplayPort outputs to baseband video over SDI at an affordable price and in a very portable size.
Learn More
Our Price: $995.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

AJA Video Systems Inc ROI-DP
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The ROI-DP Mini-Converter from AJA allows high quality conversion of computer DisplayPort outputs to baseband video over SDI at an affordable price and in a very portable size. With extensive audio functionality, incredible image scaling as well as aspect and frame rate conversion, ROI fulfills the growing need to properly incorporate computer signals into the video world without sacrificing budget or space. The free MiniConfig application lets you interactively select a Region of Interest from the incoming DisplayPort signal and control how that region is scaled to the output resolution using AJA's high quality scaling algorithms for the cleanest picture quality possible.

AJA ROI-DP Features:

  • DisplayPort to SDI conversion
  • Region of Interest scaling
  • DisplayPort loop through
  • Audio embedding
  • Aspect ratio conversion
  • Genlock input
  • Configure via USB port and supplied MiniConfig software
  • Uses 5-18VDC power (universal power supply included)
  • 5-year warranty

AJA ROI-DP Specifications:

  • Video Input:  1x DisplayPort input connector
  • Input Formats:
    • Computer Signals:
      • WUXGA (1920x1200) 60 Hz max
      • VGA (640x480) minimum

NOTE: Frame rates limited by the 167Mhz max rate of the DP Receiver.

    • Video Signals:
      • 1920x1080i 25, 29.97
      • 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
      • 1280x720p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
      • 525i, 625i
      • 480p, 580p
  • Color Range:
    • Full
    • SMPTE
  • Reference Input:
    • Permissible reference video inputs include:
      • NTSC 525 Bi-level Sync
      • PAL 625 Bi-level Sync
      • 720p Tri-level Sync
      • 1080i Tri-level Sync
      • 1080p Tri-level Sync
  • Video Outputs:
    • DisplayPort:
      • 1 x DisplayPort pass through connector
    • SDI:
      • 3G-SDI, SMPTE-259/292/424, 1 x BNC
  • Output Formats:
    • 1080p 50, 59.94, 60 - SMPTE 425-1 Level A Mapping structure 1 (4:2:2 10-bit YCbCr)
    • 1080p 23.98, 24, 25, 29.97, 30
    • 1080i 25, 29.97
    • 720p 50, 59.94, 60
    • 625i 25
    • 525i 29.97
  • HDCP:
    • ROI-DP does not encode the DisplayPort output with HDCP encryption.
    • ROI-DP does not accept HDCP input.
  • Audio Inputs:
    • 1 x Analog 3.5mm TRS, 2-channel
    • DisplayPort embedded audio, 24-bit, 8-channel
  • Audio Output:
    • SDI embedded audio, 24-bit, 2-channel or 8-channel
    • DisplayPort embedded audio, 24-bit, 8-channel
  • User Controls:  USB port used with supplied cable and MiniConfig software application to configure device via Mac or Windows
  • Power:
    • Uses AJA Power Supply model DWP-U-R1 (included with purchase)
    • 100-240V, 50/60Hz Universal Input
    • +5 to 20V DC regulated, 9 watts max
  • Size:  5.765" x 4.020" x 0.9" (146.431mm x 102.108mm x 22.86mm)
  • Environment:
    • Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)
    • Operating Relative Humidity: 10-90% non-condensing
    • Operating Altitude: <3,000 meters (<10,000 feet)
    • Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140 degrees F)
