SoundTube SM590I-II-WX-BK
5.25" High Power Coaxial Surface Mount Speaker with Weather-Resistant Finish


Call for price! Not available online.

Select model: (shipping times are approximate)

Recommended Accessories

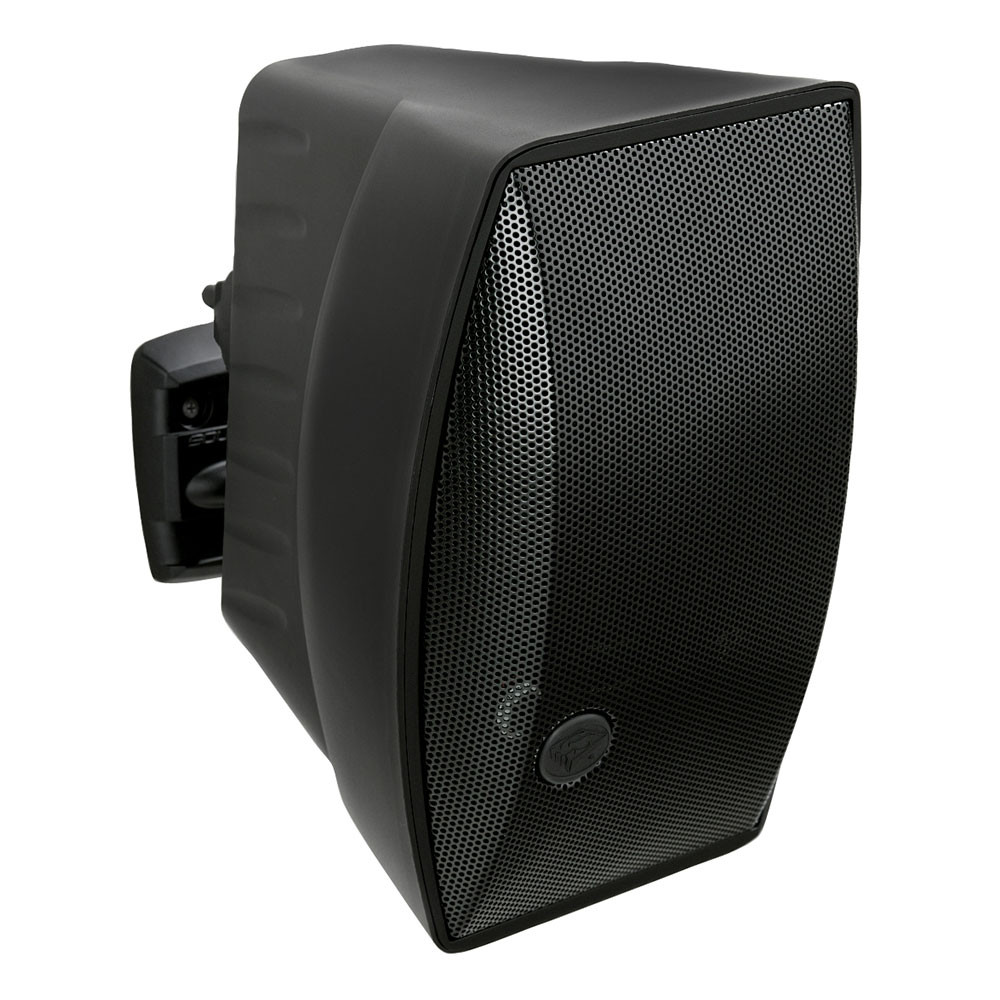

The SoundTube SM590I-II has a high-power output for long throw and high SPL requirements. One 5.25" polypropylene woofer and one 1.0 inch horn- loaded convex titanium dome tweeter mounted to a proprietary cast-alumi- num baffle and heat sink. 87.0 dB average sensitivity offers high output capabilities and reduced amplification costs. Includes weatherized components for indoor/outdoor applications. Easy-access, six-position selectable tap switch for 25-, 70.7- and 100-volt applications with transformer bypass position. Aluminum grille with powder-coat finish. Includes a tool-free SpeedLeverTM captured ball mounting system for a fast and secure installation. Vertical and horizontal pivoting offer precision aiming for indoor and outdoor applications. Pan and tilt capabilities. CE approved.

SoundTube SM590I-II Includes:

  • SM590I-II 5.25" High Power Coaxial Surface Mount Speaker
  • Corrosion-resistant captured ball mount
  • Safety cable
  • Euroblock connector
  • Terminal weather boot

SoundTube SM590I-II Specifications:

  • Frequency Response (-3 dB): 100 Hz – 22 kHz
  • Low Frequency(-10 dB): 69 Hz – 22 kHz
  • Sensitivity: 87 dB
  • Power Capacity RMS: 80 W
  • Max SPL dB @ 1 M: 106 dB
  • Nominal Impedance: 8 ohm
  • Transformer Options: 25 / 70.7 / 100 Volt option with a 8 Ohm direct
  • Tweeter: 1" / 25 mm Convex Aluminum with BroadBeamHP Waveguide
  • Woofer: 5.25"/ 130 mm Poly
  • Connections: 4-pin Euroblock
  • Dimensions: 12.48" H x 8.53" W x 12.01" D
  • Weight: 9.5 lbs
  • Optional Accessories:
    • Pole-mount adaptor (AC-SM-PMA5)
    • Bent shaft (AC-SM-BS5)
    • U-bracket (AC-SM-UB5)
