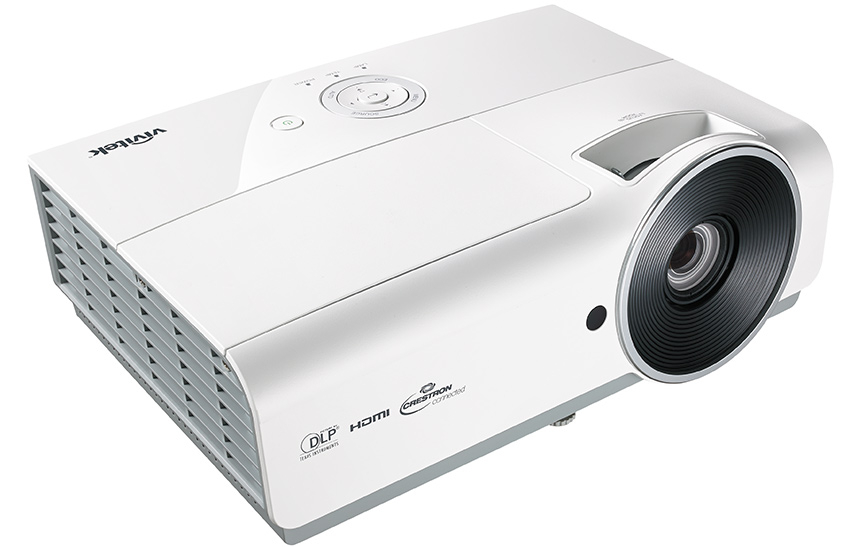

Vivitek DX813
3,500 Lumens XGA Projector


Call for price! Not available online.

Recommended Accessories

Thanks to 3,500 ANSI lumens of brightness and a contrast ratio of 15,000:1, Vivitek's DX813 projector delivers remarkable digital images with a high degree of vibrancy. Featuring native XGA resolution, the DX813 is made for a wide range of applications. At just over 3 kg, its light weight allows for easy transportation between conference rooms or external meetings. For quick lamp replacement, It offers top-load as well as sliding cover. Its lamp life of up to 7,000 hours in Eco mode results in an attractive cost of ownership. Furthermore, it comes with a sealed optical engine that minimizes the impact of dust and smoke. Finally, versatile connectivity ensures easy set up and connection to a wide variety of multimedia devices found in professional environments.

Vivitek DX813 Includes:

  • DX813 Projector
  • VGA Cable
  • User Manual (CD)
  • Quick Start Guide
  • Remote Controller (with battery)
  • Warranty Card

Vivitek DX813 Features:

  • Native XGA resolution and displays up to WUXGA
  • Bright 3,500 ANSI lumens with a high 15,000:1 contrast ratio
  • Energy efficient lamps that last up to 7,000 hours (in dynamic eco. mode)
  • 6-Segment (RYGCWB) color wheel for accurate and detailed images
  • Auto search filtering to quickly locate input signal source
  • Rated intensive use for color consistency over time*
    (*12 hours per day without yellowing or discoloration of image)
  • Variety of display connectivity options including: HDMI, VGA-in (2x), VGA-Out, S-Video, and Composite Video
  • VGA-out for display on a secondary monitor
  • User memory settings for such functions as display mode, 3D and resolution
  • 3D-Ready via DLP® Link™ and HDMI 1.4b Blu-Ray support for dazzling and realistic life-like images
  • Internal audio speaker delivers 10W of total audio power
  • RJ45/RS-232c for integration and system administration.
  • Integrated network monitoring and management solutions (product certified) including Crestron® RoomView™, Extron, AMX SSDP, and Telnet
  • Enhanced color and display adjustments
  • Top-loading, sliding cover for quick and easy lamp replacement
  • Sealed optical engine, minimizing the impact of dust and smoke
  • Anti-theft security features include: Kensington® security slot, security bar, and PIN lock keypad
  • 12V trigger for simple screen/projector automation

Vivitek DX813 Specifications:

  • Native Resolution: XGA (1024 x 768)
  • Brightness: 3500 ANSI Lumens
  • Contrast Ratio: 15,000:1
  • Max. Supported Resolution: WUXGA (1920 x 1200) @60Hz
  • Native Aspect Ratio: 4:3
  • Lamp Life and Type: 3,500/5,000/7,000 Hours (Normal/Eco.Mode/ Dynamic Eco Mode), 240W/190W
  • Display Type: DMD
  • Chip Size: 0.55"
  • Throw Ratio: 1.6- 1.92
  • Image Size (Diagonal): 25.6" - 256.4"
  • Projection Distance: 1 - 10m
  • Projection Lens: F2.5 - 2.72, f=17.81 - 21.35mm
  • Zoom Ratio: 1.2x
  • Offset (Based on Full Image Height): 113.9% (+/-5%)
  • Keystone Correction : +/- 40 Degree
  • Speakers: 10W (Mono)
  • Video Compatibility: SDTV (480i, 576i) / EDTV (480p, 576p) / HDTV (720p, 1080i, 1080p), NTSC (M, 3.58/4.43 MHz), PAL (B,D,G,H,I,M,N), SECAM (B,D,G,K,K1,L)
  • I/O Connection Ports: VGA-In (15-pin D-Sub) (2), HDMI, S-Video, Composite Video, Audio-In (Mini-Jack) (3), VGA-Out (15-pin D-Sub), RJ45, 12v Trigger, RS-232, USB A (1(for power)), USB miniB (1(for service)), Microphone (Mini-Jack)
  • Dimensions: 12.36" W x 8.5" H x 4.96" D (314 x 216 x 126mm)
  • Weight: 7.05 lbs (3.05 kg)
  • Noise Level: 36dB/32dB (Normal/Eco. Mode)
  • Power:
    • Supply: AC 100-240V, 50/60Hz
    • Consumption: 320W/260W (Normal/Eco mode), <0.5W (Standby Mode)
  • 3D Ready (DLP link, PC+Video): Yes
  • Warranty: Standard Warranty: 3 years projector / 1 year on lamp or 1000 hours whichever comes first
  • UPC Code: 814964339898
