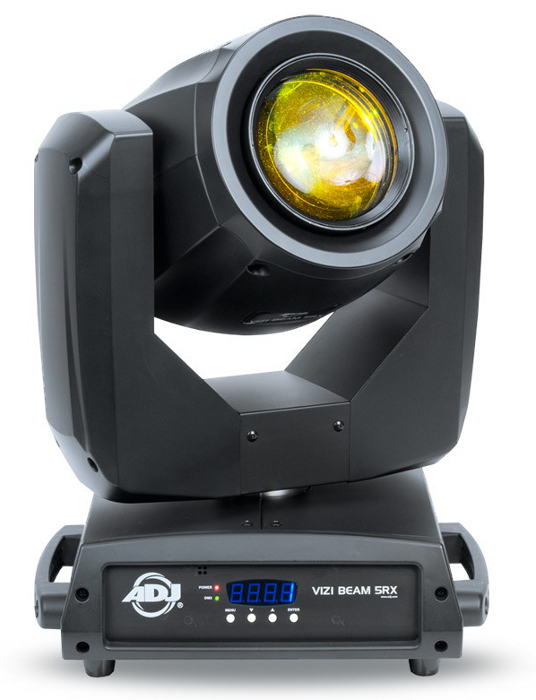

ADJ Vizi Beam 5RX
575W DMX Intelligent Moving Head Fixture


The Vizi Beam 5RX Moving Head fixture from ADJ features the revolutionary Philips® Platinum 5R lamp, motorized focus, PowerCon In/Out...
Learn More
Our Price: $1,199.99
List Price: $1,799.95
You save 33%!
Write the first review.
ADJ Vizi Beam 5RX
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The Vizi Beam 5RX Moving Head fixture from ADJ features the revolutionary Philips® Platinum 5R lamp, motorized focus, PowerCon In/Out, first filter, 8-facet prism and stepper motors for speed and accuracy.

The ADJ Vizi Beam 5RX features a motorized focus and PowerCon In/Out for daisy chaining the power (not available on the previous Vizi Beam 5R). Other professional features include: Frost filter to turn the hard edge beam to a wash, 8-facet prism, stepper motors for quick, precise movement.

The Vizi Beam 5RX Moving Head fixture is powered by the revolutionary Philips® Platinum 5R 189W discharge lamp technology (8000°K, 3,000 hr). The powerful Platinum 5R has an output comparable to a 575W fixture, with double the output of a 575W fixture. It also offers a flat, even spot field and even more saturation of colors. The Vizi Beam 5RX is much faster than previous ADJ moving heads because it is much lighter in weight and more compact than other moving heads in its class. It’s very tight, 5° beam with extreme light output makes it ideal for applications where a small beam is necessary.

ADJ Vizi Beam 5RX Features:

  • Philips® Platinum 5R Discharge
  • Micro-Stepping Motors for Smooth Color and Gobo Transitions
  • 2 DMX Channel Modes: 16 or 19 DMX channels
  • Independent gobo and color wheels
  • 17 static, fixed gobos + spot
  • 14 colors + white and Split Colors
  • 8-facet Prism with macros
  • Frost Filter
  • Strobe effect
  • Built-In Pan/Tilt Macros
  • Motorized focus
  • Pan/Tilt Invert
  • Digital Display for Address and Function Setting
  • Power Cord Daisy Chain*

NOTE: *With this feature you can connect the fixtures to one another using the PowerCon input and output sockets. The quantity that can be connected is 3 fixtures maximum for
V and 6 fixtures maximum for V. After the maximum fixtures has been reached, you will need to use a new power outlet. They must be the same fixtures. DO NOT mix fixtures.

ADJ Vizi Beam 5RX Specifications:

  • Gobo scroll mode
  • LED DMX 4-Button menu system
  • 5° beam angle
  • Auto X-Y repositioning
  • Gobo Shake effect
  • Pan: 540°
  • Tilt: 270°
  • Pan/Tilt Invert
  • 16-Bit Pan/Tilt Positioning
  • Shutter: Pulse effect; random strobe slow to fast
  • Electronic Dimming: 0% - 100%
  • Stepper motors with micro stepping
  • Omega Quicklock Brackets included
  • DMX: 3-pin XLR In/Out
  • LUX: 770000 @ 5M, 220000 @ 10M
  • Multi-voltage Operation: 100-240V, 50Hz/60Hz
  • Lamp: Philips® Platinum 5R 189W discharge, 8,000°K –3,000 hr. long life
  • Dimensions (LxWxH): 15.5” x 12.75” x 20.5” (394x325x522mm)
  • Weight: 42 lbs (19 kg.)
