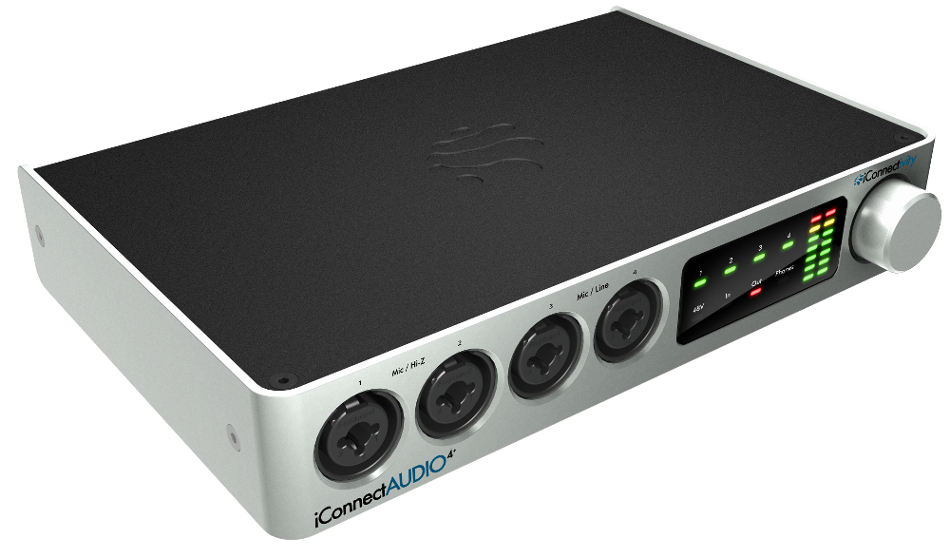

iConnectivity iConnectAUDIO4+
4x4 USB Audio/MIDI Interface with Multi-Host Connectivity

OUR PART #:  IC-AUDIO4

iConnectivity's iConnectAUDIO4+ 4x4 USB audio/MIDI interface is unique amongst smaller form factor audio interfaces as it offers dual USB outputs...
Learn More
Our Price: $299.99
List Price: $349.99
You save 14%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

iConnectivity iConnectAUDIO4+
Qty:
Usually ships in 7-14 business days.

Similar Products

iConnectivity's iConnectAUDIO4+ 4x4 USB audio/MIDI interface is unique amongst smaller form factor audio interfaces as it offers dual USB outputs, which allows it to be connected to two devices at once, including iOS devices and Mac/Windows PCs. This interface makes it easy to have your recording sessions located in multiple places at once without having to deal with transferring files back and forth, so if you want to take your session on the road and edit on your iPad while keeping a clean version on your recording computer, the iConnectAUDIO4+ allows you to do so with ease. Plus, this interface will charge an iOS device while it is connected, so you don't have to worry about draining the battery during those long sessions.

Not only do you get two USB outputs, there's also an onboard Host USB input, which allows for up to 8 external USB-MIDI devices to be connected to this interface via a class-compliant powered USB hub (sold separately). This means that if you've got an extensive collection of outboard sound modules or synthesizers, the iConnectAUDIO4+ can be your central hub to cut down on cable clutter while still ensuring access to all your gear.

On the front of the interface, you'll find its four XLR-1/4" combo jack inputs, which can handle microphone-, line-, and instrument-level signals, and phantom power is switchable on all four inputs if you are using condenser microphones. On its rear, there are four balanced 1/4" outputs along with a dedicated 1/4" headphone output with an independent mix. You also get a standard 5-pin DIN MIDI in and out, so if you've got MIDI gear that doesn't have a USB connection, you can still hook it up to without hassle.

With up to 24-bit/96 kHz AD/DA conversion, the iConnectAUDIO4+ offers high-resolution audio capabilities to complement its extensive featureset, which ensures that every recording you do – from a single voice to a full band – will sound pristine and noise-free.

iConnectivity iConnectAUDIO4+ Features:

  • Multi-host Device ports – use 2 computer devices (Mac/PC/iOS) at the same time
  • Host port for connecting up to 8 MIDI peripherals (with Class-compliant devices connected to a powered hub)
  • Audio and MIDI pass-Thru routes audio digitally between two computing devices
  • Standalone computer-less operation – mix/merge audio and host 5 pin DIN + USB class compliant MIDI
  • Four XLR–1/4" TRS combo analog inputs
  • Four Premium microphone preamplifiers with 48v phantom power
  • Four 1/4" TRS balanced analog outputs
  • 1/4" Headphone output with independent mix
  • 1 X 1 regular 5 pin DIN MIDI in/out
  • 29 routable MIDI ports: Mac, PC, iOS, 5 pin MIDI DIN and class compliant USB MIDI devices
  • Comprehensive audio mixing and routing between connected USB computing devices and analog outputs
  • iConfig software (Mac, Windows, iOS) makes it simple to set up filtering/routing/merging scenes – which are also stored in flash memory on the device
  • High-resolution audio - up to 24-bit/96 kHz AD/DA conversion
  • Capacitive touch user controls
  • Charges an iOS device

iConnectivity iConnectAUDIO4+ Specifications:

  • Microphone Inputs:
    • Gain: 0 - 60 dB (in 1 dB steps)
    • Frequency Response: 20 Hz - 20 kHz
    • SNR: 110 dB (1 kHz, 1.2 Vrms, BW: 22 Hz - 22 kHz, A-weighting, Unity gain)
    • THD+N: -99 dB (1 kHz, 1.2 Vrms, BW: 22 Hz - 22 kHz, A-weighting, Unity gain)
  • Line Inputs (Balanced):
    • Frequency Response: 20 Hz - 20 kHz
    • SNR: 111 dB (1 kHz, 10 Vrms, BW: 22 Hz - 22 kHz, A-weighting)
    • THD+N: -99 dB (1 kHz, 1.2 Vrms, BW: 22 Hz - 22 kHz, A-weighting)
    • Maximum Input Level: 11 Vrms, 23 dBu, 21 dBV (1 kHz, BW: 22 Hz - 22 kHz, A-weighting, 1% THD+N, SNR=116 dB)
  • Instrument Inputs:
    • Frequency Response: 20 Hz - 20 kHz
    • SNR: 95 dB (1 kHz, 5 Vrms, BW: 22 Hz - 22 kHz, A-weighting)
    • Maximum Input Level: 10 Vrms, 22 dBu, 20 dBV (1 kHz, BW: 22 Hz - 22 kHz, A-weighting, 1% THD+N, SNR=94 dB)
  • Line Outputs:
    • Maximum Output Level: 13 dBu, 11 dBV, 3.6 Vrms
    • SNR: 115 dB (1 kHz, BW: 22 Hz - 22 kHz, A-weighting)
    • THD+N: -112 dB (1 kHz, BW: 22 Hz - 22 kHz, A-weighting)
  • Headphone:
    • SNR: 100 dB (1 kHz, BW: 22 Hz - 22 kHz, A-weighting)
    • THD+N: -100 dB (1 kHz, BW: 22 Hz - 22 kHz, A-weighting)
    • Power Output into 30 Ohms per channel: 73 mW per channel
  • Digital Performance:
    • 24-bit resolution
    • A-D Dynamic Range: 102 dB (Single-ended)
    • D-A Dynamic Range: 106 dB
    • Supported Sample Rates: 44.1, 48, and 96 kHz
  • Minimum System Requirements:
    • Mac:
      • Mac OS X 10.4 or later
      • One free USB port
    • Windows:
      • Windows XP SP3 or later
      • One free USB port
    • iOS Devices:
      • iOS 4.2 or later
      • CoreMIDI-compatible app
      • Compatible with iOS devices requiring Lightning connection
