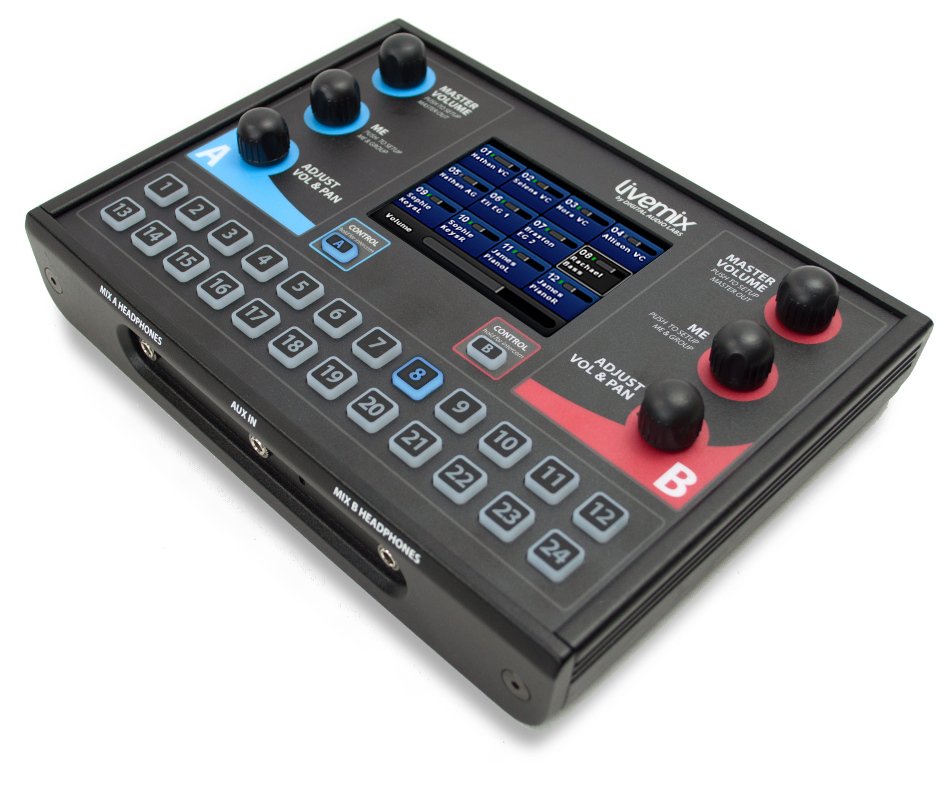

Livemix CS-DUO
Dual-Channel Personal Monitor Mixing Station with LCD Touchscreen

OUR PART #:  CS-DUO

The Livemix CS-DUO dual-channel personal monitor mixer provides two independent mixes per unit, reducing stage clutter.
Learn More
Our Price: $524.99
List Price: $629.99
You save 17%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Livemix CS-DUO
Qty:
Usually ships in 7-14 business days.

Similar Products

The Livemix CS-DUO dual-channel personal monitor mixer provides two independent mixes per unit, reducing stage clutter. This mixing station makes up part of Livemix's personal monitoring system and is designed to work in conjunction with the AD-24 input unit and MIX-16 central mixer (both sold separately).

The Livemix CS-DUO is extremely simple to use and lightning fast to set up. The innovative MirrorMix™ function allows you to use your own personal mixer to listen to and adjust the mix of any other personal mixer in the system. Even though it is designed to be easily operable, the CS-DUO is equipped with extensive features such as built-in ambient microphones, effects on every channel, and a metronome.

Livemix CS-DUO Features:

  • Two discrete personal monitor mixes per unit
  • 24 channels with DSP and additional DSP on master
  • Rugged frame with clearly labeled functions
  • LCD touchscren, tactile knobs and channel select buttons

Livemix CS-DUO Specifications:

  • Output Power & THD+N:
    • At 22 Ohms:  200mW @ 1% THD+N; 100mW @ 0.03% THD+N
    • At 32 Ohms:  250mW @ 1% THD+N; 100mW @ 0.014% THD+N
    • At 64 Ohms:  250mW @ 1% THD+N; 100mW @ 0.005% THD+N
    • At 300 Ohms:  130mW @ 1% THD+N; 100mW @ 0.003% THD+N
  • Frequency Response:  20 Hz - 22 kHz ±3dB
  • S/N Ratio:  103dB
  • Input Impedance (aux in):  7.5 kOhms
  • Crosstalk (left to right):  -103dB
  • Max Cable Length from MIX-16:  100 ft
  • Filter Q:
    • High Pass & Low Pass:  0.707
    • Peak/Dip:  1.2
  • Filter Cut/Boost Amount:  ±6dB
  • Ambient Mic Gain:  25dB
Two-Button Foot Pedal for CS-DUO
Livemix FP2 Two-Button Foot Pedal for CS-DUO
The Livemix FP-2 is a two-button foot pedal that allows for hands-free interaction with the Livemix CS-DUO two-channel monitor mixer, and two FP-2s can be used with each CS-DUO. The FP-2 connects to the CS-DUO with a standard TRS cable, ...
64.99 79.99 19

In Stock
Free Shipping Available
Dual-Position Mount for CS-DUO Personal Monitor Mixer
Livemix MT-1 Dual-Position Mount for CS-DUO Personal Monitor Mixer
The Livemix MT-1 allows you to mount a Livemix CS-DUO personal mixer (sold separately) on a standard microphone or music stand. It can be configured to mount on the top of a stand or on the pole, and has convenient cable management. ...
29.99 39.99 25

In Stock
