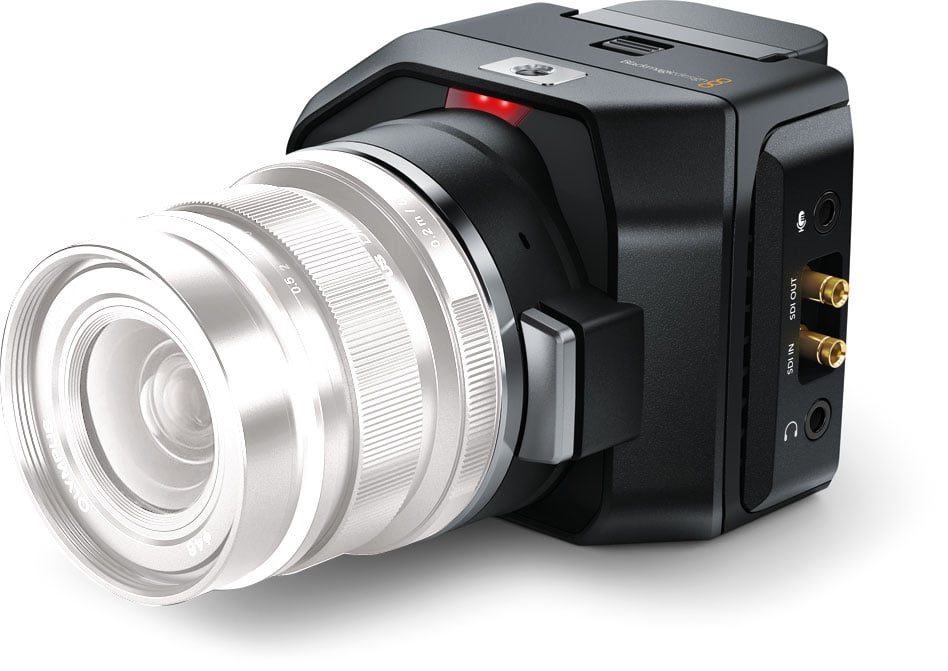

Blackmagic Design Micro Studio Camera 4K
Compact 4K Studio Camera Body

OUR PART #:  CINSTUDMFT/UHD/MR

The Blackmagic Design Micro Studio Camera 4K [model CINSTUDMFT/UHD/MR] is the world's smallest HD and Ultra HD live studio camera that can be remote controlled via SDI.
Learn More
Blackmagic Design Micro Studio Camera 4K Right
Blackmagic Design Micro Studio Camera 4K Left
Blackmagic Design Micro Studio Camera 4K Back

Click a thumbnail to see more images. (5 total)

Our Price: $1,295.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Blackmagic Design Micro Studio Camera 4K
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Blackmagic Design Micro Studio Camera 4K [model CINSTUDMFT/UHD/MR] is the world's smallest HD and Ultra HD live studio camera that can be remote controlled via SDI. Includes 6G-SDI, built in color corrector, talkback, tally, PTZ control, MFT lens mount and B4 lens control output. Fully controllable from ATEM switchers. The Micro Studio Camera 4K is an incredibly tiny Ultra HD studio camera that's perfectly designed for live production. You get a full Ultra HD resolution camera that can be used in HD and Ultra HD video formats and it can be fully controlled from the switcher via the SDI control protocol. Micro Studio Camera 4K includes powerful features such as built in color corrector, talkback, tally indicator, PTZ control output, built in microphones, backup battery, an adaptable MFT lens mount and B4 lens control output. This means Micro Studio Camera 4K is a true studio camera that is dramatically better quality than the biggest and most expensive studio cameras used today.

Lenses for this camera are sold separately. For more information on this and other products, please contact your Sales Pro.

Live Multi Camera Production - Broadcast-Quality Ultra HD That's Small Enough to Use Anywhere
The small size and completely open design of the Micro Studio Camera 4K makes it perfect for any live multi camera production. It's virtually invisible and can be hidden just about anywhere on set, giving you the ability to have more camera angles than ever before so you can create a more interesting program. You can even hide them on stage to get incredible shots of live performances or, because they're so small, safely fly them overhead during sporting events. It can also be used in the studio by rigging it with a professional broadcast lens and a Blackmagic Video Assist for monitoring.

Revolutionary Design - The World's Most Riggable Ultra HD Studio Camera
The Blackmagic Micro Studio Camera 4K is engineered with a super tough magnesium alloy core in a body that's not much larger than the lens mount itself. You can use affordable, high performance MFT lenses or add a B4 adapter to work with traditional broadcast lenses. The Micro Studio Camera's SDI program input accepts commands via the SDI connection from any ATEM switcher so you get remote control of camera settings, color balancing, black level, gamma, lens focus, iris, and zoom control and much more. The expansion port includes PTZ and B4 lens control outputs so you can remote control remote heads and broadcast lenses all from a single SDI connection.

Flexible Expansion Port - Completely Customizable Remote Control of Your Cameras
The Micro Studio Camera is perfect for remote use because it includes an expansion port with multiple control connections such as a PTZ serial output connection so you can use motorized heads, B4 data link output for controlling broadcast lenses and you can even build customized camera control solutions using the S.Bus input. The expansion connector uses a common DB-HD15 connector so you can easily make your own cables or use the breakout cable that's included. The expansion port also includes DC camera power in, LANC and reference input.

Ultra HD Image Sensor - True Broadcast-Quality High-Resolution Ultra HD Sensor
The Micro Studio Camera 4K includes an incredible quality broadcast grade Ultra HD sensor for amazing clarity and the finest textures. Ultra HD is even more important when you're working in HD because the extra sensor resolution completely eliminates any color loss from the sensor's bayer pattern so you get full bandwidth RGB HD color and superior sub pixel anti-aliasing for amazing fine image detail. The Micro Studio Camera 4K has a 6G-SDI connection so it works up to 30 frames per second in Ultra HD and can also be switched to 3G-SDI or HD-SDI so it can operate up to 1080p60. If you're working in HD or Ultra HD the Micro Studio Camera 4K can easily handle both.

Micro Four Thirds Lens Mount - Use a Range of MFT Lenses or Lens Adapters
Active MFT photo lenses are designed to be small, light weight and produce super sharp images at a much higher resolution than traditional video lenses which makes them perfect for Ultra HD. They can be remotely controlled using the return SDI program feed from your ATEM switcher or from the expansion port on the camera. You can even add a lens mount adapter to use your existing collection of Broadcast B4 lenses or even feature film style PL lenses.

Broadcast Connections - SDI In and Out, HDMI Monitoring, Headphone, and Microphone Input
The Micro Studio Camera 4K includes a full size HDMI connector for local video monitoring so you can add a monitor to the camera or quickly plug in a local monitor when you're setting the position of a remote camera or changing camera menus. There is a mini BNC connector for the main camera SDI output and a mini BNC connector for the camera program input which can be used to provide reference, control camera CCU settings, return talkback audio and tally status. There is a 3.5mm mic input for external microphones and a 3.5mm headphone socket that supports an iPhone compatible mic so you can use it for talkback.

Remote Camera Control - Control Cameras from Your ATEM Switcher
The Blackmagic Micro Studio Camera 4K works with standard SDI camera control protocols. That means you can connect the program feed from any model of ATEM Switcher to the camera's SDI input and remotely control any setting in the camera, color correct or even change focus, iris and zoom on supported lenses. Broadcast cameras traditionally have basic CCU color balance controls, however the Micro Studio Camera 4K includes a full DaVinci primary color corrector so you get so much more than simple CCU controls because you can also do a full color grade in the camera. Now the technical director can fine tune the settings and match the looks of cameras quickly.

Quick Camera Settings - Quickly Access the Most Important Settings
The built in row of buttons along the front of the camera gives you quick and easy access to power, menu navigation and settings. Because they're on the front, the buttons are always accessible, even when rigged into tight locations. Simply plug into any HDMI display such as a TV or the portable Blackmagic Video Assist so you can see the camera's menus and you can easily change any of the camera’s settings. You can use the menus to set the camera up and then that allows the switcher to take control of the camera via the SDI program input.

Great Quality Sound - High Quality Microphones Built-In or Use External Microphones
The built in stereo microphones are engineered for high quality audio and feature a mechanical design that helps reduce unwanted wind noise so you get great sounding audio. When you need better audio in windy outdoor conditions such as sporting events, you can plug in an external mic with a wind sock to capture clean sound. The camera instantly switches to the external microphone when one is connected and can work with both line or mic levels. Whether you’re using the built in microphones or attaching one from the outside, the audio is embedded into the SDI video output so you get perfect audio and video sync.

Built In Talkback - Two-Way Communication with the Entire Crew
The Micro Studio Camera 4K includes an iPhone style headphone socket with mic so you get full talkback support. You can also use standard noise canceling headsets, like those from Bose, Sennheiser, and more to hear the technical director without distraction from the audience. Because the camera has an SDI connection to the switcher and an SDI connection from the switcher the talkback audio is embedded into channels 15 and 16 of the SDI signal and you get two way communication. If you're setting up fixed cameras, talkback makes it easy to walk from camera to camera and plug in your headset to communicate with the rest of the crew to get the best angles and framing.

Battery or External Power - Use DC Power or Removable Batteries
The camera includes a 12V to 30V DC power input so you can power the camera using any standard power supply or even a simple plug pack. There is a standard LP-E6 Canon compatible battery receptacle on the back of the camera so you can add a battery to get local back up power if the power supply gets accidentally disconnected during a critical live broadcast. The power input is located on the expansion port so you can simply connect power to the breakout cable or you can make a custom cable so you can have multiple camera connections over longer distances and all down a single cable loom.

Blackmagic Design Micro Studio Camera 4K Specifications:

Camera Features

  • Sensor Size
    13.056mm x 7.344mm
  • Shooting Resolutions
    3840 x 2160, 1920 x 1080
  • Frame Rates
    HD 1080p23.98, 24, 25, 29.97, 30, 50, 59.97, 60, 1080i50, 59.94, Ultra HD 2160p23.98, 24, 25, 29.97, 30
  • Focus
    Remote focus control via expansion connector or ATEM Switcher CCU protocols via SDI when using compatible lenses.
  • Iris Control
    Iris control via Up and Down buttons, remote control via expansion connector or ATEM Switcher CCU protocols via SDI when using compatible lenses.
  • Lens Mount
    Active MFT mount
  • Controls
    5 control buttons including Set, Up, Down, Menu, and Power.
  • Microphone
    Integrated stereo microphone, active when camera is recording.
  • Mounting Options
    1 x 1/4" (top), 3 x 1/4" (bottom)

Connections

  • SDI Video Output
    1 x 6G-SDI 10-bit 4:2:2 via DIN 1.0/2.3 connector.
  • SDI Video Input
    1 x 6G-SDI 10-bit 4:2:2 via DIN 1.0/2.3 connector.
  • SDI Audio Output
    2 channel embedded audio support in SDI stream.
  • Expansion Port:
    • DB-HD15 serial connector provides support for:
      • Power input
      • LANC input
      • 1 x S.Bus channel input
      • PTZ output
      • B4 lens control output
      • Genlock input
  • Audio Input
    1 x 3.5mm stereo audio mic or line level.
  • Audio Output
    1 x 3.5mm stereo connector for stereo headphones, compatible with iPhone headsets for talkback.
  • Remote Control
    Remote control over SDI via ATEM Switcher CCU protocols or via expansion port using LANC or S.Bus.
  • Computer Interface
    USB Mini-B port for software updates and configuration.

Standards

  • SDI Compliance
    SMPTE 292M, SMPTE 424M, Draft SMPTE 2081-1
  • SDI Audio Sampling
    Television standard sample rate of 48kHz and 24-bit

Software

  • Software Included
    Blackmagic Camera Setup

Operating Systems

  • Mac Icon
    Mac OS X 10.9 Mavericks, Mac OS X 10.10 Yosemite or later.
  • Windows Icon
    Windows 7 or Windows 8.

Power Requirements

  • Battery Type
    Canon LP-E6 (not included)
  • Battery Life
    Approximately 1 hour 10 minutes
  • External Power Input
    12-20V

Environmental Specifications

  • Operating Temperature
    0° to 40° C (32° to 104° F)
  • Storage Temperature
    -20° to 45° C (-4° to 113° F)
  • Relative Humidity
    0% to 90% non-condensing

What's Included

  • Blackmagic Micro Studio Camera 4K
  • Expansion cable
  • Turret dust cap
  • 12V AC Adapter

Warranty

  • 12 Month Limited Manufacturer's Warranty
