Listen Technologies LR-5200-IR
Advanced Intelligent DSP IR Receiver

OUR PART #:  LR-5200-IR

The LR-5200-IR-P1 makes it easy to order all the components you need for an exceptional listening experience.
Learn More
Our Price: $209.00
List Price: $229.00
You save 9%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Listen Technologies LR-5200-IR
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The LR-5200-IR-P1 makes it easy to order all the components you need for an exceptional listening experience. The package includes the LR-5200-IR iDSP receiver, and universal ear speaker, making it ideal for personal use in venues with existing IR assistive listening systems.

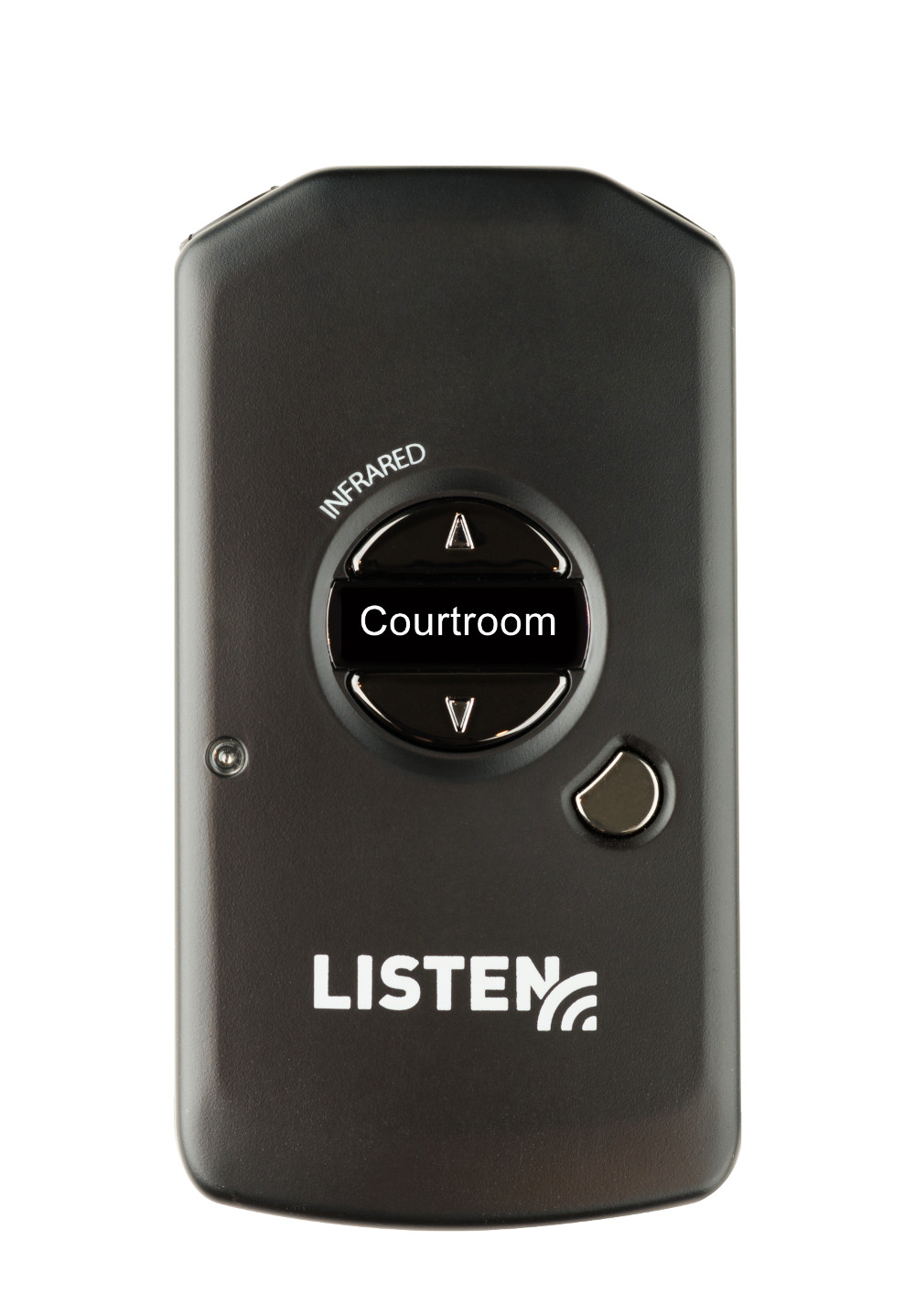

The LR-5200-IR is a high performance IR receiver with extreme sensitivity, providing the best pickup and range of any device of its kind. iDSP is the smallest device of its kind, making it easy for end users to wear and operate, and easier for the venues to dispense, store and maintain. The integrated neck lanyard with DSP loop driver improves the listening experience for T-coil users, and the advanced green battery technology dramatically reduces costs of ownership while trimming the number of batteries in landfills. A field replaceable Lithium-ion battery is included with the unit.

The LR-5200-IR has an OLED display which shows unique channel names, battery status, channel status, volume status and charge activation. Listen’s programmable channel select button allows users to cycle through active channels, or seek/lock to a channel. Connect the iDSP neck lanyard or ear phones via two 3.5 mm output jacks (receivers can be shared). The Micro USB connection is used with the free iDSP software suite for set up, programming, inventory management, firmware updates and charging via any standard USB port. The LR-5200-IR is compatible with all iDSP accessories.

The result is an exceptional listening experience in places where it’s hard to hear - theaters, lecture halls, concert venues, houses of worship, and more.

Listen Technologies LR-5200-IR Includes:

  • One (1) LR-5200-IR Advanced Intelligent DSP IRReceiver
  • Quick start guide
  • Non-proprietary field replaceable Lithium-ion battery

Listen Technologies LR-5200-IR Features:

  • High performance IR receiver with extreme sensitivityproviding the best pickup and range of any device of its kind
  • Listen’s programmable channel select button allows user to cycle throughactive channels, seek to or lock to a channel
  • Integrated neck loop / lanyard with DSP loop driver improves the listeningexperience for T-coil users
  • Smallest device of its kind makes it easier to wear and for venues todispense, store and maintain
  • OLED display which shows unique channel names, battery status, channelstatus, volume status and charge activation
  • Can be worn around the neck or with the belt clip, making it the mostdiscreet listening device on the market
  • Advanced green battery technology dramatically reduces costs of ownershipand hassles while reducing the number of batteries in the landfill
  • Use for multi-channel applications where the users need the convenience ofchanging the channels themselves

Listen Technologies LR-5200-IR Specifications:

  • Audio:
    • System Signal to Noise Ratio: Mono: > 60 dB, Stereo: > 52 dB
    • System Frequency Response: 63 Hz - 15 kHz (+/- 3 dB)
    • Audio Output Jacks: Two (2) 3.5 mm (0.14 in.) connectors, unbalanced, 0 dBu nominal output level, 16 mW maximum, impedance 32 ohm, accepts mono or stereo phone plug or LA-430 Intelligent Ear Phone/Neck Loop Lanyard
    • System Distortion: < 2% total harmonic distortion (THD) at 80% deviation
  • Controls:
    • User Controls: Power on/off, volume up/down, Listen button for end user channel selection
    • Set-up Controls: Press and hold up/down volume buttons for 5 seconds to enter channel adjust, use up/down to select channel
    • Programming: Via software and USB port, Auto Seek, Jack Sense, Squelch, Auto Power, Auto Off, Stereo, Brightness,
    • Channel Name, Channel button, Channel Lock
  • Indicators:
    • Display: OLED - Channel designation, battery level, unit number, charging status, volume status
    • LED: Flashes when batteries are low or to indicate charging, solid when fully charged
  • RF:
    • Carrier Frequencies: 2.3 MHz, 2.8 MHz, 3.3 MHz, 3.8 MHz
    • Modulation: FM Wideband, +/- 50 kHz deviation max, 50 uS de-emphasis
    • Number of Channels: (4) selectable channels
    • Frequency Accuracy: +/- .005% stability 32 to 122 ºF (0 to 50 ºC)
  • IR:
    • Squelch: Programmable in 20 steps, automatic on loss of IR signal
    • Power Save Mode: Turns unit off after a specified time of no IR signal, default is 30 minutes
    • Sensitivity: Better than one (1) nW/cm2 @40 dB SNR
    • Coverage Area: 30,000 ft² (2787 m²) single channel with LT-84/LA-141 or 40,000 ft² (3716 m²) single channel with LT-82/LA-140
  • Power:
    • Battery Life: 8 Hours of typical use
    • Power Supply: Micro USB connector, 5 V, 500 mA
    • Battery Type: Lithium Ion
    • Battery Charging Time: Fully charged in 2.5 Hours
  • Physical:
    • Dimensions (H x W x D): 3.75 x 2.0 x 0.64 in. (9.6 x 5.0 x 1.7 cm)
    • Unit Weight with Batteries: 2.8 oz. (79.4 g)
    • Unit Weight: 1.9 oz. (53.9 g)
    • Shipping Weight: 3.5 oz. (99.2 g) with a 1 lbs. (0.45 kg) minimum
    • Dimensions with Belt Clip: 3.75 x 2.0 x 0.80 in. (9.6 x 5.0 x 2.1 cm)
    • Color: Flat Black
  • Environmental:
    • Temperature - Storage: (-) 4 to 122 °F (-20 to 50 °C)
    • Temperature - Operation: 14 to 104 ºF (-10 to 40 ºC)
    • Relative Humidity: 0 to 95% relative humidity, non-condensing
