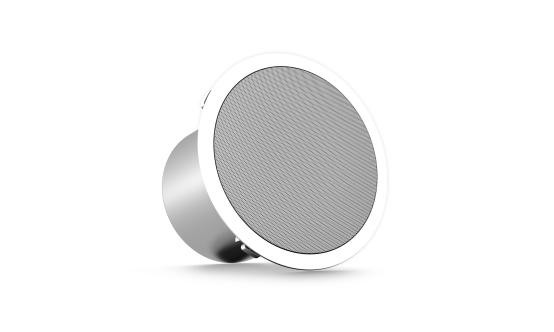

Turbosound TCSC50T
5" 60W 2-Way Full Range Ceiling Speaker with Line Transformer

OUR PART #  TCSC50T

Our Price: $109.00
List Price: $125.35
You save 13%! (Low Price Guarantee)
In Stock

The TURBOSOUND TCS-C50T is a high quality passive 240 Watt two way full range ceiling loudspeaker consisting of a high excursion 5” low frequency driver with high temperature voice coil and a 1” ferrofluid cooled neodymium soft dome tweeter, matched with an internal passive crossover network, in an easy-mount paintable ABS ceiling frame with a perforated mesh grille.

The TCS-C50T has a usable frequency range of 75 Hz to 22 kHz and features a wide, conical 180° dispersion pattern suitable for all high quality background music and speech applications. The front baffle incorporates an integral tuned port to optimise the low frequency performance of the loudspeaker, and the low distortion high frequency waveguide is designed to increase output and ensure even dispersion. The TCS-C50T is supplied as standard with an internal line transformer for use on all 70 Volt and 100 Volt line distributed systems, offering multiple power taps plus a 16 Ohm low impedance setting which can be selected via an easily accessible rotary switch located on the front baffle behind the speaker grille. A four pole Phoenix* connector with steel cover and strain relief provides connection to the speaker and accepts fire rated cable.

An optional universal ceiling mount system, consisting of two tile rails and a ‘C’ plate, designed to fit into European or North American ceiling grids is available for this ceiling speaker (sold separately). The TCS-C50T conforms to BS5839 fire prevention standards as well as UL2043 for North America, and IEC/EN60849.

Turbosound TCSC50T Features:

  • Compact 2 way full range ceiling loudspeaker for installation applications
  • 60 Watts continuous, 240 Watts peak power
  • High excursion 5" low frequency driver with high temperature voice coil
  • 1" ferrofluid cooled neodymium high frequency driver
  • Multiple transformer taps for 70 V and 100 V line systems or 16 Ohm direct input
  • Low distortion waveguide provides 110º coverage
  • UL94 V-0 rated ABS front with plated steel fire can enclosure
  • Semi matt white finish fits unobtrusively in any environment
  • Powder coated perforated steel mesh grille with dust protection
  • Phoenix connector with steel cover and strain relief accepts fire rated cable
  • 3-Year Warranty Program from Turbosound
  • Designed and engineered in England

Turbosound TCSC50T Specifications:

  • Dimensions (H x W x D): 268 mm (10.6") dia x 83mm (3.3") deep excluding backbox x 219mm (8.6") including backbox
  • Net Weight: 3.4 kg (7 lbs)
  • Components: 1 x 5" (127 mm) LF Driver, 1 x 1"(25 mm) Tweeter
  • Frequency Response: 80 Hz - 18 kHz ±3 dB
  • Dispersion: 110° H x 110° V @-6 db points
  • Sensitivity (1 W @ 1 M): 92 dB (half space), 90db (full space), 1 Watt @ 1 metre (average)
  • Power Handling: 60 Watts Continuous, 240 Watts Peak
  • Calculated Max SPL: 110 dB Continuous, 116 dB Peak
  • Nominal Impedance: 16 Ohms Nominal
  • Construction: Paintable injection moulded LSZHABS UL94V0
  • Grille: Powder coated perforated steel
  • Connectors: Phoenix 4-way connector for input and link connections

Turbosound TCSC50T
5" 60W 2-Way Full Range Ceiling Speaker with Line Transformer

OUR PART #  TCSC50T

Product Information:

The TURBOSOUND TCS-C50T is a high quality passive 240 Watt two way full range ceiling loudspeaker consisting of a high excursion 5” low frequency driver with high temperature voice coil and a 1” ferrofluid cooled neodymium soft dome tweeter, matched with an internal passive crossover network, in an easy-mount paintable ABS ceiling frame with a perforated mesh grille.

The TCS-C50T has a usable frequency range of 75 Hz to 22 kHz and features a wide, conical 180° dispersion pattern suitable for all high quality background music and speech applications. The front baffle incorporates an integral tuned port to optimise the low frequency performance of the loudspeaker, and the low distortion high frequency waveguide is designed to increase output and ensure even dispersion. The TCS-C50T is supplied as standard with an internal line transformer for use on all 70 Volt and 100 Volt line distributed systems, offering multiple power taps plus a 16 Ohm low impedance setting which can be selected via an easily accessible rotary switch located on the front baffle behind the speaker grille. A four pole Phoenix* connector with steel cover and strain relief provides connection to the speaker and accepts fire rated cable.

An optional universal ceiling mount system, consisting of two tile rails and a ‘C’ plate, designed to fit into European or North American ceiling grids is available for this ceiling speaker (sold separately). The TCS-C50T conforms to BS5839 fire prevention standards as well as UL2043 for North America, and IEC/EN60849.

Turbosound TCSC50T Features:

  • Compact 2 way full range ceiling loudspeaker for installation applications
  • 60 Watts continuous, 240 Watts peak power
  • High excursion 5" low frequency driver with high temperature voice coil
  • 1" ferrofluid cooled neodymium high frequency driver
  • Multiple transformer taps for 70 V and 100 V line systems or 16 Ohm direct input
  • Low distortion waveguide provides 110º coverage
  • UL94 V-0 rated ABS front with plated steel fire can enclosure
  • Semi matt white finish fits unobtrusively in any environment
  • Powder coated perforated steel mesh grille with dust protection
  • Phoenix connector with steel cover and strain relief accepts fire rated cable
  • 3-Year Warranty Program from Turbosound
  • Designed and engineered in England

Turbosound TCSC50T Specifications:

  • Dimensions (H x W x D): 268 mm (10.6") dia x 83mm (3.3") deep excluding backbox x 219mm (8.6") including backbox
  • Net Weight: 3.4 kg (7 lbs)
  • Components: 1 x 5" (127 mm) LF Driver, 1 x 1"(25 mm) Tweeter
  • Frequency Response: 80 Hz - 18 kHz ±3 dB
  • Dispersion: 110° H x 110° V @-6 db points
  • Sensitivity (1 W @ 1 M): 92 dB (half space), 90db (full space), 1 Watt @ 1 metre (average)
  • Power Handling: 60 Watts Continuous, 240 Watts Peak
  • Calculated Max SPL: 110 dB Continuous, 116 dB Peak
  • Nominal Impedance: 16 Ohms Nominal
  • Construction: Paintable injection moulded LSZHABS UL94V0
  • Grille: Powder coated perforated steel
  • Connectors: Phoenix 4-way connector for input and link connections
