Product Overview
Pro-grade, rack-mountable digital wireless functionality in an easily-expandable system.

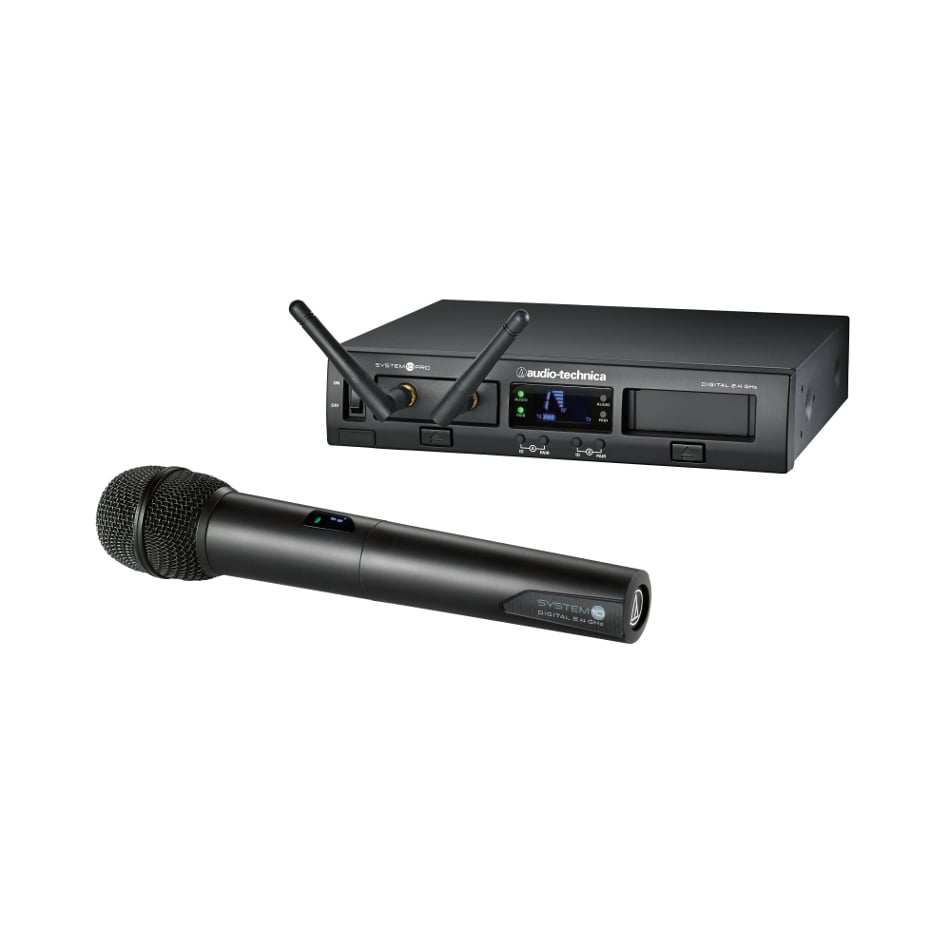

Part of the System 10 PRO wireless series, the ATW-1302 includes a receiver chassis with rack-mount adapters, one receiver unit with corresponding rack-mounting brackets/RJ-12 cable/AC adapter, plus one handheld cardioid dynamic microphone/transmitter. Both the receiver chassis and transmitter feature easy-to-read displays.
System 10 PRO Rack-Mount
Providing the same interference-free operation in the 2.4GHz range (outside the TV bands) as the original System 10 wireless system, the System 10 PRO Rack-Mount system further expands upon the original's features and versatility. Among those features is a durable half-rack chassis equipped to house 2 receiver units that can be operated locally -or- released from the chassis and mounted in a remote location (up to 328 feet away) with operation performed via Ethernet cable. Up to 5 chassis (10 receiver units) can be linked using the RJ-12 cable included with each system, creating a stable, multichannel system with simultaneous use of up to 10 channels (additional chassis and receiver units sold separately).
The PRO Rack-Mount, like all System 10 wireless products, features easy setup, 24-bit operation, clear, natural sound quality, and 3 levels of diversity assurance — frequency, time, and space:
- Frequency Diversity sends the signal on two dynamically-allocated frequencies for interference-free communication
- Time Diversity sends the signal in multiple time slots to maximize immunity to multipath interference
- Space Diversity uses two antennas on each transmitter and receiver unit to maximize signal integrity
Includes
- ATW-RC13 receiver chassis, with:
- Power supply
- AC adapter
- Link cable
- Rack-mount adapters
- Joining plate
- Rubber feet
- ATW-RU13 receiver, with:
- AT8690 receiver unit rack-mount adapters
- RJ-12 cable
- AC adapter
- ATW-T1002 handheld dynamic unidirectional microphone/transmitter
Features
- Up to 5 chassis (ten receiver units) can be linked and used simultaneously
- Each receiver unit can be paired with up to 10 transmitters, allowing users to instantly switch between different transmitter configurations
- Chassis’ System ID Display shows RF signal level, system ID, transmitter battery level, and system link status
- Automatic frequency selection for seamless, interference-free operation
- Extremely easy operation with instantaneous channel selection, sync, and setup
- Three levels of diversity assurance: frequency, time and space
- Ground-lift switch helps eliminate audible hum caused by ground loops
Specifications
- Overall System:
- Operating Frequencies: 2.4GHz ISM band
- Dynamic Range: > 109dB (A-weighted), typical
- Total Harmonic Distortion: < 0.05% typical
- Operating Range: 200ft (60m) Open range env. with no interfering signals
- Operating Temperature Range: 32°F to 104°F (0°C to +40°C), Note: battery performance may be reduced at very low temperatures
- Frequency Response: 20Hz - 20kHz (Depending on microphone type)
- ATW-RC13 Receiver Chassis:
- Maximum Output Level:
- XLR, balanced: 0dBV
- ¼" (6.3mm), unbalanced: +6dBV
- Power Supply: 100 - 240VAC (50 / 60Hz) to 12VDC, 0.5A, power supply switched mode external
- Dimensions (W x H x D): 8.26" x 1.73" x 6.67" (209.8 x 44 x 169.3mm)
- Net Weight: 33.2oz. (940g)
- Remote receiver connector: RJ-45
- Link Connector: RJ-12
- ATW-RU13 Receiver Unit:
- Receiving System Diversity (frequency/time/space)
- Dimensions (W x H x D): 2.24" x 0.75" x 3.06" (57 x 19 x 77.6mm)
- Net Weight: 2.3oz. (64g)
- Remote receiver connector: RJ-45
- Mounting Thread Insert: ¼" x 20
- ATW-T1002 handheld mic/transmitter:
- RF Power Output: 10mW
- Spurious Emissions: Compliant with federal and national regulations
- Batteries: (2) 1.5V AA (sold separately)
- Battery Life: > 7 hours (alkaline) Battery
- Dimensions (L x Dia): 10.03" x 1.97" (254.8 x 50mm)
- Net Weight, without batteries: 9.9oz. (280g)
- Accessory Included: AT8456a Quiet-Flex™ stand clamp
- Note: specifications and further information can be found within the items located under the "Documentation" tab above.
