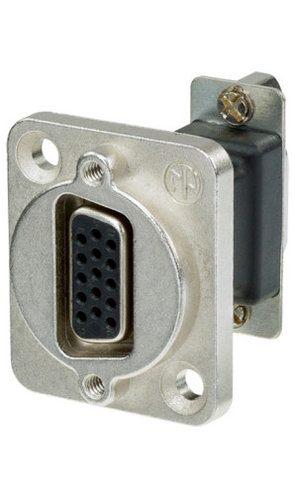

Neutrik NADB15FF
D-Sub 15-Pin Female to Female Feed Through

OUR PART #:  NADB15FF

The Neutrik NADB15FF is a female-to-female 15 pole D-Sub feedthrough in D-shape nickel housing. It's ideal for audio networking and integration of equipment into video systems.
Learn More
Our Price: $19.48
List Price: $26.74
Save up to 39% when you order by quantity!
  • Buy 25: $17.59 each.
  • Buy 50: $16.97 each.
  • Buy 100: $16.34 each.
Write the first review.

Related Products

The Neutrik NADB15FF is a female-to-female 15 pole D-Sub feedthrough in D-shape nickel housing. It's ideal for audio networking and integration of equipment into video systems.

Neutrik NADB15FF D-Sub 15-Pin Female to Female Feed Through Specifications:

  • Electrical:
    • Contact resistance: 30 mOhm (inner)
    • Insulation resistance: > 5 GOhm
    • Number of electronical contacts: 15
    • Rated current per contact: 3 A
    • Rated voltage: 50 V ac
    • Dielectric strength: > 0.5 kVac
  • Mechanical:
    • Wiring: Feedthrough
    • Chassis shape: D
  • Material:
    • Contact plating: Au
    • Contacts: Brass (CuZn39Pb3)
    • Insert: Steel, tin-plated, PBT
    • Shell: Zinc diecast (ZnAl4Cu1)
    • Shell plating: Nickel
  • Environmental:
    • Flammability: UL 94 V-0
    • Temperature range: -25 °C to +85 °C
