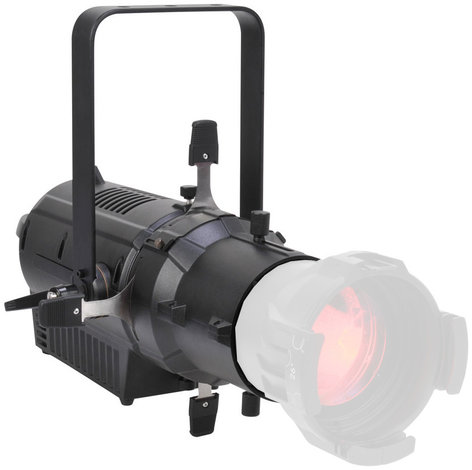

Elation Pro Lighting COLOUR 5 Profile
180W RGBAM LED Ellipsoidal Fixture

OUR PART #:  COLOUR-PROFILE-5

The Elation COLOUR 5 Profile Ellipsoidal features a 180W RGBAM (Red, Green, Blue...
Learn More
Our Price: $1,280.00
List Price: $1,600.00
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Elation Pro Lighting COLOUR 5 Profile
Qty:
In Stock

Similar Products

The Elation COLOUR 5 Profile Ellipsoidal features a 180W RGBAM (Red, Green, Blue, Amber, Mint) LED engine, >94CRI, 4,100 total lumens, with 19°, 26°, 36°, and 50° interchangeable lens options (sold separately ), (4) blade manual framing shutters, manual focus, supports B size metal HT transparency gobos, DMX-controlled electronic strobe, dimming, and dimming curves, flicker free operation for TV and film, 5-pin DMX and powerCON in/out connections, (4) button LCD control display panel, an integrated rigging yoke, and a multi-voltage universal auto switching power supply (100-240v).

NOTE: Lenses for the COLOUR 5 Profile are sold separately . Please see "Recommended Accessories"above for lens options.

Elation COLOUR 5 Profile Includes:

  • COLOUR 5 Profile RGBAM LED ellipsoidal
  • 1x powerCON cable
  • 1x 5-pin DMX cable
  • 1x safety cable

Elation COLOUR 5 Profile Features:

  • High CRI >94, 4,100 Total Lumens with 26° lens (sold separately)
  • Interchangeable Lens Options - 19°, 26°, 36°, 50° - all sold separately
  • 4x Blade Manual Framing Shutters
  • Variable Dimming Curve Modes

Elation COLOUR 5 Profile Specifications:

  • Source:
    • 180W RGBAM (Red/Green/Blue/Amber/Mint) LED Engine
    • 50,000 Hour Average LED Life
  • Effects:
    • Electronic Strobe and Dimming
    • Variable Dimming Curve Modes
  • Gobos: Supports "B" Size Metal, HT Transparency Gobos*
    *Gobos andHolder not included.
  • Control / Connections:
    • Multiple DMX Channel Modes
    • 4-Button Control Panel
    • LED Menu Display
    • 5-pin DMX In/Out
    • powerCON In/Out
  • Dimensions (LxWxH): 24.3" (26.5" fully extended) x 12.2" x 15.7" (618 (674)  x 310 x 398 mm)
  • Weight: 21 lbs (9.5 kg)
  • Electrical / Thermal:
    • AC 100-240V - 50/60Hz
    • 225W Max Power Consumption
    • 14° to 113°F (-10° to 45°C)
  • Approvals / Ratings: CE | cETLus | IP20
  • Installation:
    • Rigging: Integrated Yoke
    • Working Position: Any (360°)
