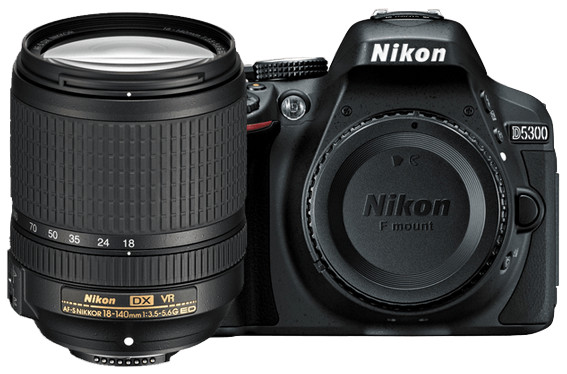

The Nikon D5300 DSLR Kit comes with the camera body in black paired with the Nikon AF-S DX NIKKOR 18-140mm f/3.5-5.6G ED VR Lens.
D5300 Camera Body
The Nikon D5300 is a Wi-Fi®-enabled ultra-high-resolution Nikon HD-SLR. With built-in Wi-Fi for photo sharing to your smartphone or tablet, GPS and mapping, a cutting edge 24.2-megapixel image sensor, an extra-large swiveling Vari-angle LCD and more, D5300 brings an outstanding new level of image quality and capabilities in a compact, ergonomic design. Pair it with any NIKKOR lens—like the outstanding AF-S DX NIKKOR 18-140mm f/3.5-5.6G ED VR kit lens—and unleash the full potential of its innovative image sensor. Your photos will be richer, truer to life than most photos you've seen. HD video will have a stunning cinematic look, a level of sharpness and clarity that ignites on ultra-high-resolution tablets, laptops and TVs. And the first time you use your smartphone or tablet to instantly share photos from the D5300, you'll realize the game has truly changed.
Your life in breathtaking clarity - A new level of image quality
The sharpness, clarity and richness of colors in the D5300's photos and Full HD videos is nothing short of astounding. A recent design innovation allows the D5300's 24.2-megapixel DX format CMOS image sensor* to capture pure, lifelike images. Enlarge or crop your photos without losing any sharpness or detail—a feat not possible with most smartphones. Pair that capability with any exceptional NIKKOR lens, marvels of clarity and sharpness in their own right, and you'll experience the image quality your memories deserve.
*Exquisite detail reproduction realized by an image sensor unit designed without an optical low-pass filter.
Share stunning images - A new level of connectivity
With built-in Wi-Fi and GPS, the D5300 is the first in an exciting new generation of connected Nikon D-SLRs. Wirelessly connect to D5300 with your smartphone or tablet, then browse the photos on D5300's memory card, import your favorites and instantly email them, text them or post them online. While connected, your smart device can also act as a remote monitor for the D5300. See what the camera sees and even fire the shutter—perfect for group shots and self portraits! When traveling, built-in GPS geotags all of your shots. Create exciting travel journals, find nearby Points of Interest and easily share your location data when posting photos on Facebook or Flickr.
Take it on every outing - Compact, lightweight, rugged and comfortable
Don't let the small size of the D5300 fool you—it delivers big-camera quality and capabilities. Like all Nikon D-SLRs, the D5300 was designed for ergonomics—every button and dial was carefully placed for comfortable, efficient operation. Yet it's big in all the right places, like its 3.2-inch swiveling Vari-angle LCD and its 24.2-megapixel DX-format CMOS image sensor. You'll take the D5300 on every adventure, which means you'll bring home more stunning views of your travels.
Shoot from any angle - Extra-large swiveling Vari-angle display
The D5300's extra-large ultra-high resolution Vari-angle LCD swivels 180° so you can shoot from exciting new angles. Hold the camera overhead for great shots over a crowd. Hold the camera down low for a fun face-to-face perspective of your pet. And create some of your best selfies yet—frame a stunning new profile pic, then upload it right to web, thanks to Wi-Fi connectivity!
Focus where you want it
Whether shooting stationary subjects, candid photos, high-speed action or Full HD video, the D5300 keeps subjects in focus. Its 39-point high-density autofocus system with 9 cross-type sensors quickly locks onto your subject, and Nikon's unique 3D-tracking uses the 2,016-pixel RGB sensor to recognize and follow it across the frame.
Catch the right moment
When photo-worthy action starts, hold down the shutter button and capture every movement, expression and feeling at 5 frames per second, even when using the Vari-angle LCD. Stop reaching for your smartphone when an important moment happens—except to share the great shot you just caught with the D5300.
Storytelling at your fingertips
Bring the image quality the D5300 produces—softly blurred backgrounds, tack-sharp details, vibrant colors—to dazzling 1080p Full HD videos. In Live View, Nikon's full-time autofocus follows your subject and keeps it sharp. A built-in stereo microphone adds high-fidelity sound to your videos, or you can add Nikon's optional accessory ME-1 stereo microphone for the highest quality sound possible.
Pictures as your eyes see them
The D5300 features exceptional metering and onboard intelligence, freeing you to focus on the composition of your shots and, most importantly, the moment that's taking place. Nikon's outstanding Scene Recognition System analyzes your shooting situation, compares it to an onboard database of thousands of scenes, and automatically determines the most appropriate auto exposure, i-TTL flash exposure, white balance and autofocus settings.
Get creative with Image Effects
Make a single vivid color pop in a black & white photo, turn a landscape into a toy model, shoot portraits that look like paintings, make your D5300 behave like a toy camera (new) and more, then share your creations with your smartphone or tablet.
Embrace highlights and shadowsBuilt-in HDR automatically combines two photos into one highly dynamic image, and new subject-based D-Lighting automatically brightens shadowy areas on your subjects—great for portraits.
Edit your shots in the camera
Perfect the photos you share with D5300's Retouch Menu. Easily crop, apply filters, effects and more right in the camera—no additional software needed—then instantly share your edited shot with your smartphone or tablet.
Great results in tricky situations
Even if you're new to D-SLR photography, getting great results in difficult situations couldn't be easier—just select from 16 common Scene Modes for your situation, or let the camera pick for you.
Define your own style
The D5300's easy to use Picture Controls let you alter your color palette and add a personal touch with six settings available; Standard, Neutral, Vivid, Monochrome, Portrait and Landscape—customize the look and feel of your photos and HD videos.
Change your view of the world
The D5300 is compatible with Nikon's complete collection of remarkable NIKKOR lenses and optimized for DX-Format NIKKOR lenses. Expand your capabilities and creativity over time by growing your own collection.
± WI-FI Compatibility
The D5300 camera's built-in Wi-Fi® capability can only be used with a compatible iPhone®, iPad®, and/or iPod touch® or smart devices running on the Android™ operating system. NOTE: The Wireless Mobile Utility application must be installed on the device before it can be used with this camera.
AF-S DX NIKKOR 18-140mm f/3.5-5.6G ED VR Lens
A compact all-in-one lens that's ready for anything
Optimized to draw full potential from Nikon's high-resolution DX-format image sensors, the AF-S DX NIKKOR 18-140mm f/3.5-5.6G ED VR delivers ultra-sharp photos and videos with softly blurred backgrounds. Its versatile 7.8x zoom range (18mm to 140mm) lets you shoot everything from wide-angle family portraits to telephoto close-ups on the sports field. 4 stops of VR image stabilization means sharper handheld photos and video, especially when shooting in low light or at maximum focal length. You can even get as close as 1.48-feet from your subject for macro-style close-ups.
Clarity within reach - 7.8x wide-angle to telephoto zoom
Developed with high pixel count D-SLRs in mind, the AF-S DX NIKKOR 18-140mm f/3.5-5.6G ED VR delivers vibrant, detail-rich photos and videos across its entire zoom range. Zoom out for an 18mm wide-angle view that's great for group shots, landscapes or any time you need to fit more into the frame. Zoom in for 140mm of telephoto reach—enough zoom to capture close-ups of your favorite player from the sidelines. In between, you have standard views similar to what you see with your eyes and medium telephoto views ideal for portraits.
Sharper handheld shooting
The AF-S DX NIKKOR 18-140mm f/3.5-5.6G ED VR versatility is strengthened by 4 stops of VR image stabilization. Capture sharp, shake-free handheld photos and videos in low-light situations, when you want to use slower shutter speeds, and at telephoto distances, when even the smallest amount of camera shake can ruin a shot.
Advanced Nikon technology and superb NIKKOR optics
AF-S DX NIKKOR 18-140mm f/3.5-5.6G ED VR is an advanced lens designed to get the most from high-resolution Nikon D-SLRs. In addition to VR image stabilization, it uses ED (Extra-low Dispersion) glass, which virtually eliminates reflections and lens flare for better contrast and Aspherical (AS) lens elements for minimizing aberration and improving image integrity and color. Nikon's Silent Wave Motor (SWM) provides ultra-fast, ultra-quiet autofocusing, a major advantage when recording video.
*Based on CIPA Standard. This value is achieved when DX-format compatible lenses are attached to a DX-format digital SLR camera and zoom lenses are set at the maximum telephoto position.
Includes:
- D5300 Camera Body
- AF-S DX NIKKOR 18-140mm f/3.5-5.6G ED VR
- EN-EL14a Rechargeable Li-ion Battery
- MH-24 Quick Charger
- DK-25 Rubber Eyecup
- UC-E17 USB Cable
- EG-CP16 Audio Video Cable
- AN-DC3 Strap
- DK-5 Eyepiece Cap
- BF-1B Body Cap
- BS-1 Accessory Shoe Cap
- NikonView NX2 CD ROM
Nikon D5300 Camera Body Specifications:
- Camera Type
- Type: Single-lens reflex digital camera
- Lens Mount: Nikon F bayonet mount
- Image Sensor
- Picture Angle: Nikon DX format
- Effective Pixels: 24.2 million
- Sensor Size: 23.5 mm x 15.6 mm
- Image Sensor Format: DX
- Image Sensor Type: CMOS
- Total Pixels: 24.78 million
- Dust-reduction system: Image sensor cleaning
- Dust-Off Reference Photo: Yes
- Image Area (pixels):
- DX-format:
- (L) 6,000 x 4,000
- (M) 4,496 x 3,000
- (S) 2,992 x 2,000
- File System
- File Format Still Images:
- JPEG: JPEG-Baseline Compliant with fine (approx. 1:4), Normal (approx. 1:8) or Basic (approx. 1:16) Compression
- NEF (RAW) + JPEG: Single Photograph Recorded in both NEF (RAW) and JPEG Formats
- NEF (RAW): Lossless compressed, compressed 12 or 14 bit
- Storage Media
- Card Slot: 1 Secure Digital (SD)
- File System
- Compliant with DCF (Design Rule for Camera File System) 2.0
- DPOF (Digital Print Order Format)
- EXIF 2.3 (Exchangeable Image File Format for Digital Still Cameras)
- PictBridge
- Viewfinder
- Viewfinder: Eye-level Pentamirror Single-Lens Reflex viewfinder
- Viewfinder Frame Coverage: 95% Horizontal, 95% Vertical (Approx.)
- Viewfinder Magnification: 0.82x (Approx.)
- Viewfinder Eyepoint: 18mm (-1.0m¯¹)
- Viewfinder Diopter Adjustment: -1.7 to +1.0m¯¹
- Focusing Screen: Type B BriteView Clear Matte Mark VII screen
- Reflex Mirror: Quick-return type
- Mirror Lock Up: Yes
- Lens
- Lens Aperture: Instant-return type
- Lens Compatibility at a Glance***: AF-S and AF-ICPU lenses only
- Compatible Lenses:
- Autofocus is available with AF-S and AF-I lenses.
- Autofocus is not available with other type G and D lenses, AF lenses (IX NIKKOR and lenses for the F3AF are not supported) and AI-P lenses.
- Non-CPU: Can be used in mode M, but Exposure Meter does not Function; Electronic Rangefinder can be used if Maximum Aperture is f/5.6 or Faster.
- Shutter
- Shutter Type: Electronically controlled vertical-travel focal-plane
- Shutter Speed:
- 1/4000 to 30 sec. in steps of 1/3 or 1/2 EV
- Bulb
- Fastest Shutter Speed: 1/4000 sec.
- Slowest Shutter Speed: 30 sec.
- Flash Sync Speed:
- Up to 1/200 sec.
- Synchronizes with shutter at 1/200s or slower
- Bulb Shutter Setting: Yes
- Shutter Release Modes:
- Continuous low-speed [CL] mode; 1-3 frames per second
- Continuous high-speed [CH] mode; 1-5 frames per second
- Delayed remote (ML-L3)
- Interval timer photography supported
- Quick-response remote (ML-L3)
- Quiet shutter-release
- Self-timer Mode
- Single-frame [S] mode
- Continuous Shooting Options:
- DX-format
- CH: Up to 5 frames per second
- CL: Up to 1-3 frames per second
- Top Continuous Shooting Speed at full resolution: 5 frames per second
- Self-timer:
- 2, 5, 10, 20 sec.; 1 to 9 exposures (Timer duration electronically controlled)
- Exposure
- Exposure Metering System: TTL exposure metering using 2,016-pixel RGB sensor
- Metering Method:
- Center-weighted: Weight of 75% given to 8 mm circle in center of frame
- Matrix: 3D color matrix metering II (type G and D lenses); color matrix metering II (other CPU lenses)
- Spot: Meters 3.5 mm circle (about 2.5% of frame) centered on selected focus point
- Metering Range:
- 0 to 20 EV (3D color matrix or center-weighted metering)
- 2 to 20 EV (Spot metering at ISO 100 equivalent, f/1.4 lens at 20°C/68°F)
- Exposure Meter Coupling: CPU
- Exposure Modes:
- Aperture-Priority (A)
- Auto
- Auto (flash off)
- Manual (M)
- Programmed auto with flexible program (P)
- Scene Modes
- Shutter-Priority (S)
- Scene Modes:
- Autumn Colors
- Beach / Snow
- Blossom
- Candlelight
- Child
- Close-up
- Dusk / Dawn
- Food
- Landscape
- Night Landscape
- Night Portrait
- Party / Indoor
- Pet Portrait
- Portrait
- Sports
- Sunset
- Special Effects Mode (Night vision, Color sketch, Toy camera, Miniature effect, Selective color, Silhouette, High key, Low key, HDR painting)
- Exposure Compensation: ±5 EV in increments of1/3 or 1/2 EV
- Exposure Bracketing: 3 frames in steps of 1/3 or1/2 EV
- Exposure Lock: Yes
- Picture Control:
- Landscape
- Monochrome
- Neutral
- Portrait
- Standard
- User-customizable Settings:
- Vivid
- Sensitivity
- ISO Sensitivity:
- ISO 100 -12,800
- Hi-1 (ISO 25,600)
- Lowest Standard ISO Sensitivity: 100
- Highest Standard ISO Sensitivity: 12,800
- Highest Expanded ISO Sensitivity: Hi-1 (ISO 25,600 equivalent)
- Expanded ISO Sensitivity Options: Hi-1 (ISO 25,600 equivalent)
- Long Exposure Noise Reduction: Yes
- High ISO Noise Reduction:
- Low
- Normal
- High
- Off
- Active D-Lighting:
- Auto
- Extra High
- High
- Normal
- Low
- Off
- D-Lighting Bracketing:
- 2-3 frames
- 2 frames using selected value for one frame or 3 frames using preset values for all frames
- Focus/Autofocus
- Single-point AF Mode: Yes
- Dynamic AF Mode: Number of AF points: 9, 21, 39and 39 (3D-tracking)
- Auto-area AF Mode: Yes
- Autofocus System: Nikon Multi-CAM 4800DX autofocus sensor module with TTL phase detection
- Detection Range: -1 to 19 EV (ISO 100,68°F/20°C)
- Lens Servo:
- Autofocus (AF): Single-servo AF (AF-S); Continuous-servo AF (AF-C); auto AF-S/AF-C selection (AF-A); predictive focus tracking activated automatically according to subject status
- Manual focus (MF): Electronic rangefinder can be used
- Focus Point: Can be selected from 39 or 11 focus points
- AF-area Mode:
- 9, 21 or 39 point Dynamic-area AF
- Auto-area AF
- Single-point AF
- 3D-tracking (39 points)
- Focus Lock:
- Focus can be locked by pressing AE-L/AF-L button
- Focus can be locked by pressing shutter-release button halfway (single-servo AF)
- Focus Modes:
- Auto AF-S/AF-C selection (AF-A)
- Continuous-servo (AF-C)
- Face-Priority AF available in Live View only
- Full-time Servo (AF-A) available in Live View only
- Manual (M) with electronic rangefinder
- Normal area
- Single-servo AF (AF-S)
- Wide area
- Maximum Autofocus Areas/Points: 39
- Autofocus Sensitivity: -1 to +19 EV (ISO 100, 20°C/68°F)
- Flash
- Built-in Flash: Yes
- Built-in Flash Distance: 12/39, 13/43 with manual flash (m/ft, ISO 100, 20°C/68°F)
- X-Sync Speed: 1/200
- Flash Control: TTL: i-TTL flash control using 2,016-pixel RGB sensor are available with built-in flash and SB-910, SB-900, SB-800, SB-700, SB-600, SB-400, or SB-300; i-TTL balanced fill-flash for digital SLR is used with matrix and center-weighting metering, standard i-TTL flash for digital SLR with spot metering
- Flash Sync Modes:
- Auto
- Auto with red-eye reduction
- Auto slow sync
- Auto slow sync with red-eye reduction
- Fill-flash
- Rear-curtain sync
- Rear-curtain with slow sync
- Red-Eye reduction
- Red-Eye reduction with slow sync
- Slow sync
- Off
- Flash Compensation: -3 to +1 EV in increments of1/3 or 1/2 EV
- Flash-ready Indicator: Lights when built-in flash or optional flash unit is fully charged; flashes after flash is fired at full output
- Accessory Shoe: Yes
- Nikon Creative Lighting System (CLS): Advanced Wireless Lighting supported with SB-910, SB-900, SB-800, or SB-700 as a master flash or SU-800 as commander; Flash Color Information Communication supported with all CLS-compatible flash units
- Flash Sync Terminal: Sync Terminal Adapter AS-15 (
- White Balance
- White Balance:
- Auto
- Cloudy
- Direct Sunlight
- Flash
- Fluorescent (7 types)
- Incandescent
- Preset Manual
- Shade
- White Balance Bracketing: 3 shots in steps of 1
- Live View
- Live View Shooting:
- Photography Live View Mode
- Movie Live View Mode
- Live View Lens servo:
- Autofocus (AF): Single-servo AF (AF-S); full-time-servo AF (AF-F)
- Manual focus (MF)
- Live View AF-area mode:
- Face-priority AF
- Wide-area AF
- Normal-area AF
- Subject-tracking AF
- Live View Autofocus: Contrast-detect AF anywhere in frame (camera selects focus point automatically when face-priority AF or subject-tracking AF is selected)
- Live View Scene Auto Selector:
- Auto mode
- Auto (flash off) mode
- Movie
- Movie Metering: TTL exposure metering using main image sensor
- Movie Maximum recording time:
- 20 minutes at highest quality
- 29 minutes 59 seconds at normal quality
- Movie File Format: MOV
- Movie Video Compression: H.264/MPEG-4 Advanced Video Coding
- Movie Audio recording format: Linear PCM
- Movie:
- Full HD 1,920x1,080 / 60 fps
- Full HD 1,920x1,080 / 50 fps
- Full HD 1,920x1,080 / 30 fps
- Full HD 1,920x1,080 / 25 fps
- Full HD 1,920x1,080 / 24 fps
- HD 1,280x720 / 60 fps
- HD 1,280x720 / 50 fps
- VGA 640x424 / 30 fps
- VGA 640x424 / 25 fps
- Movie Audio:
- Built-in microphone, stereo
- External stereo microphone (
- Microphone sensitivity can be adjusted
- Monitor
- Monitor Size: 3.2 in. diagonal
- Monitor Resolution: 1,037,000 Dots
- Monitor Type:
- Wide Viewing Angle
- Vari-angle TFT-LCD
- Monitor Angle of View: 170-degree wide-viewing angle
- Monitor Adjustments:
- Brightness, 3 levels
- Brightness control using ambient brightness sensor
- Playback
- Playback Functions:
- Auto Image Rotation
- Full-frame and thumbnail (4, 12, or 80 images or calendar)
- Highlights
- Histogram Display
- Image Comment
- Movie Playback
- Movie Slideshow
- Playback with Zoom
- Slideshow
- In-Camera Image Editing:
- Color Balance
- Color Outline
- Color Sketch
- D-Lighting
- Distortion Control
- Edit Movie
- Filter Effects
- Fisheye
- Image Overlay
- Miniature Effect
- Monochrome
- NEF (RAW) Processing
- Perspective Control
- Quick Retouch
- Red-Eye Correction
- Resize
- Selective Color
- Side-by-Side Comparison
- Straighten
- Trim
- Image Comment: Yes
- Interface
- Interface:
- Accessory Terminal: Remote Cord: MC-DC2 (
- HDMI output: Type C mini-pin HDMI connector
- Hi-speed USB
- Stereo Microphone Input
- WR-1 and WR-R10 wireless remote controller (
- Wi-Fi Functionality: Yes (Built-in)
- GPS:
- Yes (Built-in)
- GP-1 GPS unit (
- GP-1A GPS unit (
- Menus
- My Menu: Yes
- Recent Settings: Yes
- Supported Languages: Arabic, Bengali, Brazilian Portuguese, Chinese (Simplified and Traditional), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hindi, Hungarian, Indonesian, Italian, Japanese, Korean, Norwegian, Persian, Polish, Portuguese, Romanian, Russian, Spanish, Swedish, Tamil, Thai, Turkish, Ukrainian, Vietnamese
- Date, Time and Daylight Savings Time Settings: Yes
- World Time Setting: Yes
- Power
- Battery / Batteries: One EN-EL14a Rechargeable Li-ion Battery or EN-EL14 Rechargeable Li-ion Battery
- Battery Life (shots per charge): 600 shots (CIPA)
- AC Adapter: EH-5b AC Adapter; requires EP-5A Power Connector (
- Battery Charger: MH-24 Quick Charger
- Miscellaneous
- Tripod Socket: 1/4 in.
- Approx. Dimensions (Width x Height x Depth): 4.92 in. (125 mm) x 3.9 in. (98.0 mm) x 3.0 in. (76.0 mm)
- Approx. Weight: 16.9 oz. (480 g)
- Operating Environment: 0–40 °C (+32–104 °F)
Nikon AF-S DX NIKKOR 18-140mm f/3.5-5.6G ED VR Lens Specifications:
- Mount Type: Nikon F-Bayonet
- Focal Length Range: 18-140mm
- Zoom Ratio: 7.8x
- Maximum Aperture: f/3.5-5.6
- Minimum Aperture: f/22-38
- Format: DX
- Maximum Angle of View (DX-format): 76°
- Minimum Angle of View (DX-format): 11°30'
- Maximum Reproduction Ratio: 0.23x
- Lens Elements: 17
- Lens Groups: 12
- Optical Conversion Factor: 1.5x
- Compatible Format(s): DX
- VR (Vibration Reduction) Image Stabilization: Yes
- Diaphragm Blades: 7
- Distance Information: Yes
- ED Glass Elements: 1
- Aspherical Elements: 1
- Super Integrated Coating: Yes
- Autofocus: Yes
- AF-S (Silent Wave Motor): Yes
- Internal Focusing: Yes
- Minimum Focus Distance: 1.48 ft. (0.45m)
- Focus Mode:
- G-type: Yes
- Filter Size: 67mm
- Accepts Filter Type: Screw-on
- Approx. Dimensions (Diameter x Length): 3 in. x 3.8 in. (78 mmx 97 mm)
- Approx. Weight: 17.3 oz. (490g)
