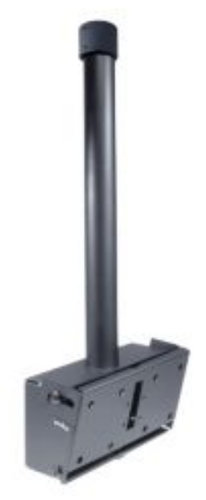

Peerless PLCK-1 Ceiling Mount with 1.5" NPS Coupler

Peerless-AV’s PLCK-1 flat panel ceiling mount products and components utilize a 1.5" NPT pipe for versatility, support and connection. The 1.5" NPT threaded pipe make it simple to customize each mount to your specific application. The PLCK-1 kit combines the PLCM-2 tilt box, fixed length 1.5" NPT column and 1.5' NPS coupler to easily retrofit exiting installations. When combined with Peerless-AV’s PLP-UNL universal or dedicated display adapter, it provides the perfect combination for retrofitting flat panel ceiling mounts in sports facilities, airports, lobbies or retail environments.

Peerless-AV PLCK-1 Features:

• Includes a 1.5" NPS threaded coupling enabling retrofit to existing 1.5" NPT or NPS connections
• 0° to 20° adjustable tilt and 360° swivel
• Standard 1.5" NPT pipe included providing a 19.49" drop
• Simple hook-on display installation
• Universal models fit displays with mounting holes up to 730 x 405mm (28.75"W x 15.95"H)
• PLCK-1 requires universal or dedicated display adapter plate to be purchased separately
• Mount display in landscape or portrait orientation with dedicated adapter plates
• Integrated cable management protects, contains and conceals cables for a clean, professional installation

Peerless-AV PLCK-1 Specifications:

• Minimum to Maximum Screen Size: 10" to 75"
• Weight Capacity: 125 lb (57kg)
• Color: Black
• Finish: Powder Coat
• Security Features: Security Hardware
• Tilt: 20°
• Swivel Yaw: 360°
• Distance from Ceiling: 22.59" (574mm)
• Product Dimensions: 10.24 X 22.59 X 3.25" (260 X 574 X 83mm)
• Ship Dimensions: 14.13 x 5.500 x 24.500" (358.9 x 139.7 x 622.3mm)
• Shipping Weight: 14.8lb (6.7kg)

Note:

An adapter plate is required to complete this installation.
