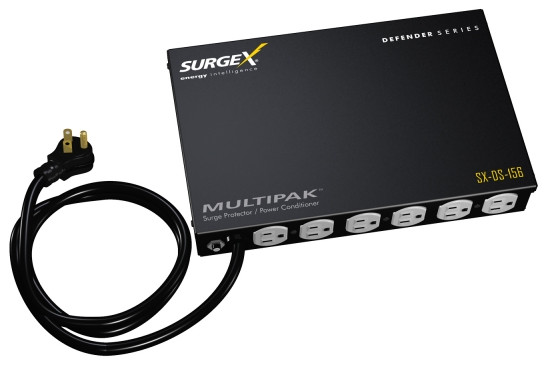

SurgeX SX-DS-156
Defender Series MultiPak 6 Outlet Surge Supressor

OUR PART #  SX-DS-156

Our Price: $299.00
(Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The SurgeX SX-DS-156 Defender Series MultiPak 6 Outlet Surge Supressor offers advanced power protection for multi-panel displays. It protects equipment from power disturbances that can cause downtime, disruption, shutdown, and loss of income. It uses superior technology to conventional single-stage MOV circuitry, improves audio and video performance, increases the reliability of connected equipment, and is completely non-sacrificial and never requires rest. Its compact design easily integrates with wall/ceiling mounting systems. Remote portal sold separately.

SurgeX SX-DS-156 Defender Series MultiPak 6 Outlet Surge Suppressor Specifications:

  • Load Rating: 15A @ 120V
  • 1 NEMA 5-15P plug
  • 6 NEMA 5-15R outlets
  • Voltage Protection Rating (VPR): 330V All Modes
  • EMI/RFI Filter, Normal Mode (50-ohm load): > 30 dB 80kHz – 50MHz
  • EMI/RFI Filter, Common Mode (50-ohm load): > 30 dB 70kHz – 50MHz
  • Overvoltage Shutdown: Adjustable from 135V to 160V. Restores at 130V
  • Undervoltage Shutdown: Adjustable from 80V to 95 V, or Disabled. Restores at 105V
  • Dimensions: 11.212" W x 7.272" D x 1.79" H
  • Weight: 5 lbs
  • Temperature Range: 5º to 35º C
  • Humidity Range: 5% to 95% R.H., non-condensing
  • Agency Listings: ETL and cETL Certified to UL 1449 (pending)
  • FCC: Part 15 Class B

SurgeX SX-DS-156
Defender Series MultiPak 6 Outlet Surge Supressor

OUR PART #  SX-DS-156

Product Information:

The SurgeX SX-DS-156 Defender Series MultiPak 6 Outlet Surge Supressor offers advanced power protection for multi-panel displays. It protects equipment from power disturbances that can cause downtime, disruption, shutdown, and loss of income. It uses superior technology to conventional single-stage MOV circuitry, improves audio and video performance, increases the reliability of connected equipment, and is completely non-sacrificial and never requires rest. Its compact design easily integrates with wall/ceiling mounting systems. Remote portal sold separately.

SurgeX SX-DS-156 Defender Series MultiPak 6 Outlet Surge Suppressor Specifications:

  • Load Rating: 15A @ 120V
  • 1 NEMA 5-15P plug
  • 6 NEMA 5-15R outlets
  • Voltage Protection Rating (VPR): 330V All Modes
  • EMI/RFI Filter, Normal Mode (50-ohm load): > 30 dB 80kHz – 50MHz
  • EMI/RFI Filter, Common Mode (50-ohm load): > 30 dB 70kHz – 50MHz
  • Overvoltage Shutdown: Adjustable from 135V to 160V. Restores at 130V
  • Undervoltage Shutdown: Adjustable from 80V to 95 V, or Disabled. Restores at 105V
  • Dimensions: 11.212" W x 7.272" D x 1.79" H
  • Weight: 5 lbs
  • Temperature Range: 5º to 35º C
  • Humidity Range: 5% to 95% R.H., non-condensing
  • Agency Listings: ETL and cETL Certified to UL 1449 (pending)
  • FCC: Part 15 Class B
