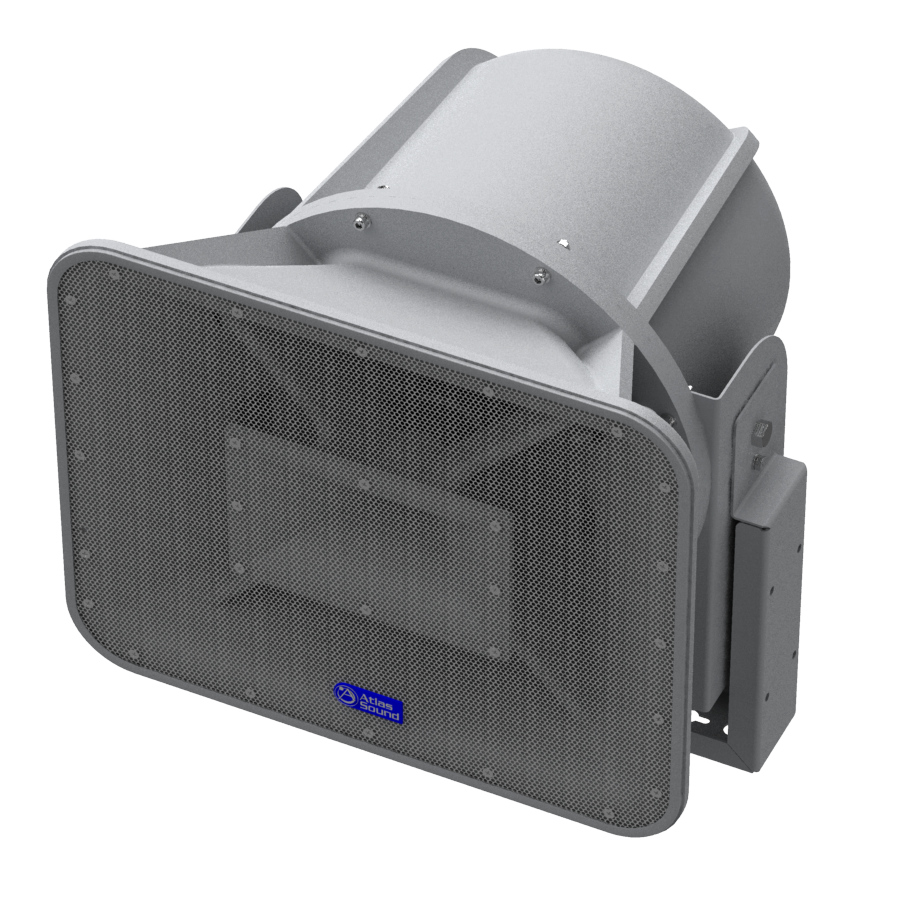

Atlas IED AH66-8T-BSG 8" 2-Way Stadium Horn with 65°x65° Dispersion

Designed for applications where high SPL (sound pressure level), full-range, directional, audio is required, the AH66-8T-BSG delivers with maximum intelligibility.

This 8" 2-way horn has a weather-resistant design making it perfect for outdoor use. The AH66-8T-BSG even comes with a "weep hole" that allows any internal moisture to dissipate.

100 watts of power handling capability and a max output of 125dB mean the audio won't get lost in the roar of the crowd. The horn's directional 65° x 65° design allows critical communication to be focused on specific areas if needed.

Complete with a heavy-duty stainless steel mounting bracket makes installation on any flat surface quick and easy. Standard 8Ω or 70V operation (transformer built in) allows the AH66-8T-BSG to be used for new construction or retrofit installs.

Rise above the noise with the Atlas AH66-8T-BSG.

Applications

• Sports facilities
• Convention centers
• Auditoriums

Features

• Three (3) Forged Eyebolts Also Included for Suspended Installation
• Battleship Gray Finish
• 100 Watts Power Handling
• Constant Directivity Design Offers Controlled Coverage of 65° Horizontal by 65° Vertical (2kHz Octave Band)
• Driver Compliment Includes 8" Cast Frame Woofer with a Concentrically Mounted 1" Exit Compression Driver Coupled to a 65°H x 65°V HF Horn
• Easy, Weather Resistant Connection via a Convenient Recessed Terminal Block Located on the Bottom of the Loudspeaker
• Efficiency Rating of 100dB (1W/1m)
• Heavy Duty Mounting Bracket (Included) Allows for Easy Installation to Most Any Flat Surface
• Includes a Built-In, High Efficiency 60 Watt 70.7V Transformer
• Maximum Output of 120dB (Rated Power @ 1M)

Specifications

• Power Taps: 7.5, 15, 30, and 60 Watts & 8 Ohms
• Frequency Response: 90 Hz - 15 kHz
• Driver Type: 1" HF and 8" LF
• Dispersion: 65° x 65°
• Power Rating: 100 Watts
• Sensitivity: 100dB SPL
• Dimensions (HxWxD): 20.95" x 17.91" x 20.98" (53.21cm x 45.49cm x 53.28cm)
• Weight: 61.00 lbs (27.67 kgs)
