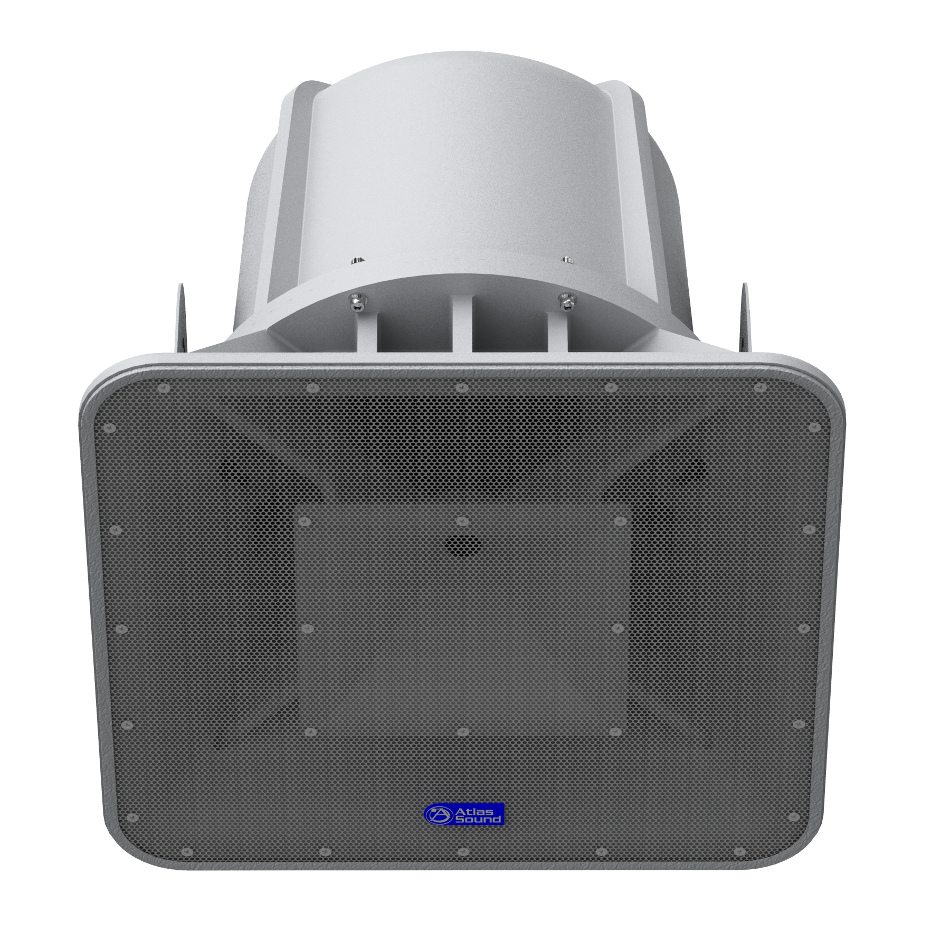

Atlas Sound AH99-8T-BSG
8" 2-Way Stadium Horn with 90°x90° Dispersion


The Atlas Sound AH99-8T-BSG "stadium horn" is ideal for directional sound distribution where full range reproduction...
Learn More
Our Price: $706.50
List Price: $881.95
You save 20%!
Write the first review.
Atlas Sound AH99-8T-BSG
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The Atlas Sound AH99-8T-BSG "stadium horn" is ideal for directional sound distribution where full range reproduction, maximum intelligibility and high sound pressure levels are required. Applications include football stadiums, sports arenas, baseball fields, convention centers and auditoriums.

Weather resistant construction features of the AH99-8T-BSG include a multiple screen configuration to prevent moisture from damaging internal components, a perforated aluminum screen covers the large horn mouth, a secondary screen is in place forward of the high frequency driver and a third tightly perforated screen protects the 8" cast frame woofer. A "weep" hole is also included on the back of the large horn "bell" to allow evaporation of any condensation that might build up internally.

Atlas Sound AH99-8T-BSG Features:

  • Three (3) Forged Eyebolts Also Included for Suspended Installation
  • Battleship Gray Finish
  • 100 Watts Power Handling
  • Constant Directivity Design Offers Controlled Coverage of 90° Horizontal by 90° Vertical (2kHz Octave Band)
  • Driver Compliment Includes 8" Cast Frame Woofer with a Concentrically Mounted 1" Exit Compression Driver Coupled to a 90°H x 90°V HF Horn
  • Easy, Weather Resistant Connection via a Convenient Recessed Terminal Block Located on the Bottom of the Loudspeaker
  • Efficiency Rating of 101dB (1W/1m)
  • Heavy Duty Mounting Bracket (Included) Allows for Easy Installation to Most Any Flat Surface
  • Includes a Built-In, High Efficiency 60 Watt 70.7V Transformer
  • Maximum Output of 121dB (Rated Power @ 1M)

Atlas Sound AH99-8T-BSG Specifications:

  • Power Taps:  7.5, 15, 30, and 60 Watts & 8 ohms
  • Frequency Response:  90 Hz - 15 kHz
  • Driver Type:  1" HF and 8" LF
  • Dispersion:  90° x 90°
  • Power Rating:  100 Watts
  • Sensitivity:  101dB SPL
  • Dimensions (HxWxD):  21.88" x 19.66" x 19.73" (55.57cm x 49.93cm x 50.11cm)
  • Weight:  65.00 lbs (29.48 kgs)
