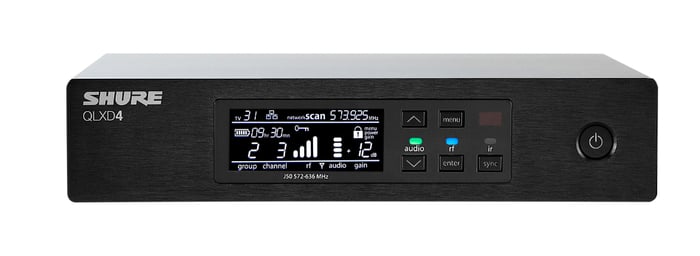

Shure QLXD4
Single-Channel Half-Rack Digital Wireless Receiver

OUR PART #  QLXD4

Selected Model Price: $636.00
List Price: $795.00

Save up to 20%! (Low Price Guarantee)
Select model: (shipping times are approximate)

Featuring transparent 24-bit digital audio quality and incredibly efficient RF spectrum usage, the Shure QLXD4 is a half-rack digital wireless receiver for use with QLX-D Digital Wireless Systems.

Ideal for presentation spaces, music venues, and houses of worship, the QLXD4 combines professional features with streamlined setup and operation. Automatic scanning quickly finds open frequencies and one-touch sync quickly deploys them to transmitters.

Ethernet networking enables networked channel scanning across multiple receivers and Wireless Workbench software integration for remote control of receiver settings from a PC or Mac. Remote monitoring and control from iOS devices is also available via the ShurePlus Channels Mobile App.

Shure QLXD4 Includes:

  • Hardware for rack-mounting
  • Power Supply
  • Two (2) Half-Wave antennas
  • Two (2) BNC Cables
  • Two (2) BNC Bulkhead Adapters
  • User Guide

Shure QLXD4 Features:

  • 64 MHz tuning bandwidth (region dependent)
  • More than 60 preset-compatible channels per frequency band (region dependent)
  • Up to 17 compatible systems per 6 MHz TV channel; 22 systems per 8 MHz channel
  • Digital predictive switching diversity ensures solid RF connection
  • AES 256-bit encryption for secure wireless transmission
  • Up to 60 dB of adjustable audio gain
  • High-contrast LCD menu and controls with lockout feature
  • Audio and RF LED meters with peak indicator
  • Detachable 1/2 wave antennas
  • Mic / line switchable XLR output
  • 1/4" Instrument output
  • Durable aluminum construction with brushed finish

Shure QLXD4 Specifications:

  • Dimensions (H×W×D): 1.63" × 7.75" × 5.94" (41mm× 197mm × 151mm)
  • Weight: 1.71 lbs (777 g, without antennas)
  • Housing: Steel
  • Power requirements: 12 V DC @ 0.4 A, supplied by external power supply (tip positive)
  • RF Input:
    • Spurious Rejection: >80 dB, typical
    • Connector Type: BNC
    • Impedance: 50 Ohms
  • Audio Output:
    • Gain Adjustment Range: -18 to +42 dB in 1 dB steps
    • Configuration:
      • 1/4" (6.35 mm): Impedance balanced (Tip=audio, Ring=no audio, Sleeve=ground)
      • XLR: Balanced (1=ground, 2=audio +, 3=audio -)
    • Impedance:
      • 1/4" (6.35 mm): 100 Ohms (50 Ohms Unbalanced)
      • XLR: 100 Ohms
    • Full Scale Output:
      • 1/4" (6.35 mm): +12 dBV
      • XLR: LINE setting = +18 dBV, MIC setting =-12 dBV
    • Mic/Line Switch: 30 dB pad
    • Phantom Power Protection:
      • 1/4" (6.35 mm): Yes
      • XLR: Yes
  • Networking:
    • Network Interface: Single Port Ethernet 10/100 Mbps
    • Network Addressing Capability: DHCP or Manual IP address
    • Maximum Ethernet Cable Length: 328 ft (100 m)

Shure QLXD4
Single-Channel Half-Rack Digital Wireless Receiver

OUR PART #  QLXD4

Product Information:

Featuring transparent 24-bit digital audio quality and incredibly efficient RF spectrum usage, the Shure QLXD4 is a half-rack digital wireless receiver for use with QLX-D Digital Wireless Systems.

Ideal for presentation spaces, music venues, and houses of worship, the QLXD4 combines professional features with streamlined setup and operation. Automatic scanning quickly finds open frequencies and one-touch sync quickly deploys them to transmitters.

Ethernet networking enables networked channel scanning across multiple receivers and Wireless Workbench software integration for remote control of receiver settings from a PC or Mac. Remote monitoring and control from iOS devices is also available via the ShurePlus Channels Mobile App.

Shure QLXD4 Includes:

  • Hardware for rack-mounting
  • Power Supply
  • Two (2) Half-Wave antennas
  • Two (2) BNC Cables
  • Two (2) BNC Bulkhead Adapters
  • User Guide

Shure QLXD4 Features:

  • 64 MHz tuning bandwidth (region dependent)
  • More than 60 preset-compatible channels per frequency band (region dependent)
  • Up to 17 compatible systems per 6 MHz TV channel; 22 systems per 8 MHz channel
  • Digital predictive switching diversity ensures solid RF connection
  • AES 256-bit encryption for secure wireless transmission
  • Up to 60 dB of adjustable audio gain
  • High-contrast LCD menu and controls with lockout feature
  • Audio and RF LED meters with peak indicator
  • Detachable 1/2 wave antennas
  • Mic / line switchable XLR output
  • 1/4" Instrument output
  • Durable aluminum construction with brushed finish

Shure QLXD4 Specifications:

  • Dimensions (H×W×D): 1.63" × 7.75" × 5.94" (41mm× 197mm × 151mm)
  • Weight: 1.71 lbs (777 g, without antennas)
  • Housing: Steel
  • Power requirements: 12 V DC @ 0.4 A, supplied by external power supply (tip positive)
  • RF Input:
    • Spurious Rejection: >80 dB, typical
    • Connector Type: BNC
    • Impedance: 50 Ohms
  • Audio Output:
    • Gain Adjustment Range: -18 to +42 dB in 1 dB steps
    • Configuration:
      • 1/4" (6.35 mm): Impedance balanced (Tip=audio, Ring=no audio, Sleeve=ground)
      • XLR: Balanced (1=ground, 2=audio +, 3=audio -)
    • Impedance:
      • 1/4" (6.35 mm): 100 Ohms (50 Ohms Unbalanced)
      • XLR: 100 Ohms
    • Full Scale Output:
      • 1/4" (6.35 mm): +12 dBV
      • XLR: LINE setting = +18 dBV, MIC setting =-12 dBV
    • Mic/Line Switch: 30 dB pad
    • Phantom Power Protection:
      • 1/4" (6.35 mm): Yes
      • XLR: Yes
  • Networking:
    • Network Interface: Single Port Ethernet 10/100 Mbps
    • Network Addressing Capability: DHCP or Manual IP address
    • Maximum Ethernet Cable Length: 328 ft (100 m)
