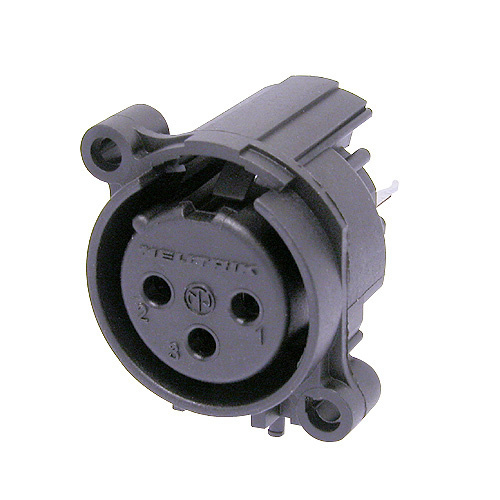

Neutrik NC3FAV-0 A-Series 3-Pin XLR-F Receptacle W/O Latch

The Neutrik NC3FAV-0 is a 3-pole female XLR vertical PCB mount receptacle without ground / shell contact, and with a retention spring instead of latch.

This 'State of the Art' receptacle is a round plastic body XLR PCB mount panel connector. It has the smallest size and highest packing density (23 mm between centres), plus tulip-type contacts with hard gold plating and polished contact areas.

Neutrik NC3FAV-0 Features:

• Smallest XLR receptacles, highest packing density
• Plastic housing, steel retention spring
• Tulip type female contact
• Polished contact areas and hard gold plating
• Housing flammability UL94V-0

Neutrik NC3FAV-0 Specifications:

• Electrical:
  • Capacitance between contacts: = 4 pF
  • Contact resistance: = 6 mOhm (inner)
  • Dielectric strength: 1.5 kV dc
  • Insulation resistance: > 10 GOhm (initial)
  • Rated current per contact: 6 A
  • Rated voltage: 50 V
  • Grounding Options: no grounding
• Mechanical:
  • Insertion force: < / = 20 N
  • Withdrawal force: < / = 20 N
  • Lifetime: > 1000 mating cycles
  • Locking force: > 20 separating force N
  • Wiring: vertical PCB mount
  • Locking device: Retention spring
  • Mounting direction: rear
  • Chassis shape: A
  • Mounting: A-Screw
• Material:
  • Contacts: Bronze (CuSn6)
  • Insert: Polyamide (PA 6.6 25 % GR)
  • Locking element: Steel Ck67
  • Flange: Black Plastic
• Environmental:
  • Approvals: UL
  • Flammability: UL 94 V-0
  • Standard compliance: IEC 61076-2-103
  • Protection class: IP 40
  • Solderability: Complies with IEC 68-2-20
  • Temperature range: -30 °C to +80 °C
