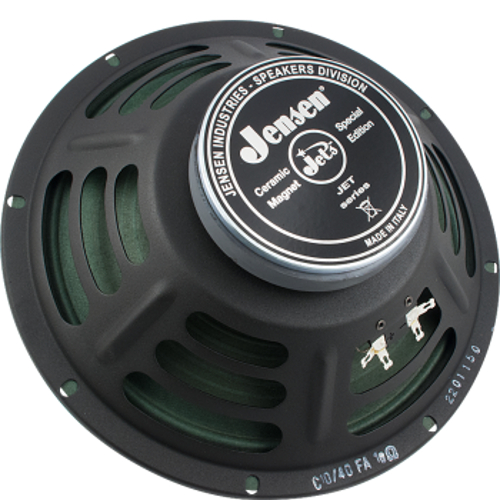

Jensen Loudspeakers Falcon 10
10" 40W Jet Series Speaker

OUR PART #:  P-A-JC10-40FA

Jensen Loudspeakers' Falcon 10" tone is warm and straightforward with a pronounced low end.
Learn More
Selected Model Price: $48.21
List Price: $66.50
Save up to 28%!

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Jensen Loudspeakers Falcon 10
Select model: (shipping times are approximate)
Qty:

Similar Products

Jensen Loudspeakers' Falcon 10" tone is warm and straightforward with a pronounced low end. Its mid frequencies are slightly enhanced over the Falcon 12", and it has a very sweet, yet cutting, high end. When presented with overdrive distortion it creates some mean fuzz. With its 40 watts of power, a ceramic magnet, and a seamed green cone made from all natural materials, the 10" Falcon is specially designed to ensure optimum tone for all styles of music.

Jensen Loudspeakers Falcon 10 Specifications:

  • General Characteristics:
    • Nominal Overall Diameter: 10" (259 mm)
    • Nominal Voice Coil Diameter: 1.25" (32 mm)
    • Magnet Weight: 15 oz (426 g)
    • Overall Weight: 3.66 lbs
    • Flux Density: 1.10 T
  • Thiele-Small Parameters for 8O:
    • Voice Coil DC Resistance RE: 6.16 O
    • Resonance Frequency ƒS: 114.4 Hz
    • Mechanical Q Factor QMS: 15.37
    • Electrical Q Factor QES: 1.60
    • Total Q Factor QTS: 1.15
    • Mechanical Moving Mass MMS: 18.2 g
    • Mechanical Compliance CMS: 106 µm/N
    • Force Factor BxL: 7.09 Wb/m
    • Equivalent Acoustic Volume VAS: 16.4 lt.
    • Maximum Linear Displacement XMAX: +/- 1.5 mm
    • Reference Efficiency nO: 1.48 %
    • Diaphragm Area SD: 330.1 cm2
    • Losses Electrical Resistance RES: 59.1 O
    • Voice Coil Inductance @ 1kHz LE: 0.69 mH
  • Constructive Characteristics for 8O:
    • Magnet: Ferrite
    • Voice Coil Winding: Copper
    • Voice Coil Former: Epotex
    • Cone: Paper
    • Surround Integrated: Paper
    • Dust Dome: Non Treated Cloth
    • Basket: Pressed Sheet Steel
  • Electrical Characteristics for 8O:
    • Nominal Impedance: 8 O
    • Rated Power: 40 W
    • Musical Power: 80 W
    • Sensitivity @ 1W,1m: 95.0 dB
  • Thiele-Small Parameters for 16O:
    • Voice Coil DC Resistance RE: 12.32 O
    • Resonance Frequency ƒS: 119.0 Hz
    • Mechanical Q Factor QMS: 17.27
    • Electrical Q Factor QES: 2.34
    • Total Q Factor QTS: 2.06
    • Mechanical Moving Mass MMS: 18.9 g
    • Mechanical Compliance CMS: 95 µm/N
    • Force Factor BxL: 8.61 Wb/m
    • Equivalent Acoustic Volume VAS: 14.6 lt.
    • Maximum Linear Displacement XMAX: +/- 1.5 mm
    • Reference Efficiency nO: 1.01 %
    • Diaphragm Area SD: 330.1 cm2
    • Losses Electrical Resistance RES: 90.9 O
    • Voice Coil Inductance @ 1kHz LE: 1.02 mH
  • Constructive Characteristics for 16O
    • Magnet: Ferrite
    • Voice Coil Winding: Copper
    • Voice Coil Former: Epotex
    • Cone: Paper
    • Surround: Integrated Paper
    • Dust Dome: Non Treated Cloth
    • Basket: Pressed Sheet Steel
  • Electrical Characteristics for 16O:
    • Nominal Impedance: 16 O
    • Rated Power: 40 W
    • Musical Power: 80 W
    • Sensitivity @ 1W,1m: 93.4 dB
