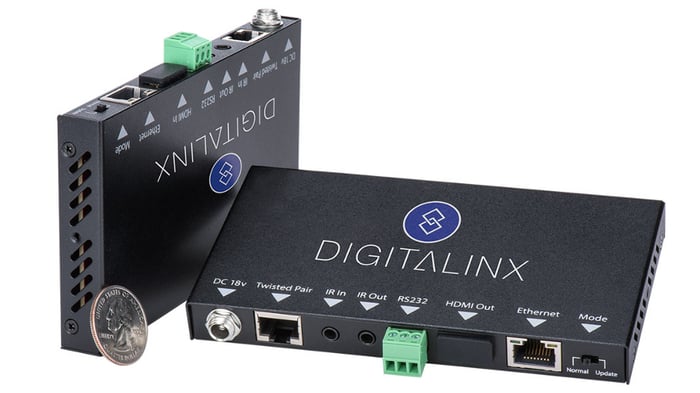

Intelix DL-HDE100
HDMI Over Twisted Pair Set with Power, Control and Ethernet

OUR PART #:  DL-HDE100

The DigitaLinx DL-HDE100 extender set from Intelix transmits HDMI, Ethernet, bidirectional IR, and RS232 up to 100 meters away using a single twisted pair cable.
Learn More
Our Price: $359.96
List Price: $399.95
You save 10%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Intelix DL-HDE100
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The DigitaLinx DL-HDE100 extender set from Intelix transmits HDMI, Ethernet, bidirectional IR, and RS232 up to 100 meters away using a single twisted pair cable.

Built-in surge protection and diagnostic LEDs ensure hassle-free and robust installations. Flexible power design allows the units to be powered at either the TX or RX end, and only one power supply is required. The 12 volt power supply is secured with a screw-on connector to prevent the power from being accidentally disconnected.

The DL-HDE100 is sold only as a set. All accessories are included including two IR emitters, two IR receivers, and two pairs of mounting brackets with screws. The individual transmitter and receiver are not compatible with other HDBaseT devices due to proprietary PoE circuitry.

NOTE: See Attached for Product Specifications

Applications:

  • Uses any Cat6 or greater twisted pair cabling
  • Extension of HDMI and control signals
  • Limited access to power for extenders on both ends
  • Ideal for Digital Signage, Home Theater, Commercial Video

Intelix DL-HDE100 Features:

  • HDMI transmission up to 330 feet (100m)
  • 1080p, 4Kx2K & 3D compatible
  • CEC supported
  • Built-in surge protection
  • Diagnostic LEDs
  • HDCP compliant
  • Bidirectional Wideband IR and RS232 pass-through
  • 100-BaseT Ethernet pass-through
  • Flexible power design (use power supply at TX or RX)
  • Locking Power Connector
