Product Overview

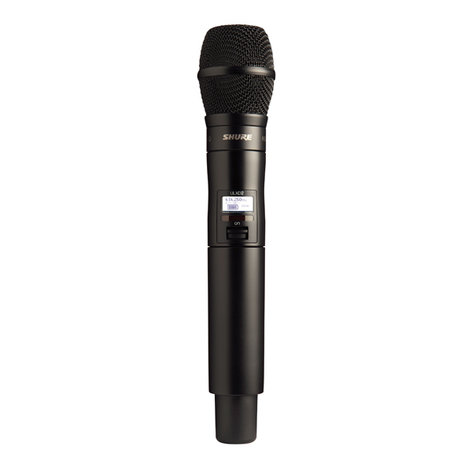

The KSM9HS with the ULXD2 digital handheld transmitter features the KSM9HS hypercardioid/subcardioid condenser vocal microphone head which captures vocal subtlety with extraordinary detail to deliver clear articulation and precise vocal reproduction for live performance.
The ULXD2/KSM9HS Handheld Wireless Microphone Transmitter works with ULX-D Wireless Systems.
Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.
Features
- AES 256-bit encryption for applications for which secure transmission is needed
- Proprietary Shure Gain Ranging optimizes the system’s dynamic range for any input source, eliminating the need for transmitter gain adjustments
- Optional Shure SB900B lithium-ion rechargeable battery pack provides over 12 hours of battery life, precision metering in hours and minutes, and zero memory effect
- External charging contacts for docked charging (with the SBC200 Dual Docking Charger)
- Transmitter Mute Mode repurposes the On/Off switch into a mute switch, enabling audio muting while preserving RF channel presence
- Backlit LCD with easy to navigate menu and controls
- Rugged metal construction
- Frequency and power lockout
Specifications
- Frequency Band: H50 (534-598 MHz)
- Gain Offset Range: 0 to 21 dB (in 3 dB steps)
- Battery Type / Run time:
- Shure SB900A Rechargeable Li-Ion / up to 9 hours
- LR6 AA batteries 1.5 V / up to 8 hours
- Dimensions (L × Dia.): 256 mm × 51 mm (10.1 in. × 2.0 in.)
- Weight (without batteries): 340 g (12.0 oz.)
- Housing: Machined aluminum
- AUDIO INPUT
- Configuration: Unbalanced
- Maximum Input, Level 1 kHz at 1% THD: 145 dB SPL (SM58), typical (dependent on microphone type)
- Preamplifier Equivalent Input Noise (EIN), System Gain Setting ≥ +20: 120 dBV, A-weighted, typical
- RF OUTPUT
- Antenna Type: Integrated Single Band Helical
- Occupied Bandwidth:
- Modulation Type: Shure Proprietary Digital
- Power: 1 mW, 10 mW, 20 mW (varies by region)
