EAW QX396 Install Loudspeaker with 90H x 60V Dispersion

EAW's QX396 is a full-range passive or bi-amplified, two-way system in a horizontally and vertically symmetrical, compact trapezoidal enclosure optimized for permanent installation. Four 10-in LF cones (vertical and horizontal pairs); 1.4-in exit HF compression driver, horn-loaded, with HF; 4-in exit HF compression driver, horn-loaded. 90 degree (h) x 60 degree (v). Four Phase Aligned™ 10-in low frequency transducers arranged as vertical and horizontal pairs leverage beneficial interaction based on their spacing to extend pattern control.

The QX300 Series design delivers great output and renowned broadband pattern control similar to the QX500 Series three-way but in a new compact two-way format. Its large 4-in voice coil high frequency compression driver makes it possible to cover the mid-range frequencies. Its high output level makes it appropriate for medium throws in arenas and stadiums or high-energy applications like live music venues or dance clubs. Its broadband pattern control lets it tame hostile acoustical environments like cathedrals or highly reverberant public spaces. And its exceptional fidelity pleases the most critical listeners in concert halls and performing arts centers.

The QX396 has an ultra-efficient and unique high compression driver with a 90° x 60° constant directivity horn. Four Phase Aligned™ 10-in low frequency transducers arranged as vertical and horizontal pairs leverage beneficial interaction based on their spacing to extend pattern control.

Because the four low frequency transducers surround the high compression driver symmetrically in the horizontal and vertical planes, response across the full frequency spectrum appears to originate from a single point in space.

Users can select between single-amp and bi-amp operating modes. Additionally, each woofer pair is brought out to the input plate independently to ermit independent, series, or parallel wiring. Combined, these features offer enormous installation flexibility.

EAW QX396 Specifications:

• Operating Range (-10 dB, Hz): 66 - 20k
• Axial Sensitivity (1W @ 1m, dB SPL)
  • LF/HF: 106
  • LF: 102
  • HF: 109
• Power Handling/Impedance (Watts @ Ohms)
  • LF: 1800W @ 2 (single amp), 900W @ 4 (2x pairs)
  • HF: 150 W @ 8
• Calculated Maximum Output Peak (dB SPL)
  • LF/HF: 142
  • LF: 141
  • HF: 136
• Calculated Maximum Output Long Term (dB SPL)
  • LF/HF: 136
  • LF: 135
  • HF: 130
• Nominal Coverage (degrees)
  • Horizontal: 90
  • Vertical: 60
• Subsystems
  • LF: 4× 10" cone Phase-Aligned™
  • HF: 1× 1.4" exit, 4" voice coil compression driver Horn-loaded
• Powering
  • Full range: LF/HF
  • Bi-amp: LF, HF
• Accessories
  • U-Bracket Horizontal QX3 Black [UBKT-QX3H]: 2042189
  • Adapter Bracket QX Black [ACC-ABQX]: 2036437
  • Weather Protection Shield [ACC-WPSQX3]: 2042373
• Dimensions:
  • 23.7"(Front Height) x 13.4"(Rear Height) x 23.7"(Front Width) 13.4"(Rear Width) x 19.9"(D)
  • Trap. Angle (degrees per side): 20
  • Trap. Angle (degrees top and bottom): 20
• Weight: 94 lbs

Note:

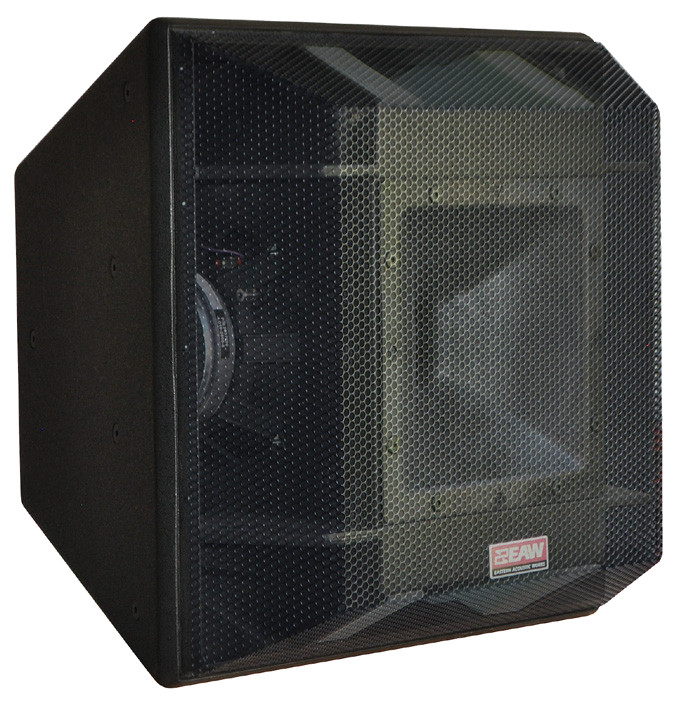

Available in white and black (shown above).
