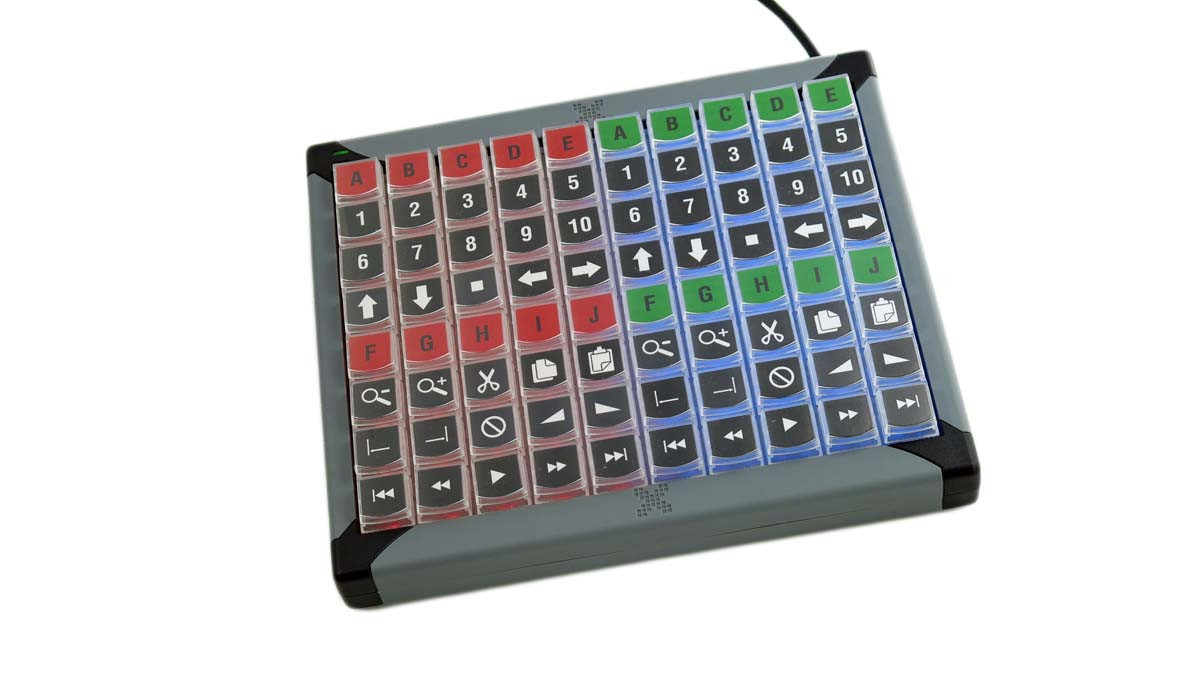

PI Engineering, Inc. X-Keys XK-80
80-Key Programmable USB Keypad

OUR PART #  XK-0980-UBK80-R

Our Price: $225.34
List Price: $229.95
(Low Price Guarantee)
In Stock

80 dedicated keys with addressable backlighting in a compact footprint.

The XK-80 offers an 8 x 10 grid of programmable keys to trigger macros, shortcuts, and applications, select tools or open files or directories. Key blockers can knock out unused keys and delineate groups to instantly create a custom control panel.

P.I. Engineering XK-0980-UBK80-R Features:

  • 80 relegendable keys
  • Addressable blue backlighting for each key
  • Add tall, wide, and quad keys or key blockers tocustomize
  • Compatible with Windows, Mac, Linux, and Android
  • 30 day full refund return policy
  • Free live technical support

P.I. Engineering XK-0980-UBK80-R Specifications:

  • Operating System: Use: Any OS via USB HID |Programming: Windows XP through 8, Mac OS X 10.4 through 10.8
  • Free Programming Software:
    • Windows: MacroWorks 3.1
    • Mac: ControllerMate for X-keys
  • Free Software Development Kits:
    • Windows (C++, C#, VB.NET)
    • Linux (C++)
    • Android (Java)
    • Raw HID (any language/OS)
  • Emulation Modes: HID keyboard, HID mouse, HID gamecontroller
  • Switch Types:  Full-travel rubber dome,carbon on gold contacts, guaranteed for over 1 million operations
  • Number of Keys:  80 single keys + programmingbutton
  • Actuation Force:  Approx. 2.5 oz (72g)break-over, approx. 1.5 oz (42g) hold
  • Keycaps:  0.625” (16mm) sq.; relegendablewith Cherry MX compatible stem
  • Key Spacing:  0.75" O.C.
  • Optional Keys:  2X1, 1X2, 2X2, and 1 blocker
  • Backlighting:  1 blue and 1 red addressableLED under each key
  • Connector:  Wired USB 2.0 standard “A” plug
  • Cord Length:  56” (1.42 m)
  • Dimensions:  8.25” x 7.25” x 0.94” (210mm x184mm x 24xm)
  • Weight:  26 oz. (737 g)
  • USB type: USB 1.1 compatible through 3.0
  • Power Source: USB port, nominal voltage = 5 VDC
  • Power Consumption: No LEDs: 32 mA, Blue LEDs max:123 mA, Red LEDs max: 181 mA, All LEDs max: 257 mA
  • Temperature Range:  -20 to 60 C
  • Memory Capacity:  Approximately 1,000keystrokes or commands in onboard memory
  • Memory Type:  EEPROM, non volatile memory(X-keys retains memory for over 200 years)
  • Environmental Rating:  IP 40, typical indooroffice environment
  • Certifications:  FCC class B, CE, RoHS, WEEE compliant
