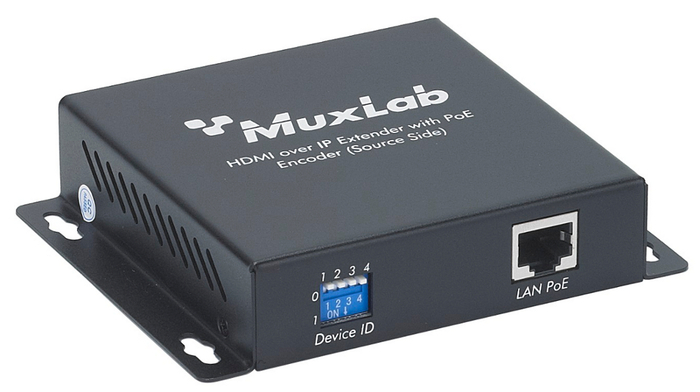

MuxLab 500752-TX
HDMI Over IP Encoder with PoE

OUR PART #:  MUX-500752-TX

The 500752-TX from MuxLab is the HDMI Encoder that converts an HDMI bitstream into IP allowing it to be transmitted over an Ethernet LAN.
Learn More
Our Price: $320.02
List Price: $350.00
You save 9%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

MuxLab 500752-TX
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The 500752-TX from MuxLab is the HDMI Encoder that converts an HDMI bitstream into IP allowing it to be transmitted over an Ethernet LAN. The HDMI over IP Extender system allows an HDMI source to be connected via any Ethernet LAN thereby allowing AV broadcasts to be set up and changed without the need to install a dedicated cabling system.

This unit works in conjunction with the IP Decoder (50072-RX) which converts the IP packets back to the original HDMI bitstream for playback via an HDMI display. These items can be purchased separately or together in a kit.

Benefits:

  • Uses existing LAN cabling infrastructure
  • Reduces need for dedicated AV matrix switches
  • Accessible via any existing LAN connection

Applications:

  • Meeting and Event Broadcasts
  • Training and Education
  • Digital Signage
  • Digital Video Surveillance & Monitoring
  • Video Conferencing Streaming

MuxLab MUX-500752-TX Features:

  • Extends 1080P HDMI via LAN up to 330 ft (100m)
  • Supports up 16 transmitters and 200 receivers
  • Point-to-point, broadcasting and multicasting
  • Supports PoE
  • Support IR Control, HDCP

MuxLab MUX-500752-TX Specifications:

  • Enviornment: HDMI 1.3a, Ethernet, IGMP
  • Devices: DVD, plasma, projectors, monitors, TV, PC, laptops, servers supporting HDMI.
  • Transmission: Transparent to the user
  • Bandwidth: 225 MHz
  • Compression Method: MJPEG
  • Bit Rate: 60 Mbps
  • Latency: One (1) frame. At 30fps there is 33msec latency
  • Network Requirements:
    • Point to Point: 100BaseT
    • Multipoint: 1000BaseT
  • IR Frequency: 38 KHz
  • Configurations: Point-to-Point, Point-to-Multipoint,Multipoint-to-Multipoint*.

NOTE: *For multipoint-to-multipoint configuration the gigabit Ethernet switch must support the IGMP communications protocol.

  • Connectors:
    • One (1) HDMI receptacle.
  • Note: HDMI cables not included.
    • One (1) RJ45S for Cat5e/6 unshielded or shielded twisted pair via 10/100BaseT
    • One(1) 3.5mm jacks for IR emitter/sensor.
    • Four (4) DIP Switches for device ID addressing.
  • DIP Switch: 4-position DIP to set Device ID
  • Maximum Distance (Based on a maximum length of 6.6 ft (2 m) of HDMI cable per end.
    • Cat5e/6: 330 ft (100 m) up to 1080P* - *Gigabit Ethernet required for 1080p

NOTE: When installed in an electrically noisy environment, an STP cable must be used. Also, cross-connection reduces the effective distance depending on the grade of twisted cable used.

  • RJ45 Pin Config (Reverse Polarity Sensitive. UseEIA/TIA 568A or 586B straight-through wiring.)

  • RJ45 Link
    • Pin 1 (R) Pin 2 (T)
    • Pin 3(R) Pin 6 (T)
    • Pin 4 (R) Pin 5 (T)
    • Pin 7 (R) Pin 8 (T)
  • Cable: One (1) Cat 5e/6 or better twisted pair cables required
  • Power Supply: Two (2) 110-240V/5VDC power supplies with interchangeable blades
  • Power Consumption:
    • Transmitter: 2.9 Watt
    • Receiver: 1.8 Watt
  • Temperature:
    • Operating: 0° to 40°C
    • Storage: -20° to 85°C
    • Humidity: Up to 95% non-cond
  • Enclosure: Metal
  • Dimensions: 3.70” x 3.68” x 0.97” (94 x 93.5 x 24.6mm)
  • Shipping Weight: 500752: 2.2 lb (1.08 kg) 500752-TX:1.1 lb (.54 kg) 500752-RX: 1.1 lb (.54 kg)
  • Compliance:
    • Regulatory: FCC, CE, RoHS
    • Flammability: 94V0
  • Warranty: 2 years

Order Information:

  • 500752 HDMI Over IP Extender Kit with PoE (IncludesTx and Rx)
  • 500752-TX HDMI Over IP Encoder with PoE
  • 500752-RX HDMI Over IP Decoder with PoE
