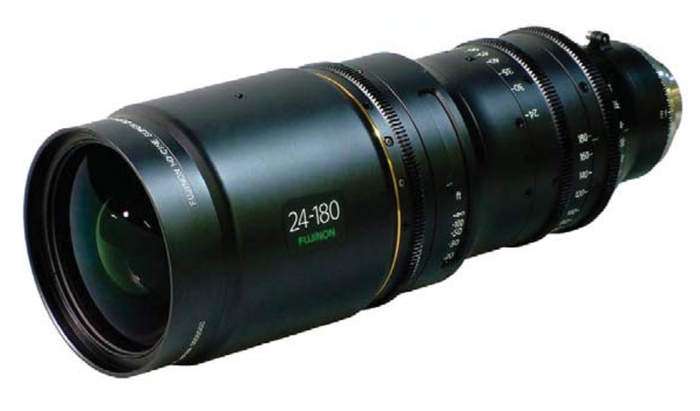

Fujinon HK7.5X24 24-180mm T2.6 Premier PL 4K+ Cine Zoom Lens

The Fujinon Premier 24-180 T2.6 is the high-quality general purpose member of the family of four 4K+ PL Cine zoom lenses. Identified by their gold band, Fujinon Premier PL 4K+ lenses consistently match each other superbly for focus, iris, zoom, color, contrast, and performance.

With outstanding resolution, uniform MTF and illumination across the entire image area at all focal lengths, all four Fujinon Premier PL 4K+ zooms have 136 mm front diameters. Focus, zoom, and iris gears are all in the same position—which speeds up lens changes, since follow focus accessories and lens motors can stay in the same position on the rods. Focus barrel rotation is a uniform 280 degrees on all four lenses.

A net and filter holder is included with each zoom. The aluminum ring slides onto the rear element cover of the lens. This makes mounting and changing nets much faster and cleaner. Extra net holders are available from your rental house or Fujifilm Optical Devices distributor.

Fujinon HK7.5X24 Features:

• 4K+ ultimate optical performance
• Focal lengths from 14.5 to 400mm are covered by the set of 4 zoom lenses
• Natural Bokeh (blur) thanks to the 9 round blade Iris
• Color Matching
• Compatible with Both Digital and Film Cameras*
• 200° focus rotation
• 136mm front lens diameters
• 0.8mm Cine gearing
• Uniformed sizes and shapes of design
• Available with Feet or Meter scale
• NOTE: *The lens is optimized by the use of an optical adaptor.

Fujinon HK7.5X24 Specifications:

• Lens: 24-180mm T2.6
• Focal length: 24-180mm
• Zoom ratio: 7.5x
• Max Iris: T2.6
• Min Iris: T22
• Iris Blades: 9
• Close focus (from image plane): 1.24m (4.1 ft)
• Object size at close focus (wide end)*: 24mm: 924 x 520mm
• Object size at close focus (tight end)*: 180mm: 119 x 67mm
• Angular field of view (wide end)*: 24mm: 53° 08’
• Angular field of view (tight end)*: 45mm: 7° 38’
• Front Diameter: 136mm
• Length: 405mm
• Weight: 19.7 lbs (8.9kg)
• Focus Rotation: 280°
• Zoom Rotation: 160°
• Model Number: HK7.5x24
• NOTE: Calculated for 16:9 Aspect ratio with S35 24.0 x 13.5mm gate.
