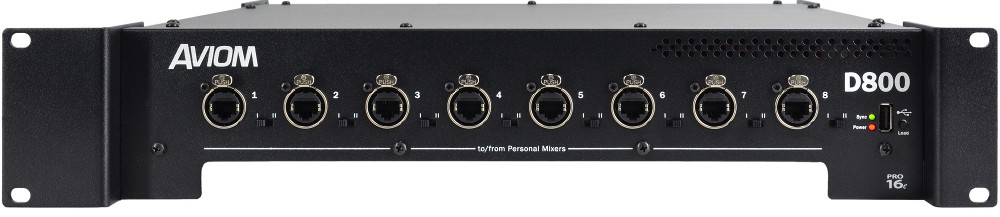

Aviom D800-DANTE
Dante A-Net Distributor

OUR PART #:  D800-DANTE

The D800-Dante A-Net Distributor from Aviom includes all of their D800's advanced features, then adds Danteā„¢ digital audio network connectivity.
Learn More
Our Price: $2,999.00
List Price: $3,350.00
You save 10%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Aviom D800-DANTE
Qty:
Please call for availability.

Similar Products

The D800-Dante A-Net Distributor from Aviom includes all of their D800's advanced features, then adds Danteā„¢ digital audio network connectivity. The D800-Dante is just what you need for connecting Aviom Personal Mixers to a Yamaha CL Series console with Rio I/O racks. The D800-Dante provides power and audio for up to 8 Aviom Personal Mixers.

The D800-Dante's network interface can directly connect to an existing Dante audio network. Sixty-four channels from Dante are routed to the Aviom Personal Mixers, and each A360 has the capability to select its own mix channels from that network. (Note that A-16II and A-16R Personal Mixers can only use channels 1-16.)

The D800-Dante has a standard Pro16e output, which outputs a 64-channel A-Net stream comprised of the Dante network's audio channels. This stream can be sent to any Pro16 or Pro16e device (standard Pro16 devices can only utilize channels 1-16), including a standard D800, which can then be used for connecting additional Aviom Personal Mixers.

Like the standard D800, the D800-Dante includes support for Network Mix Backā„¢, Ethernet for iOS devices, and seamless integration of both A360 and A-16II Personal Mixers.

Aviom D800-Dante A-Net Distributor Feature Highlights:

  • Distributes power and audio to up to eight A360, A320, A-16II, and A-16R Personal Mixers
  • One Pro16e A-Net In supports A-Net Bridge input from up to four synchronous Pro16 A-Net streams
  • Network Mix Back for streamlined connections to wireless IEM transmitters
  • Ethernet support for iOS devices over Wi-Fi
  • One Pro16e A-Net Out for thru connections
  • Heavy-duty locking connectors for all audio connections
  • Direct connectivity to a Danteā„¢ audio network
  • Supports up to 64 Dante network channels

Aviom D800-Dante A-Net Distributor Technical Specifications:

  • A-Net to/from Personal Mixers (front panel):
    • (8) locking RJ45 connectors, powered
    • 2-position switch (I/II) accommodates A-16II and A320 (|) and the bidirectional A360 Personal Mixer (||)
  • A-Net In or A-Net Bridge In: Accepts Pro16 or Pro16e A-Net; (1) locking RJ45 connector
  • A-Net Out (Rear panel): Pro16e A-Net; (1) locking RJ45 connector, unpowered
  • A-Net Mixes Out:
    • Pro16e A-Net;
    • (1) locking RJ45 connector, unpowered; Provides up to 16 channels of Network Mix Backā„¢ data from up to (8) A360 Personal Mixers
  • Ethernet: (1) RJ45 connector
  • LEDs: Power On (red); Sync (green)
  • USB: Used for firmware updates
  • A-Net Cables:
    • Front Panel Connections:
      • Shielded Cat-5e (or better) cable must be used to stay below the CISPR 22 Class B, ICES-003, and FCC 47 CFR Part 15 Class B emissions limits.
      • Unshielded Cat-5e cable may be used on all rear panel connections
  • Dante Primary I/O: EtherCon RJ45 connector
  • Dante Secondary I/O: EtherCon RJ45 connector
  • Stereo Link: (4) DIP Switch blocks; used to set up to 32 channel pairs as stereo links
  • LEDs: Error (red); Sync (green); 1GB Active (red); Network Activity (green)
  • Output Voltage for Personal Mixers:
    • 24VDC, 0.5 amp
    • Transmitted over the Cat-5e cable
  • Power Supply: Internal, universal switching type, IEC connector
  • Input Voltage:
    • 100-240VAC, 50-60Hz, 300W
    • Fuse - 250VAC~ T4AL
  • Dimensions: 19" W x 14.25" D x 3.5" (2U) H (482.6 x 362 x 88.9 mm)
  • Weight: 12.0 lbs (5.44 kg)
