Datavideo Corporation HS-600
SD Mobile Studio for Composite and DVI-D/I

OUR PART #:  HS600

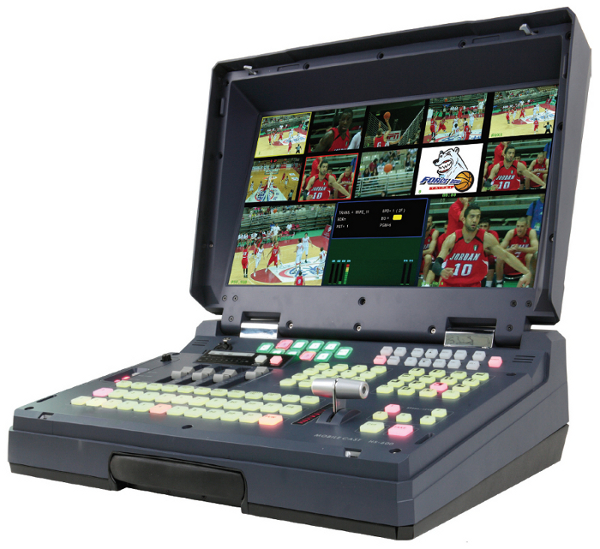

The SE-600 Switcher is available as a Mobile Studio from DataVideo, the HS-600 – a plug-and-play set inside a tidy case that can be carried by hand.
Learn More
Our Price: $5,200.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Datavideo Corporation HS-600
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The SE-600 Switcher is available as a Mobile Studio from DataVideo, the HS-600 – a plug-and-play set inside a tidy case that can be carried by hand. It is small enough to be carried onto most airplanes. The lightweight HS-600 Mobile Studio includes the features of the SE-600 Switcher, an eight-channel wired intercom and tally system, and a multi-view 17” high quality screen. The 600-Series’ switchers include a built-in three input integrated audio mixer with master gain.

Although live HD production is now popular in the world there are still lots of reasons for good quality SD based productions. Datavideo understands that its customers need a cost effective and flexible SD mobile studio. Their solution to this need is the Datavideo HS-600 mobile studio. The Datavideo HS-600 is built around the SE-600 switcher which has useful broadcast grade effect and functions as well as a simple four channel audio mixer. There are six Composite video inputs and two computer based DVI inputs. The HS-600 also offers a two PIP function and Luma key as well as Composite, DV* and SDI* program outputs. A Multi-image preview output provides combined Source, AUX, Preview and Program screens to one monitor. Other features include an Audio Peak Meter, a countdown timer and a dual Logo store. The HS-600 enables you to switch seamlessly between video and audio sources and blends high-quality digital content on the fly, even without external gen-lock, thanks to a built in time base corrector.

Designed to meet your needs whether you're working in Worship, Education, conducting a live Outside Broadcast or shooting inside a Production Studio.

NOTE: *Optional DV & SDI board – please check with your dealer.

Features:

Inputs:

  • Six Composite video inputs (BNC)
  • Two DVI computer based inputs
  • Two XLR balanced Audio inputs (Chl 1/L & Chl 2/R with MIC (48V Phantom Power) switch)
  • Two RCA / Phono Aux Audio Line level inputs

Outputs:

  • Multi-Image Preview with Video Sources, AUX1, AUX2, Preview and Program images
  • Multi-Image Preview includes menu selection area, countdown timer and audio level indicator
  • Multiple Program outputs (recorder/ program out/ streaming)
  • Two Auxiliary Composite outputs (User selectable)
  • Two 6 pin IEEE-1394 DV Program outputs (*optional board – please check)
  • Two SDI Program outputs (*optional board – please check)
  • Two XLR balanced Mixed Audio outputs (Stereo/Mono)
  • Two Line level RCA / Phone Mixed Audio outputs (Stereo/Mono)

Effects:

  • Choice of 14 Wipes with optional coloured border or A/B Dissolve
  • Single or Dual PIP window effects with optional coloured border
  • Luma key x1
  • LOGO: display up to two logos on the mixed program output
  • One frame still store memory as a source
  • SMPTE pattern out (colour bars) or selected background colour

Audio Mixer:

  • LED audio Peak Meter / audio-level indicator
  • Audio follows video button (A+V)
  • Headphone Audio Monitoring button for mixer, LCD panel or ITC-50 talkback audio
  • Audio faders for simple mixing of XLR and RCA inputs

Controls:

  • Rubber keys for quiet and confident operation
  • T-Bar for manual transitioning
  • Brightness, Contrast, Saturation and RGB correction
      - Special control keys
      -  Fade to solid colour (background colourcan be selected)
      -  Transition speed keys (speed of transitioncan be programmed)
      -  AUX source keys
  • RS422
  • GPO Trigger out: trigger the external video player with delayed transition effect
  • GPI trigger in
  • Tally output via ITC-50 belt packs
  • SD Card Slot: For software updates as well as storing Logos
  • Power Input: Locking 4pin XLR DC 12V / 3A

Specifications:

Video Inputs

  • Composite Video (BNC) x6
  • DVI-D x1
  • DVI-I x1

Outputs

  • Main outputs: Depending on OSD menu option either CVBS x2
  • Aux (1) outputs: CVBS x 2
  • Aux (2) outputs: CVBS x
  • If HS-600 fitted with Optional DV & SDI card
  • DV25 Outputs: IEEE-1394 x2 (Optional)
  • SDI (BNC) x2 (Optional)

Video Formats

  • Analogue Y.U.V. Video (SONY Betacam standard)
  • Y/C and Composite at CCIR601 NTSC/PAL
  • Optional SDI (Support SMPTE 259M-C 270Mbps)
  • Optional DV25 format at Y.U.V. 4:1:1 NTSC or Y.U.V. 4:2:0 PAL 25Mbps bitrate

IRE Black Level

  • Options 0 or 7.5 IRE (NTSC only)

Effects

  • Wipe and dissolve
  • PIP: 2 of PIP effects
  • Luma Key x1
  • LOGO: up to two logos displayed on the same screen
  • One Frame still store memory as a source
  • SMPTE pattern out or selected colour background

Preview output

  • 1 x DVI-D for Multi-Viewer with countdown timer and audio level indicator
  • Resolution is 1920x1080p
  • Preview output includes (6x CVBS in) + (2x AUX out) screen and (1x Preset)+ (1x Program) screen

Other Interface

  • Serial D-Sub 9-pin x1 for RS-422
  • Tally Output D-Sub 15-pin x2

Audio

  • Bandwidth 20~18KHz
  • S/N Ratio >70 dB (Line-in)
  • THD < 0.1%

Audio Mixer

  • Inputs:
      -  XLR with MIC (48V) Input x2
      -  RCA Line In x2
  • Outputs: XLR x2 , RCA x2
  • LED audio-level indicator (for audio monitoring)
  • Audio follows Video switch (A+V)
  • Operating Temperature: 0°C to 40°C (32°F to 102°F)
  • Humidity: 10% to 90% (non condensing)
  • Dimensions (Excluding protrusion): 425 mm x 98.93 mm x 389.24 mm / 16.73" x 3.90" x 15.32"
  • Weight:
      -  Gross packed incl. accessory kit 21 kg(46.3 lbs)
      -  Net unit only 8.6 kg (19 lbs)
  • Power: Input AC 100 ~ 240V Switching Adaptor, output DC 12V / 5A (60W)

What's in the Box:

  • SE-600 Switcher
  • 17? Monitor
  • ITC-100 Intercom System w/ 4x belt packs, headsets, and mics
  • Power Adapter 12V 5.0A DC 110/220
  • Power Cord
  • Instruction Manual
