C-Ducers CQS8P Stage & Rental Version Capacitive Transducer

OUR PART #: CQS8P

Copied to clipboard

C-ducer is a capacitive transducer with a flat frequency response extending well beyond that of human hearing. ...Read more

C-Ducers CQS8P Stage & Rental Version Capacitive Transducer Image 1
C-Ducers CQS8P Stage & Rental Version Capacitive Transducer
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

C-ducer is a capacitive transducer with a flat frequency response extending well beyond that of human hearing. Less than 1mm thick, the microphone is flexible, extremely light and will conform to curved surfaces such as a double bass or a drum shell. Exceptional transient response and high immunity to ambient sounds makes C-ducer a natural choice for amplifying many acoustic instruments, from pianos to drums.

Stereo Phantom Powered c-ducer system with 2 x 8" (20cm) C-ducer Tape Microphones. The C-ducer tapes have jack plugs and the pre amps have jack sockets. These units are useful for hire as damaged tapes can be easily replaced.

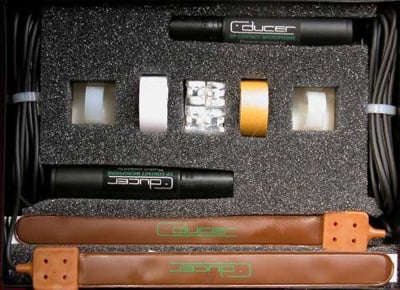

C-Ducers CQS8P Includes:

  • 2 x microphones
  • 2 x Pre amps
  • 1 x Spare reel Hi Low Tape
  • 1 x reel Hi Tac
  • 2 x Pre Amp Clips
  • 1 x Manual

C-Ducers CQS8P Specifications:

  • Output Impedance: 600 ohms
  • Output Type Frequency: XLR type balanced
  • Frequency Response: 25Hz to 50kHz
  • Output Voltage: 1.5V
  • S/N ratio: 83 dB/A
  • Distortion: Less than 0.05%
  • Power: DIN 45596 48V Phantom only
