Atlas Sound FAPSUB-1
8" 60-Watt 70v Subwoofer System


The FAPSUB-1 adds impressive low frequency response to any full range distributed system The FAPSUB-1 consists of a highly efficient 8"...
Learn More
Our Price: $215.99
List Price: $267.99
You save 19%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Atlas Sound FAPSUB-1
In Stock

Similar Products

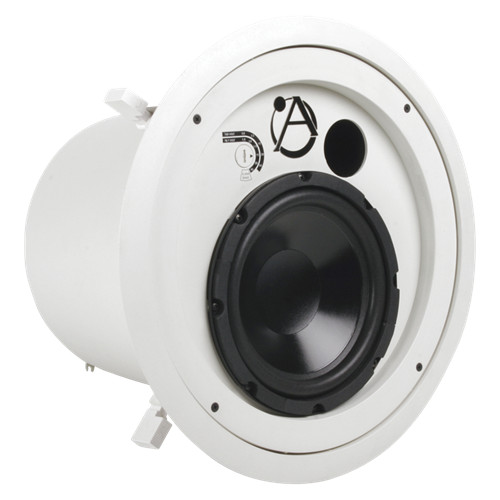

The FAPSUB-1 adds impressive low frequency response to any full range distributed system

The FAPSUB-1 consists of a highly efficient 8", 8 ohm subwoofer designed and built by Atlas Sound to work optimality in the FAPSUB-1 enclosure system. A highly efficient, 3-pole filtering network eliminates unwanted high frequencies from the woofer,while the 937 cubic inch, tuned and ported, deep drawn steel enclosure provides bass response down to 45Hz (┬▒10dB).

A special low saturation 70.7V/100V transformer is included with 1.9, 3.8, 7.5, 15, 30 and 60 watt primary taps (@70.7V) to match and balance the subwoofer with full range speakers without the need for separate amplification. A convenient front mounted selector switch allows tap selection without the need to remove the speaker from the ceiling. This tap selector switch also includes a transformer bypass setting for 8 ohm direct coupled applications.


  • Attractive grille and bezel matches aesthetics of other Atlas Sound FAP Series
  • Detachable, Phoenix style, locking, four-pole connector provides for easy daisy chain wiring
  • Easy installation in drop tile or sheetrock ceilings via C-ring/V-rail tile bridge and "dog leg" mounting system (included)
  • Front mounted tap selector switch for easy system tuning adjustments includes transformer bypass setting for 8 ohm direct coupled operation
  • High efficiency, passive crossover network eliminates the need for dedicated amplifier and/or active crossover
  • Low crossover point greatly reduces localization (ability of listener to identify the subwoofer location)
  • Uniquely designed, "easy access" input panel design allows for "thru" conduit runs using flexible or rigid conduit


  • Speaker Type In Ceiling Sub
  • Power Taps 1.9, 3.8, 7.5, 15, 30, 60 Watts & 8O
  • Frequency Response 45Hz to 120Hz (┬▒10dB)
  • Dispersion Omni
  • Sensitivity 89dB Average
  • Depth 12 3/4" (32.385 cm)
  • Diameter 15 3/4" (40.005 cm)
  • Shipping Weight 21.50 lbs (9.75 kgs)
  • Certified to Safety Listing UL 1480
