Intelix FLX-1616
16x16 Input to Output Modular Video Matrix Switcher

OUR PART #:  FLX-1616

Intelix FLEX Series matrices provide switching, scaling, format conversation, audio embedding and audio de-embedding all in a modular, card-based package.
Learn More

Call for price! Not available online.
List Price: $8,534.44

Similar Products

Intelix FLEX Series matrices provide switching, scaling, format conversation, audio embedding and audio de-embedding all in a modular, card-based package. Available in systems as small as 4x4 and as large as 32x32, FLEX matrices replace a rack full of traditional gear. Each system is fully compatible with other Intelix HDBaseT electronics, including twisted pair extenders, auto switching wallplates, and presentation switchers. FLEX series cards allow you to customize the matrix based on your unique application.

The Intelix FLX-1616 is a modular video matrix switcher that supports up to sixteen inputs and sixteen outputs. There are four input slots and four output slots; each modular input or output card supports up to four device connections. In addition to front panel control, the FLX-1616 can be controlled via IR, RS232, or TCP/IP connections.

The modular input cards include the following connections: HDMI, DVI, HDBaseT (with RS232 and bi-directional wide-band IR), and analog video with digital scaling via HD15 (VGA-UXGA, RGBHV, RGBS, RGsB, RsGsBs, component video, S-video and composite video). The modular output cards include the following connections: HDMI, DVI, and HDBaseT.

Stereo audio embedding is available on the HDMI input cards to allow analog audio to be inserted into the digital signal. Stereo audio can be de-embedded using the HDMI or HDBaseT output cards. Advanced EDID management restricts sources to output only stereo audio, while emulating the native video data from the attached displays. This system allows analog audio to be switched with the paired digital video, eliminating the requirement for an additional audio matrix switcher.

Clear button caps provide legible text on the front panel, which can be customized for each installation. IR, RS232, and TCP/IP provide a wide range of options for third party control systems. Ten programmable presets provide an efficient means of configuring the video and audio distribution for common usage patterns.

The FLX-1616 was designed with flexibility in mind. There are over 80 possible input card to output card combinations. Since the system is modular, the system integrator can customize their installation per their customer’s needs and not the limitations of available hardware.

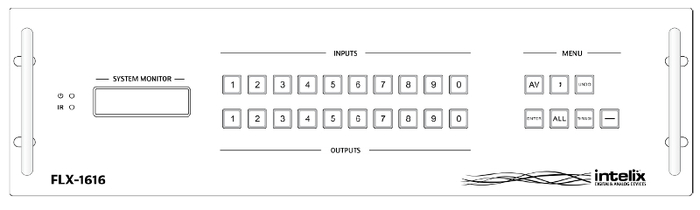

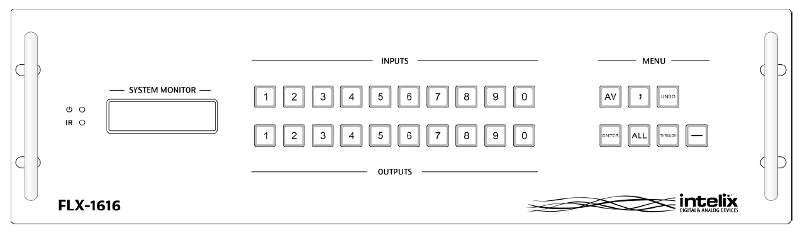

NOTE: Product shown in image is for illustrative purposes only. Actual product may vary in appearance.

Features:

  • 8x8, 16x16 and 32x32 card frames available
  • HDMI, HDBaseT, DVI, VGA, YPbPr, S-Video and Composite video input options
  • HDMI, HDBaseT, and DVI output options
  • Hot-swappable I/O cards
  • Any input type to any output type
  • RS232, IR, Ethernet and front panel control
  • Built-in EDID management
  • Redundant power supplies on larger models

Specifications:

I/O Connections

  • Supported Input Cards: FLX-BI4, FLX-DI4, FLX-HI4,FLX-RI4, FLX-HI4A
  • Supported Output Cards: FLX-BO4, FLX-DO4, FLX-HO4,FLX-BO4A, FLX-HO4A
  • Input and Output Card Securing Mechanism: Thumbscrew
  • Control, Rear Panel: RS232 via DE-9, TCP/IP via 8P8CConnector
  • Control, Front Panel: Push Button, IR

Chassis and Environmental

  • Material: Black Painted Aluminum
  • Dimensions: FLX-1616: 483mm x 356mm x 133mm (19 in. x14 in. x 5.25 in.)
  • Rack Spacing: FLX-1616: 3RU
  • Shipping Weight: FLX-1616: 7.71 kg (17lbs.)
  • Operating Temperature: 0° to +40° C (+32° to +104° F)
  • Operating Humidity: 20% to 90%, Non-condensing
  • Storage Temperature: -10° to +60° C (+14° to +140° F)
  • Storage Humidity: 20% to 90%, Non-condensing

Power, ESD, and Regulatory

  • Power Supply: 100-240VAC 50/60 Hz
  • Power Consumption: FLX-1616: 135 watts Fully Populated
  • ESD Protection: 15kV
  • Regulatory: CE, RoHS

Other

  • Warranty: 2 years
  • Diagnostic Indicators: LCD output status and power LED
  • Included Accessories: Installation Guide, IR Remote,RS232 Cable, Power Cable, Modular Metal Blank, Rubber Feet (4 ea) and IntelixPocket Screwdriver.
  • ESD Protection: 15kV

NOTE: Distances and picture quality may be affected by cable grade, cable quality, source and destination equipment, RF and electrical interference, and cable patches. Intelix specifications are based on straightthrough cabling with standard-grade Cat 5e unless noted otherwise.
